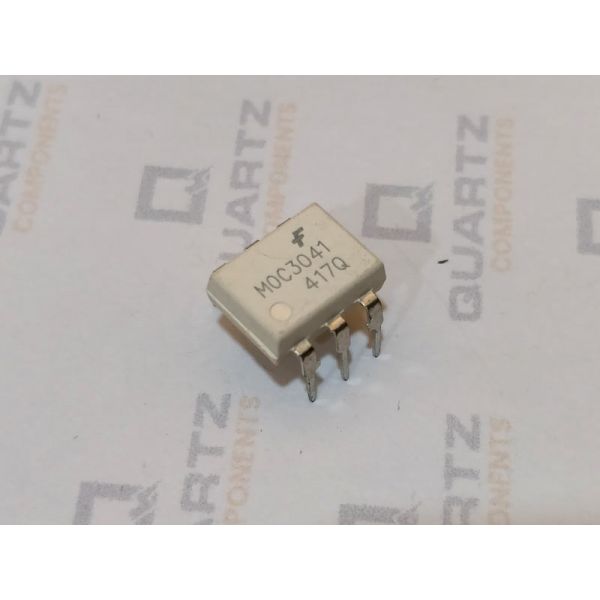

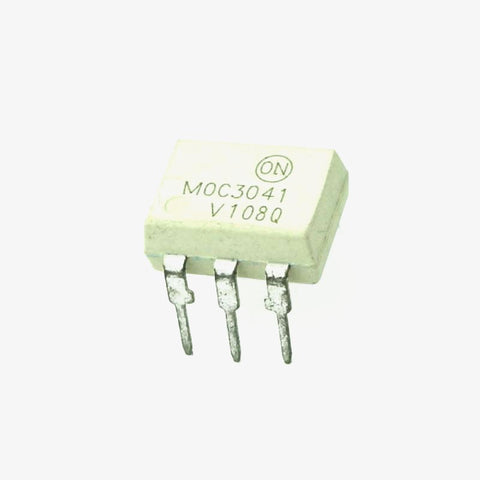

MOC3041 Zero Cross Optoisolator Triac Driver IC MOC3041 Zero Cross Optoisolator Triac Driver IC

QC0096

65 In stock

Rs. 22.00
-
+
Rs. 22.00
(inc. GST)
[Delivery: 2 to 5 days]

The MOC3041 is an optocoupler IC consisting of an infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a Zero Voltage Crossing bilateral TRIAC driver. It can be used for high-load AC switching. This zero-crossing optocoupler IC will be able to detect the zero volts from the AC and will turn on and off the TRIAC of the IC and this will protect the external load from damaging itself and also from switching surges of other circuits.


Product Description of MOC3041 Zero Cross Opto-isolator Triac Driver IC

MOC3041 Zero Cross Optoisolator Triac Driver IC



Features of MOC3041 Zero Cross Opto-isolator Triac Driver IC

  • Opto-isolator with Zero-Crossing Triac Driver
  • Input IR Diode: Forward Current - 50mA; Reverse Voltage - 6V;  Power Dissipation-  120mW
  • Output Photo TRIAC: Off-State Output Terminal Voltage - 400V ; Forward Current (Peak) - 1A; Power Dissipation - 150mW
  • High Isolation Voltage (5.3kV RMS,7.5kVPK )
  • 400V Peak Blocking Voltage
  • Simplifies logic control of 115 VAC power
  • Operating Temperature: -40°C to 100 °C
  • All electrical parameters 100% tested



Additional Resources

Package Contents

1 x MOC3041 Zero Cross Opto-isolator Triac Driver IC

The MOC3041 is an optocoupler IC consisting of an infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a Zero Voltage Crossing bilateral TRIAC driver. It can be used for high-load AC switching. This zero-crossing optocoupler IC will be able to detect the zero volts from the AC and will turn on and off the TRIAC of the IC and this will protect the external load from damaging itself and also from switching surges of other circuits.


Product Description of MOC3041 Zero Cross Opto-isolator Triac Driver IC

MOC3041 Zero Cross Optoisolator Triac Driver IC



Features of MOC3041 Zero Cross Opto-isolator Triac Driver IC

  • Opto-isolator with Zero-Crossing Triac Driver
  • Input IR Diode: Forward Current - 50mA; Reverse Voltage - 6V;  Power Dissipation-  120mW
  • Output Photo TRIAC: Off-State Output Terminal Voltage - 400V ; Forward Current (Peak) - 1A; Power Dissipation - 150mW
  • High Isolation Voltage (5.3kV RMS,7.5kVPK )
  • 400V Peak Blocking Voltage
  • Simplifies logic control of 115 VAC power
  • Operating Temperature: -40°C to 100 °C
  • All electrical parameters 100% tested



Additional Resources

Package Contents

1 x MOC3041 Zero Cross Opto-isolator Triac Driver IC
