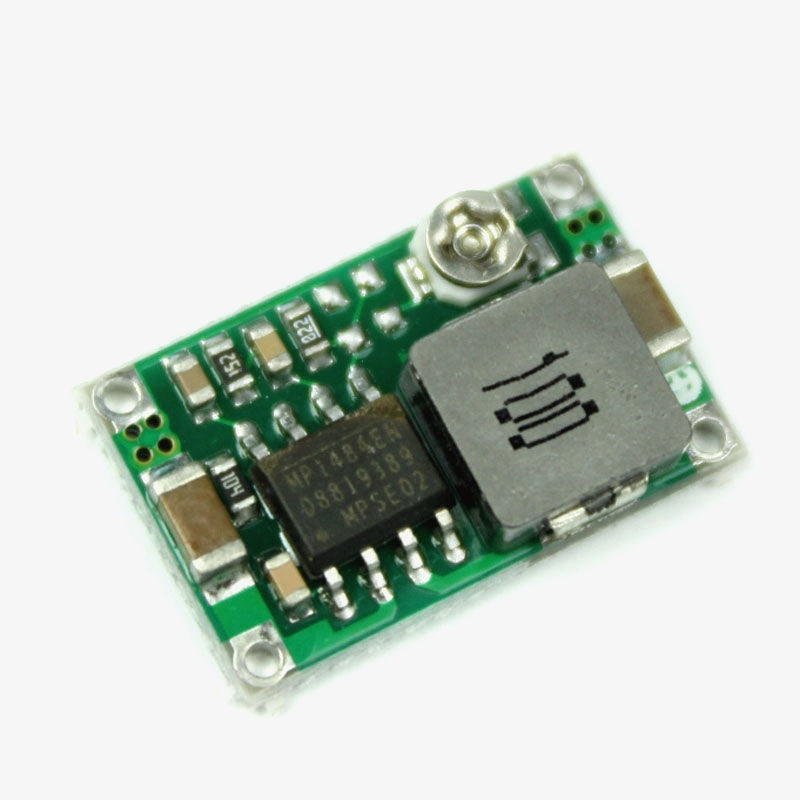

Mini 360 DC-DC Step Down Buck Converter Power Module Mini 360 DC-DC Step Down Buck Converter Power Module

QC0836

29 In stock

Rs. 49.00
-
+
Rs. 49.00
(inc. GST)
[Delivery: 2 to 5 days]

Mini 360 Step-Down Buck Converter Power Module that uses 4.75V-23V input and 1.0V to 17V output that is configurable using a simple onboard potentiometer. The continuous output current is 1.8A where 3A is the peak or surge current. It uses an integrally melded power inductor that is controlled by a 340kHz switching frequency. It is 95% efficient when driven by a 5V input source and set as 3.3V output at 200mA. This Module provides 30mV output ripple at no load with 0.5% load and 2.5% voltage regulation.


Mini 360 DC-DC Buck Converter Pinout:

Mini-360

Specification: -

  • Regulator IC  :  MPS MP2307DN
  • Input Voltage Range :  4.75 – 23VDC
  • Selectable Output Voltage   :  1.0 – 17VDC
  • Rated Current:  1.8A Continuous and 3A Peak Current
  • Maximum conversion efficiency:    95% (5Vin, 3.3Vout ~200mA output)
  • Switching Frequency: 340kHz
  • No-load output Ripple:  30mV peak to peak
  • Load Regulation: 0.5%
  • Voltage Regulation   :  2.5%
  • Operational Temperature Range:   -40 to +85°C


Mini 360 DC-DC Buck Converter Dimension and footprint:

Buck-Converter-Dimension

Example Projects on Mini 360 DC-DC Buck Converter:

MIni360 Review

Package Contains

1x 360 Step-Down Buck Converter Module

Mini 360 Step-Down Buck Converter Power Module that uses 4.75V-23V input and 1.0V to 17V output that is configurable using a simple onboard potentiometer. The continuous output current is 1.8A where 3A is the peak or surge current. It uses an integrally melded power inductor that is controlled by a 340kHz switching frequency. It is 95% efficient when driven by a 5V input source and set as 3.3V output at 200mA. This Module provides 30mV output ripple at no load with 0.5% load and 2.5% voltage regulation.


Mini 360 DC-DC Buck Converter Pinout:

Mini-360

Specification: -

  • Regulator IC  :  MPS MP2307DN
  • Input Voltage Range :  4.75 – 23VDC
  • Selectable Output Voltage   :  1.0 – 17VDC
  • Rated Current:  1.8A Continuous and 3A Peak Current
  • Maximum conversion efficiency:    95% (5Vin, 3.3Vout ~200mA output)
  • Switching Frequency: 340kHz
  • No-load output Ripple:  30mV peak to peak
  • Load Regulation: 0.5%
  • Voltage Regulation   :  2.5%
  • Operational Temperature Range:   -40 to +85°C


Mini 360 DC-DC Buck Converter Dimension and footprint:

Buck-Converter-Dimension

Example Projects on Mini 360 DC-DC Buck Converter:

MIni360 Review

Package Contains

1x 360 Step-Down Buck Converter Module
