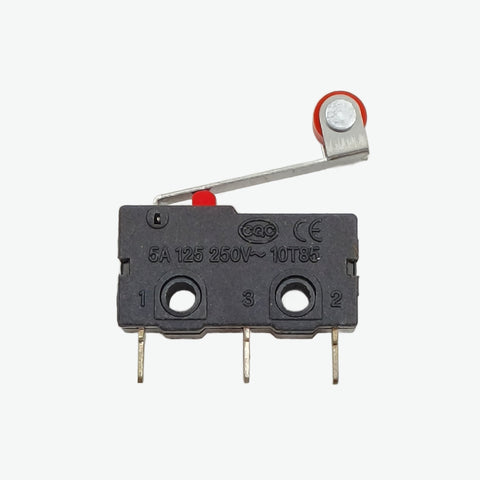

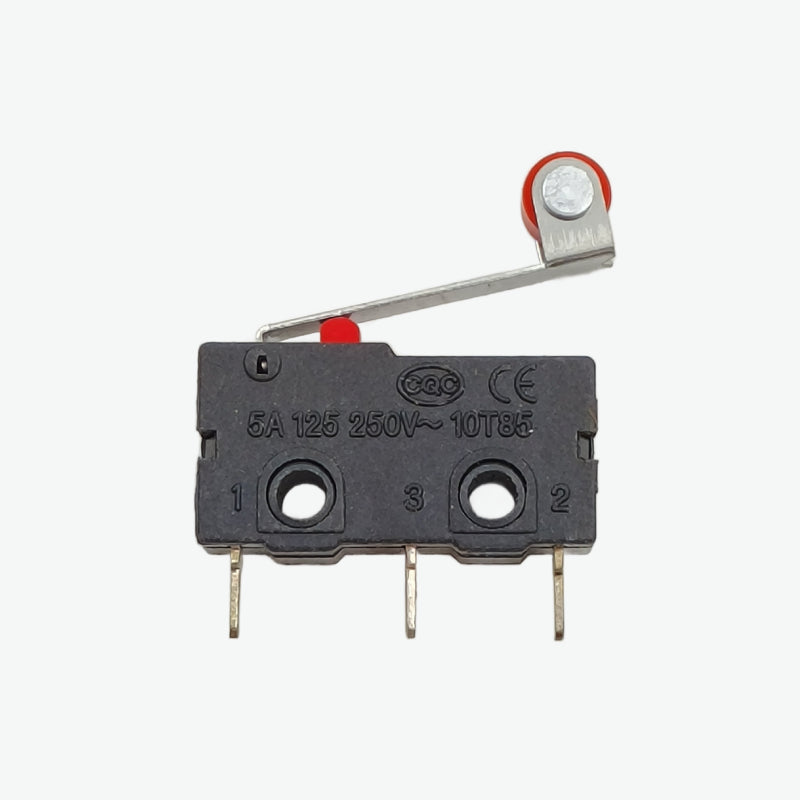

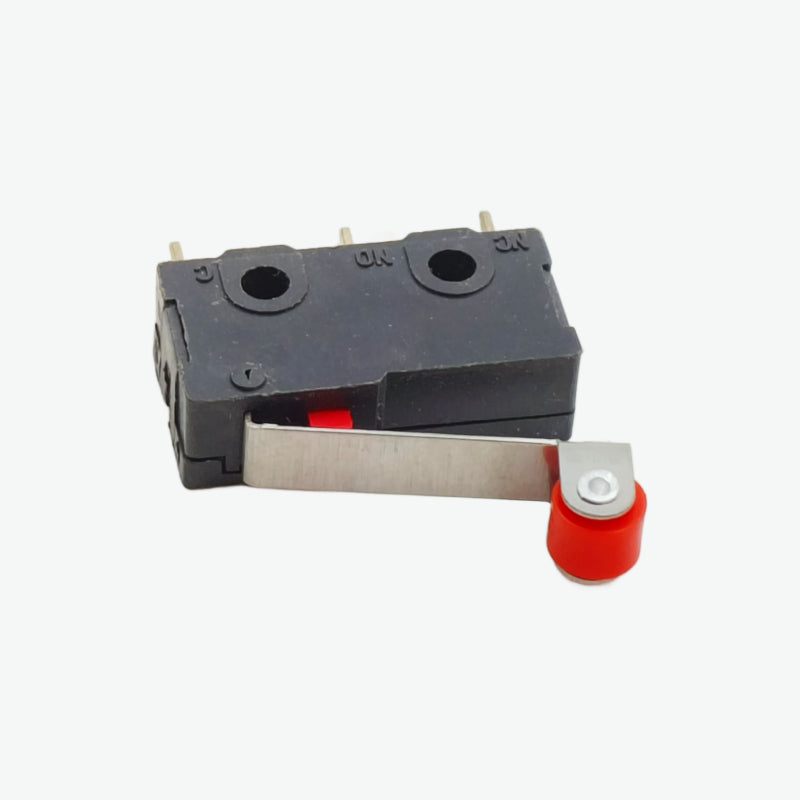

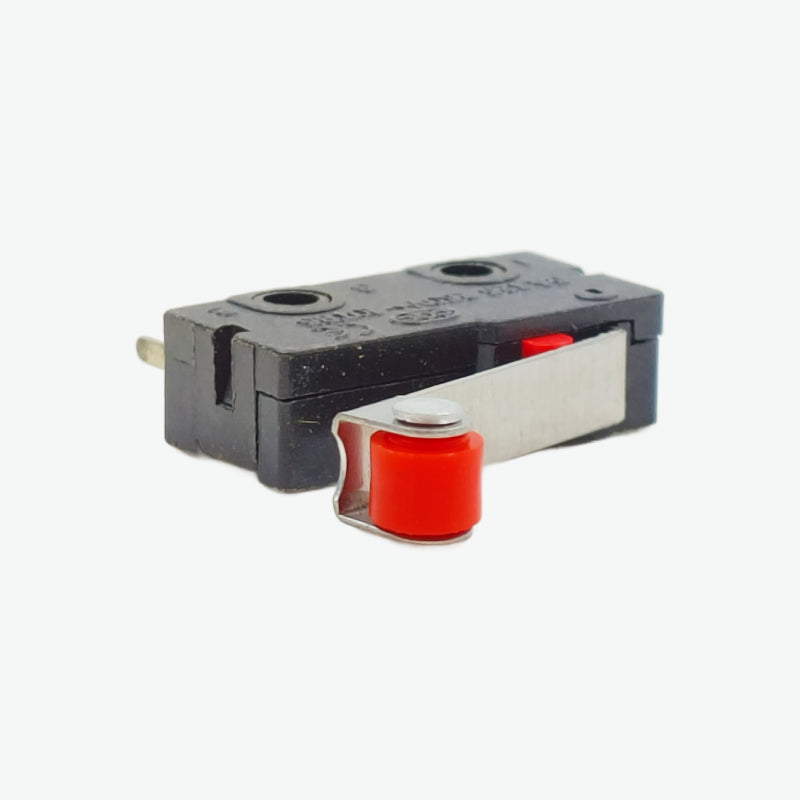

3 Pin Momentary Roller Lever Arm Micro Limit Switch AC 250V 5A SPDT (1NO + 1NC)
SKU:
CNX-QC3547
Availability:
19
In Stock
- Rs. 29.00
- Rs. 29.00
- Unit price
- per
Subtotal:
Rs. 29.00
Description
xThe 3-Pin Momentary Roller Lever Arm Micro Limit Switch is a compact, high-precision mechanical switch designed for accurate position detection and limit control in industrial and automation applications. This SPDT (Single Pole Double Throw) micro switch offers both Normally Open (NO) and Normally Closed (NC) contacts, making it versatile for various electrical and mechanical setups.
With a momentary action mechanism, the switch activates only when the roller lever is pressed, automatically resetting once released. The durable plastic housing and metal roller arm provide reliable operation and long service life even under continuous use. Rated for AC 250V 5A, it is ideal for controlling relays, motors, and circuits in machinery, robotics, and DIY electronics.
Features:
- Momentary Action - Switch activates when pressed and resets upon release.
- SPDT Configuration (1NO + 1NC)
- High-quality plastic body with metal roller lever for extended lifespan.
- 3-pin terminal design for quick wiring connections.
- Engineered for repeated operations with high reliability.
Specifications:
|
Product Type |
Micro Limit Switch with Roller Lever Arm |
|
Switch Type |
Momentary (Snap Action) |
|
Contact Type |
SPDT (1NO + 1NC) |
|
No. of Terminals |
3 Pins |
|
Rated Voltage |
250V AC |
|
Rated Current |
5A |
|
Actuator Type |
Roller Lever Arm |
|
Mounting Type |
Panel / Screw Mount |
|
Housing Material |
High-Strength Plastic |
|
Lever Material |
Metal with Roller Tip |
|
Contact Resistance |
≤ 100mΩ |
|
Insulation Resistance |
≥ 100MΩ (at 500V DC) |
|
Operating Force |
Approx. 150–200gf |
|
Operating Temperature |
-25°C to +80°C |
Package Includes:
1 × 3-Pin Momentary Roller Lever Arm Micro Limit Switch (AC 250V 5A SPDT)
