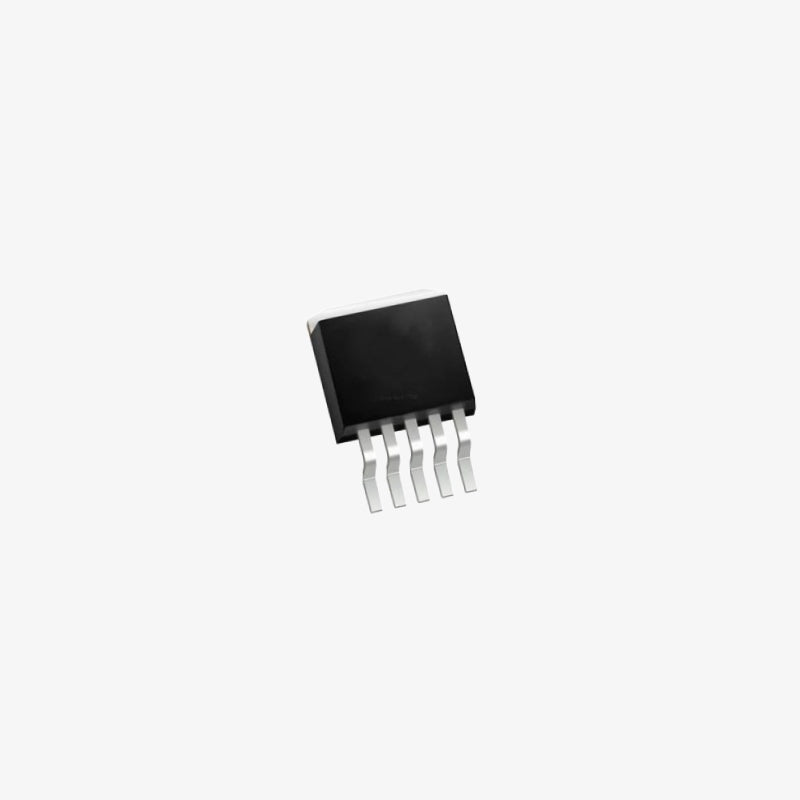

MIC29302 LDO Voltage Regulator IC - TO-263 SMD Package

QC2415
50 In stock
Rs. 74.00 (Exc. GST)
Rs. 74.00

The MIC29302 is a low dropout (LDO) voltage regulator IC designed to provide a stable output voltage with high current capability. It is housed in a TO-263 surface-mount device (SMD) package, making it suitable for high-density circuit board layouts. Here’s a detailed description of the product:

Key Features:

  • Type: Low Dropout (LDO) Voltage Regulator
  • Package: TO-263 (Surface Mount Device)
  • Output Voltage: Adjustable from 1.24V to 26V
  • Maximum Output Current: 3A
  • Dropout Voltage: Typically 350mV at 3A
  • High Accuracy: ±2% output voltage tolerance
  • Low Quiescent Current: Typically 4mA
  • Thermal Overload Protection: Protects the IC from overheating
  • Short-Circuit Protection: Protects against excessive current draw

Applications:

  • Power Supplies: Suitable for use in regulated power supply circuits.
  • Industrial Equipment: Used in various industrial applications requiring stable voltage.
  • Consumer Electronics: Ideal for providing stable voltage in consumer electronic devices.
  • Telecommunication: Useful in telecommunication equipment requiring regulated voltage.
  • Battery-Powered Devices: Suitable for battery-powered applications due to low dropout voltage.

Pin Configuration:

  • Pin 1 (Adj/GND): Adjust pin for setting the output voltage (ground for fixed output versions)
  • Pin 2 (Vout): Regulated output voltage
  • Pin 3 (Vin): Input voltage
  • Tab: Internally connected to Pin 2 (Vout) for heat dissipation

Electrical Characteristics:

  • Input Voltage (Vin): Up to 26V
  • Output Voltage (Vout): 1.24V to 26V (adjustable)
  • Output Current (Iout): 3A max
  • Dropout Voltage: 350mV typical at 3A
  • Quiescent Current: 4mA typical
  • Output Voltage Tolerance: ±2%
  • Line Regulation: 0.015%/V typical
  • Load Regulation: 0.1% typical

Note: Product images are for illustrative purposes only and may differ from the actual product.
