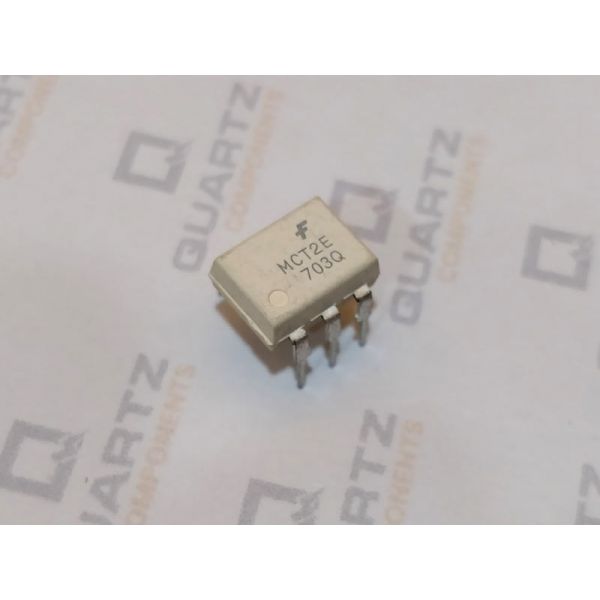

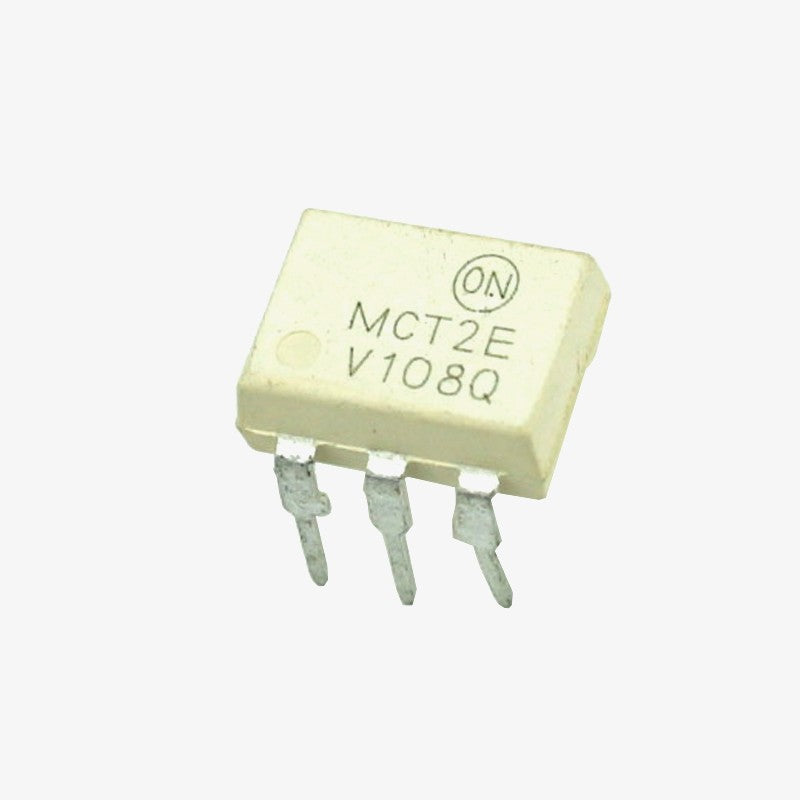

MCT2E Optocoupler/Phototransistor IC MCT2E Optocoupler/Phototransistor IC

QC0094

29 In stock

Rs. 15.00
-
+
Rs. 15.00
(inc. GST)
[Delivery: 2 to 5 days]

Optocoupler is an important component in electronics and here is MCT2E that is a hugely popular optocoupler available in quartz components with such great price. As like other optocouplers, it has an infrared emitting diode that optically controls a phototransistor. The forward voltage of the diode is typically 1.25V at 20mA of forward current. It is packaged in a 6-pin DIP Package.

Since it is the MCT2E, it has the CTR value of CTR 60 (> 20) % at 5mA forward current with 10V of collector-emitter voltage. The phototransistor supports a maximum of 50mA collector current.


MCT2E pinout:

MCT2E



MCT2E Specifications

Specification:

  • Package/Case  : DIP-6
  • Mounting Type :  TH
  • CTR  :  60% at IF=10mA ,VCE=10V
  • Operating Temperature Range (°C)  :  -55 to 100
  • Maximum Collector Emitter Voltage :  70 V
  • Maximum Collector Current  :  50 mA
  • Isolation Voltage  :  5300 Vrms
  • Vf - Forward Voltage  :  1.25 V
  • Vr - Reverse Voltage  :  6 V
  • Pd - Power Dissipation  :  200 mW
  • Number of Channels  :  1 Channel


MCT2E Applications:

  1. SMPS
  2. Isolated Data input
  3. Measurements
  4. Communication between two different voltage level circuits
  5. Hazardous interfaces where manual interventions required
  6. High power Relay driving

MCT2E Dimension and footprint:

MCT2E Dimension and footprint

Example Projects on MCT2E:

MCT2E working

Additional Resources:

MCT2E Datasheet



Package Contains

1x MCT2E
