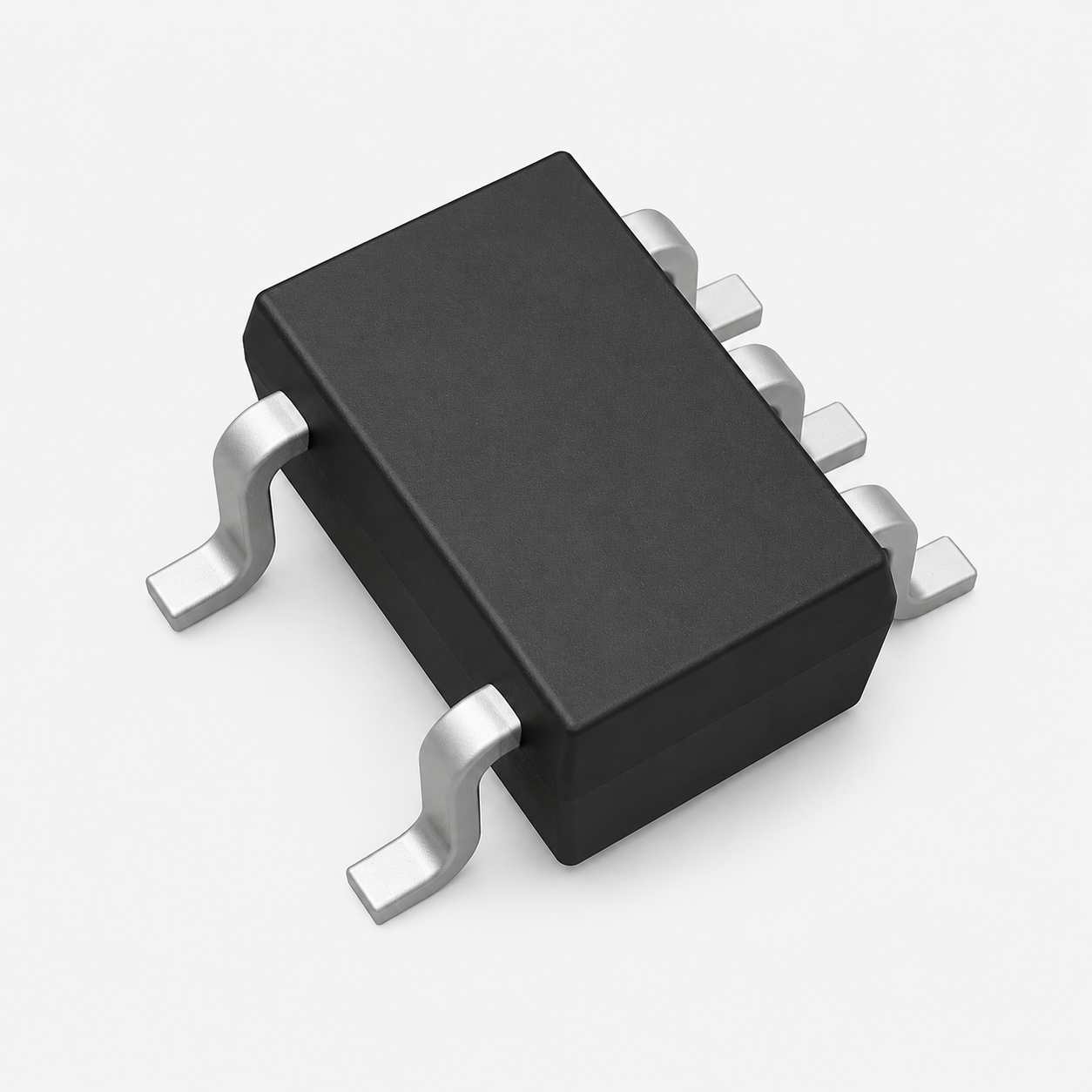

MCP6561T-E OT Microchip 1.8V to 5.5V High Speed Analogue Comparator IC - SOT-23 Package
SKU:
SMD-QC5920
Availability:
100
In Stock
-
- Rs. 48.00
- Unit price
- per
Subtotal:
Rs. 48.00
Description
xMCP6561T-E/OT 1.8V to 5.5V High Speed Analogue Comparator IC - SOT-23 Package is a low-power high-speed analogue comparator featuring rail-to-rail input operation, CMOS/TTL-compatible push-pull output, and fast propagation delay. Operating from a 1.8V to 5.5V supply while consuming only 100µA typical quiescent current, it is ideal for battery-powered devices, sensor interfaces, voltage monitoring, window comparators, RC timers, alarm systems, and industrial control applications.
MCP6561T-E OT 1.8V to 5.5V High Speed Analogue Comparator IC Datasheet
Features:
- Wide 1.8V to 5.5V Supply Voltage
- High Speed Push-Pull Comparator
- Rail-to-Rail Input Operation
- CMOS/TTL Compatible Output
- Low 100µA Typical Quiescent Current
- Fast 49ns/56ns Typical Propagation Delay
- Internal Input Hysteresis
- Low Input Offset Voltage
- High Input Impedance
- Low Power Consumption
- RoHS Compliant
Specifications:
| Parameter | Value |
|---|---|
| Product Type | High Speed Analogue Comparator IC |
| Part Number | MCP6561T-E/OT |
| Package | SOT-23-5 |
| Supply Voltage | 1.8V ~ 5.5V |
| Output Type | Push-Pull |
| Input Type | Rail-to-Rail |
| Propagation Delay | 49ns / 56ns (Typ.) |
| Quiescent Current | 100µA (Typ.) |
| Input Offset Voltage | ±3mV (Typ.) |
| Input Bias Current | 1pA (Typ.) |
| Toggle Frequency | 4MHz (Typ.) |
| Operating Temperature | -40°C to +125°C |
| RoHS Compliance | Yes |
Pin Configuration:
| Pin | Name | Description |
|---|---|---|
| 1 | OUT | Comparator Output |
| 2 | VSS | Ground |
| 3 | IN+ | Non-Inverting Input |
| 4 | IN− | Inverting Input |
| 5 | VDD | Supply Voltage |
Also Check These Out:
AN7112 Audio Power Amplifier IC
Package Includes:
1 x MCP6561T-E/OT 1.8V to 5.5V High Speed Analogue Comparator IC - SOT-23 Package
