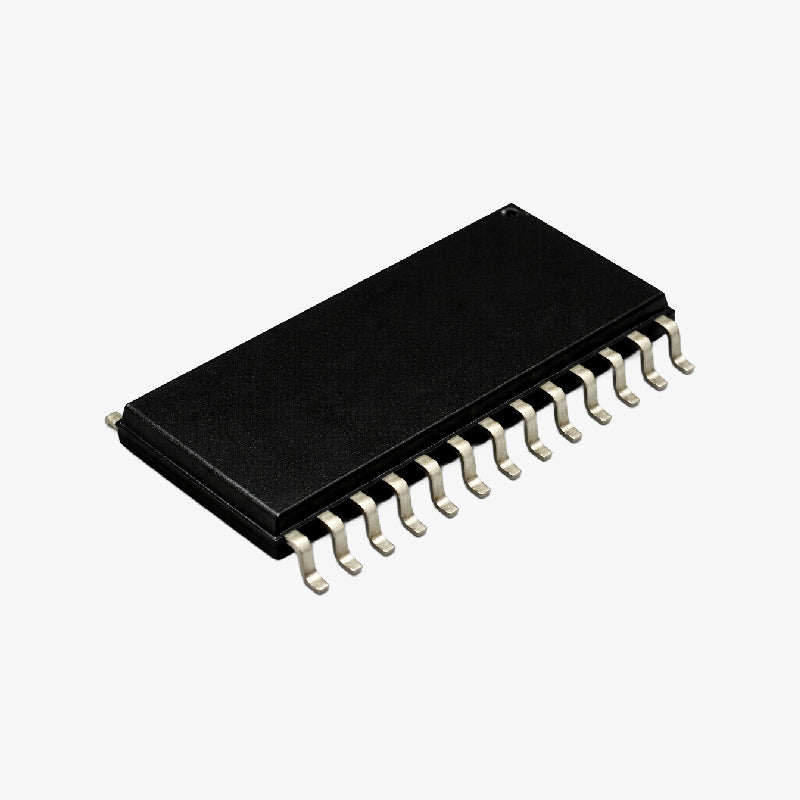

SOIC-24 SMD Package
SSOP-28 SMD Package
SOIC-24 SMD Package
SSOP-28 SMD Package
MCP23017T E/SO Microchip-1.8 V to 5.5 V 16-bit Expander IC - SOP-28 Package

Free Shipping

Free standard shipping on all orders over INR 500

COD Available

On all the orders above INR 500

Free Returns

*Terms & Conditions Applied

Customer Assistance

Contact Us : 0141-4946677 or support@quartzcomponents.com

MCP23017T E/SO Microchip-1.8 V to 5.5 V 16-bit Expander IC - SOP-28 Package

Brand: Microchip
SKU: CMP-QC5924
Availability: 50 In Stock
Rs. 178.00
Subtotal: Rs. 178.00
Description
Description
x

MCP23017T-E/SO 1.8V ~ 5.5V 16-Bit I/O Expander IC - SOP-28 Package is a 16-bit General-Purpose Input/Output (GPIO) expander that communicates through an I²C interface, allowing microcontrollers to add up to 16 programmable digital I/O pins using only two communication lines. Operating from 1.8V to 5.5V, it features configurable interrupts, internal pull-up resistors, polarity inversion, and hardware addressing, making it an excellent choice for Arduino, ESP32, Raspberry Pi, STM32, industrial automation, and embedded control applications.

MCP23017T E/SO 1.8 V~ 5.5 V 16-bit Expander IC - SOP-28 Package Datasheet

Features:

  1. 16-Bit General Purpose I/O Expander
  2. High-Speed I²C Serial Interface
  3. Wide 1.8V to 5.5V Operating Voltage
  4. 16 Individually Configurable GPIO Pins
  5. Two 8-Bit I/O Ports (GPIOA & GPIOB)
  6. Configurable Input or Output Direction
  7. Internal Weak Pull-Up Resistors
  8. Interrupt-on-Change Functionality
  9. Dual Interrupt Outputs (INTA & INTB)
  10. Input Polarity Inversion Register
  11. Supports Up to 8 Devices on One I²C Bus
  12. External Hardware Reset Pin
  13. Low Standby Current
  14. Fast Data Transfer up to 1.7MHz
  15. CMOS Compatible Inputs and Outputs
  16. Industrial Temperature Range
  17. RoHS Compliant

Specifications:

Parameter Value
Product Type 16-Bit GPIO Expander IC
Part Number MCP23017T-E/SO
Package SOP-28 (Wide)
Interface I²C
Supply Voltage 1.8V ~ 5.5V
GPIO Pins 16
Port Configuration 2 × 8-Bit Ports
I²C Clock Speed 100kHz / 400kHz / 1.7MHz
Address Pins A0, A1, A2
Maximum Devices on Bus 8
Interrupt Outputs INTA & INTB
Internal Pull-Up Resistors Yes
Input Polarity Inversion Yes
Hardware Reset Yes
Output Latch Yes
Standby Current 1µA (Max.)
Operating Temperature -40°C to +85°C
Mounting Type Surface Mount
RoHS Compliance Yes


Pin Configuration:

Pin Name Description
1 GPA0 GPIO Port A Bit 0
2 GPA1 GPIO Port A Bit 1
3 GPA2 GPIO Port A Bit 2
4 GPA3 GPIO Port A Bit 3
5 GPA4 GPIO Port A Bit 4
6 GPA5 GPIO Port A Bit 5
7 GPA6 GPIO Port A Bit 6
8 GPA7 GPIO Port A Bit 7
9 VSS Ground
10 A0 I²C Address Select
11 A1 I²C Address Select
12 A2 I²C Address Select
13 RESET Hardware Reset
14 INTB Interrupt Output B
15 INTA Interrupt Output A
16 SDA I²C Data
17 SCL I²C Clock
18 VDD Supply Voltage
19 GPB0 GPIO Port B Bit 0
20 GPB1 GPIO Port B Bit 1
21 GPB2 GPIO Port B Bit 2
22 GPB3 GPIO Port B Bit 3
23 GPB4 GPIO Port B Bit 4
24 GPB5 GPIO Port B Bit 5
25 GPB6 GPIO Port B Bit 6
26 GPB7 GPIO Port B Bit 7
27 NC No Connection
28 NC No Connection


Also Check These Out:

AN7112 Audio Power Amplifier IC

TDA2822M Amplifier IC

HT12D (RF Decoder) IC

Package Includes:

1 x MCP23017T-E/SO 1.8V ~ 5.5V 16-Bit I/O Expander IC - SOP-28 Package
