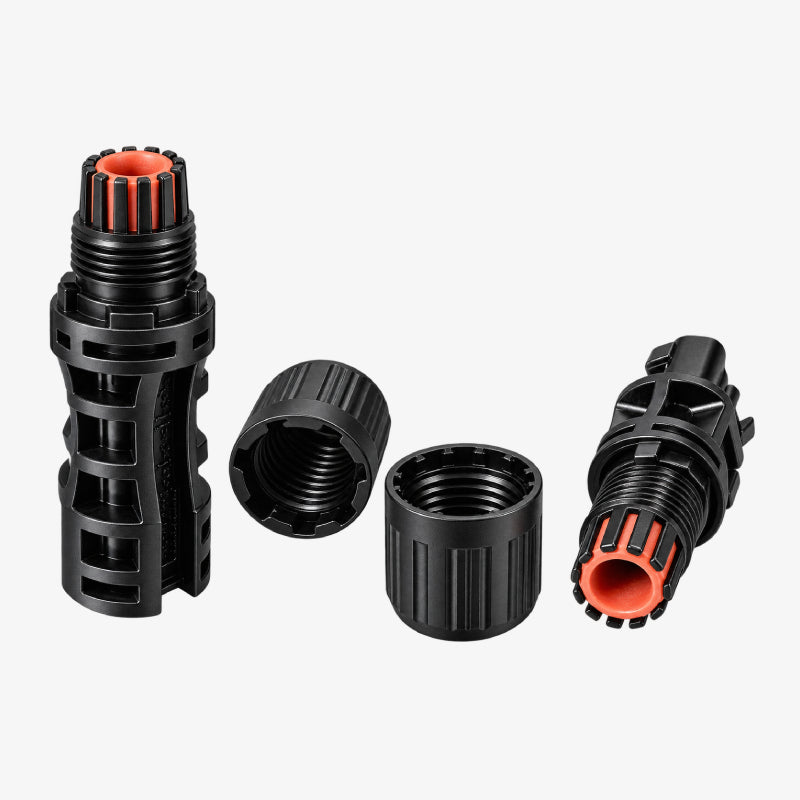

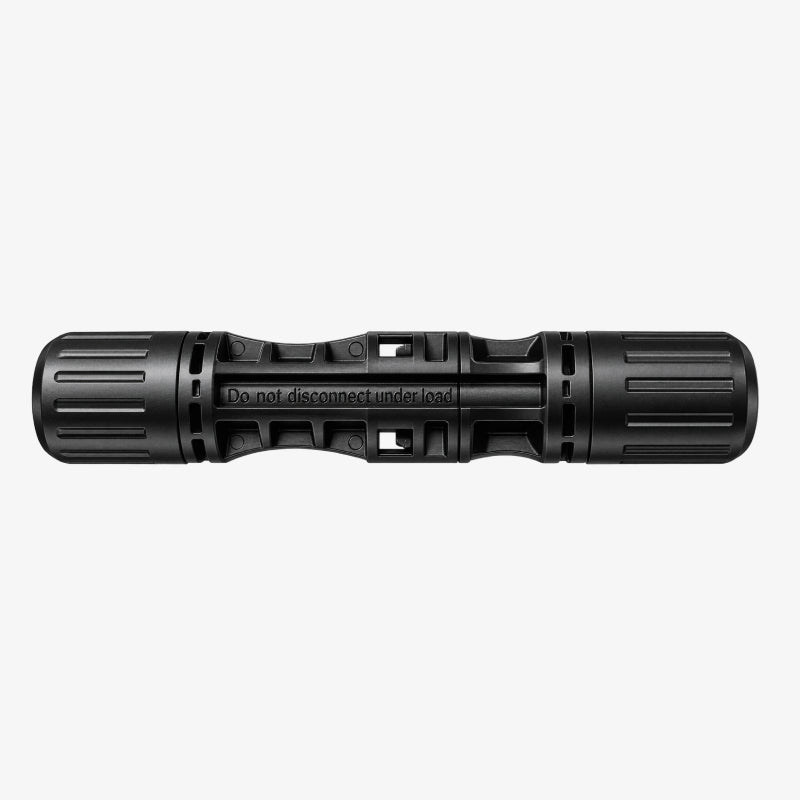

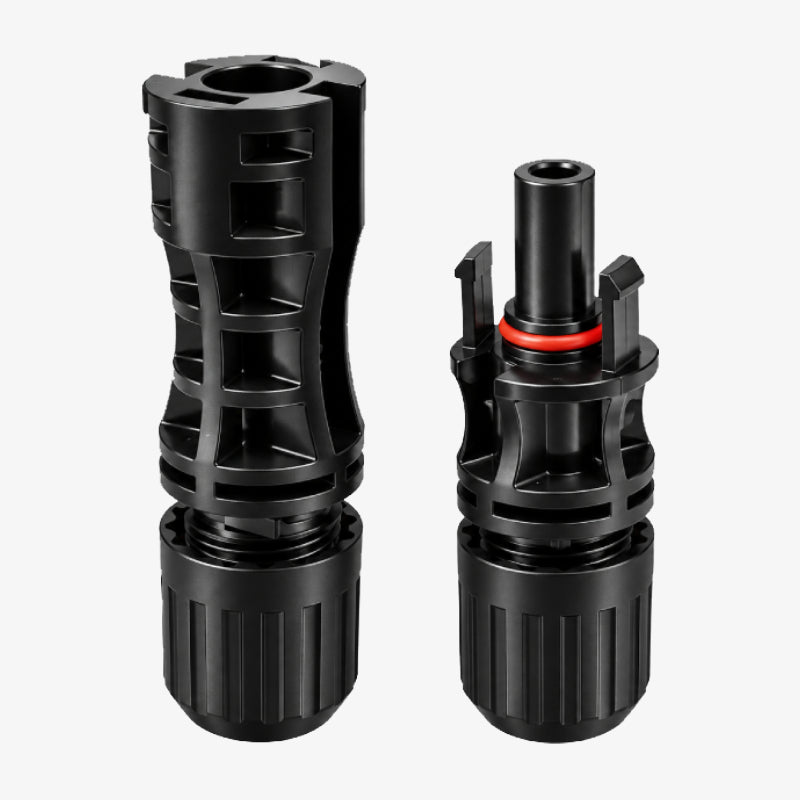

MC4 Solar Connector Pair – 1500V DC, 30A, Male-Female is designed for secure electrical connections in photovoltaic (PV) systems. It features tin-plated copper contacts, a crimp connection system, and a PPO/PC insulating housing. The connector supports a rated voltage of 1500V DC and a rated current of 30A, with a higher current rating of 45A when used with solid pins. Its IP67 protection rating when properly mated helps protect against dust and temporary water immersion, making it suitable for compatible outdoor solar installations.
| Specification | Value |
|---|---|
| Product Type | Solar MC4 Connector Pair |
| Connector Configuration | Male-Female |
| Rated Current | 30A (45A with solid pins) |
| Rated Voltage | 1500V DC |
| Test Voltage | 6000V AC, 50Hz for 1 minute |
| Overvoltage Category / Pollution Degree | CAT III / 2 |
| Contact Resistance | 1mΩ |
| Contact Material | Copper, tin-plated |
| Insulation Material | PPO/PC |
| Degree of Protection | IP2X / IP67 |
| Flame Class | UL94 V-0 |
| Safety Class | Class II |
| Suitable Cable Outer Diameter | 4.5–8.5mm |
| Compatible Cable Cross-Section | 2.5–6.0mm² |
| Insertion Force | ≤50N |
| Withdrawal Force | ≥50N |
| Connection System | Crimp connection |
| Operating Temperature | -40°C to +125°C |
XT-60 Male to Female Connector with 14AWG Silicone Wire
XT-60 Male Connector to DC Jack Male & Female Pair Connector

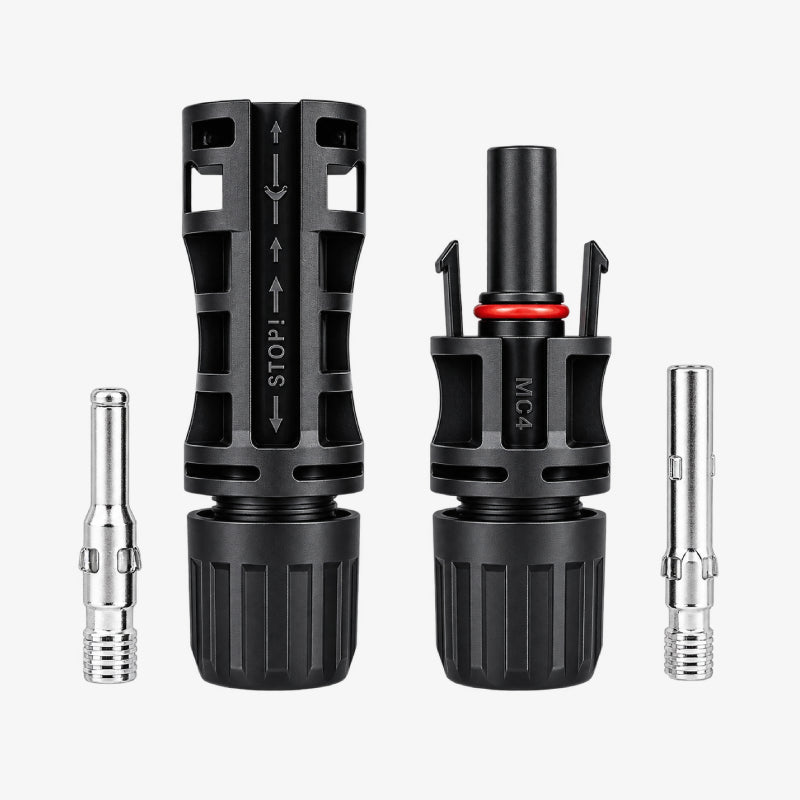

1 × MC4 Male Solar Connector
1 × MC4 Female Solar Connector
2 × Metal Crimp Contacts
