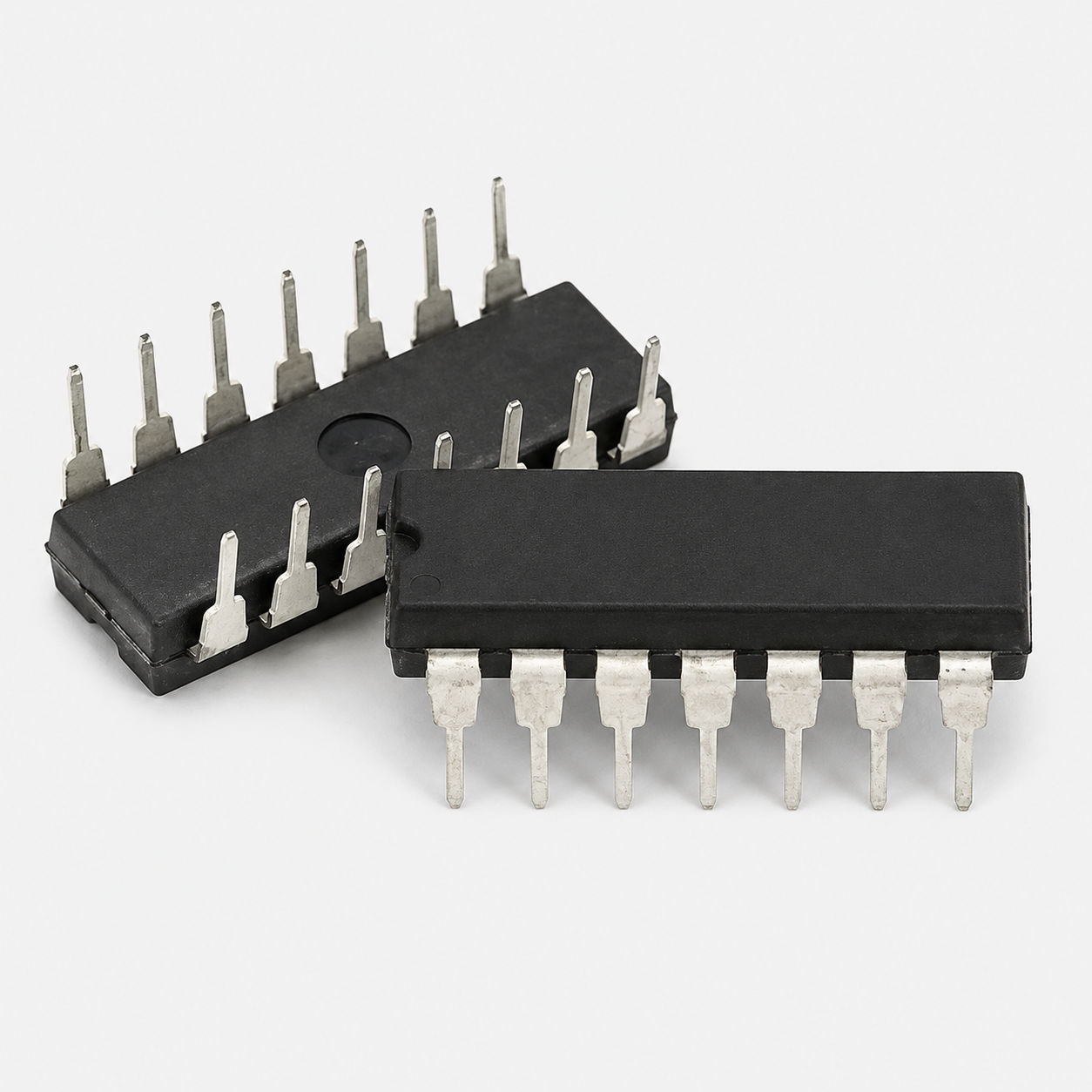

74LS93 Dual JK Flip-Flop with Clear IC - DIP-14 Package
DIP-14 Package
74LS93 Dual JK Flip-Flop with Clear IC - DIP-14 Package

Free Shipping

Free standard shipping on all orders over INR 500

COD Available

On all the orders above INR 500

Free Returns

*Terms & Conditions Applied

Customer Assistance

Contact Us : 0141-4946677 or support@quartzcomponents.com

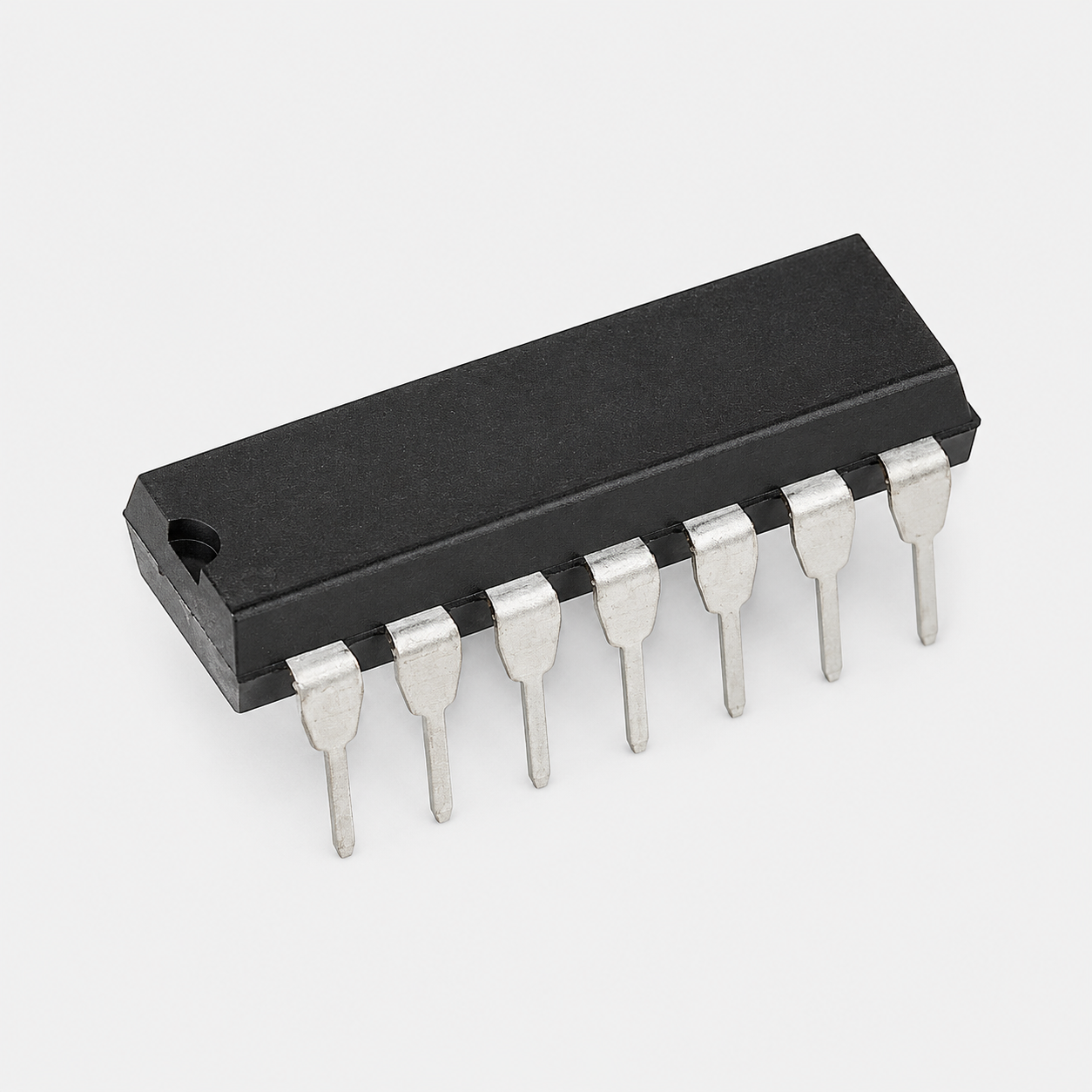

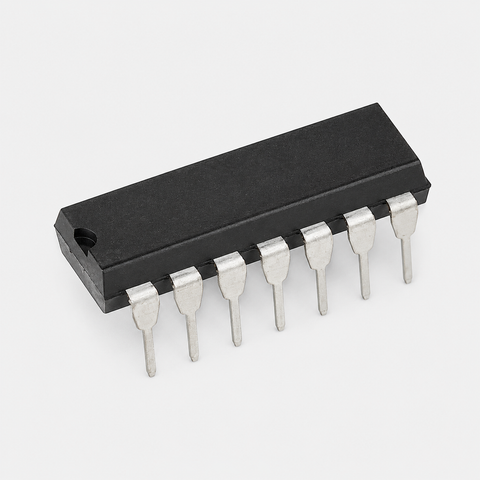

MC3403 Quad Low-Power Operational Amplifier IC - DIP-14 Package

Brand: GENERIC
SKU: CMP-QC5958
Availability: 100 In Stock
Rs. 52.00
Subtotal: Rs. 52.00
Description
Description
x

MC3403 Quad Low-Power Operational Amplifier IC - DIP-14 Package is a versatile quad operational amplifier featuring four independent low-power op-amps in a single package. It is designed for single-supply or dual-supply operation and offers low power consumption, a wide input common-mode voltage range, and stable performance. The MC3403 is widely used in signal conditioning, sensor interfaces, active filters, voltage comparators, industrial control systems, and general-purpose analog circuits.

Features:

  1. Quad Low-Power Operational Amplifier
  2. Four Independent Op-Amps in One Package
  3. Single or Dual Supply Operation
  4. Low Power Consumption
  5. Wide Input Common-Mode Voltage Range
  6. High Voltage Gain
  7. Short Circuit Protected Outputs
  8. Wide Supply Voltage Range
  9. Unity Gain Stable
  10. TTL and CMOS Compatible Applications
  11. DIP-14 Through-Hole Package
  12. Suitable for Signal Conditioning
  13. Ideal for Sensor Interfaces, Active Filters & Control Circuits
  14. RoHS Compliant

Specifications:

Parameter Value
Product Type Quad Operational Amplifier IC
Model MC3403
Number of Amplifiers 4
Package DIP-14
Supply Voltage 3V to 36V (Single Supply), ±1.5V to ±18V (Dual Supply)
Input Offset Voltage 2mV (Typical)
Input Bias Current 45nA (Typical)
Slew Rate 0.6V/µs (Typical)
Gain Bandwidth Product 1MHz (Typical)
Voltage Gain 100dB (Typical)
Output Current 20mA (Typical)
Operating Temperature 0°C to +70°C
Mounting Type Through Hole
Applications Signal Conditioning, Active Filters, Sensor Interfaces, Voltage Followers, Industrial Control, General Analog Circuits
RoHS Compliance Yes



Pin Configuration:

Pin Function
1 Output 1
2 Inverting Input 1 (-)
3 Non-Inverting Input 1 (+)
4 VCC+
5 Non-Inverting Input 2 (+)
6 Inverting Input 2 (-)
7 Output 2
8 Output 3
9 Inverting Input 3 (-)
10 Non-Inverting Input 3 (+)
11 VCC- / GND
12 Non-Inverting Input 4 (+)
13 Inverting Input 4 (-)
14 Output 4



Also Check These Out:

AN7112 Audio Power Amplifier IC

TDA2822M Amplifier IC

HT12D (RF Decoder) IC

Package Includes:

1 x MC3403 Quad Low-Power Operational Amplifier IC - DIP-14 Package
