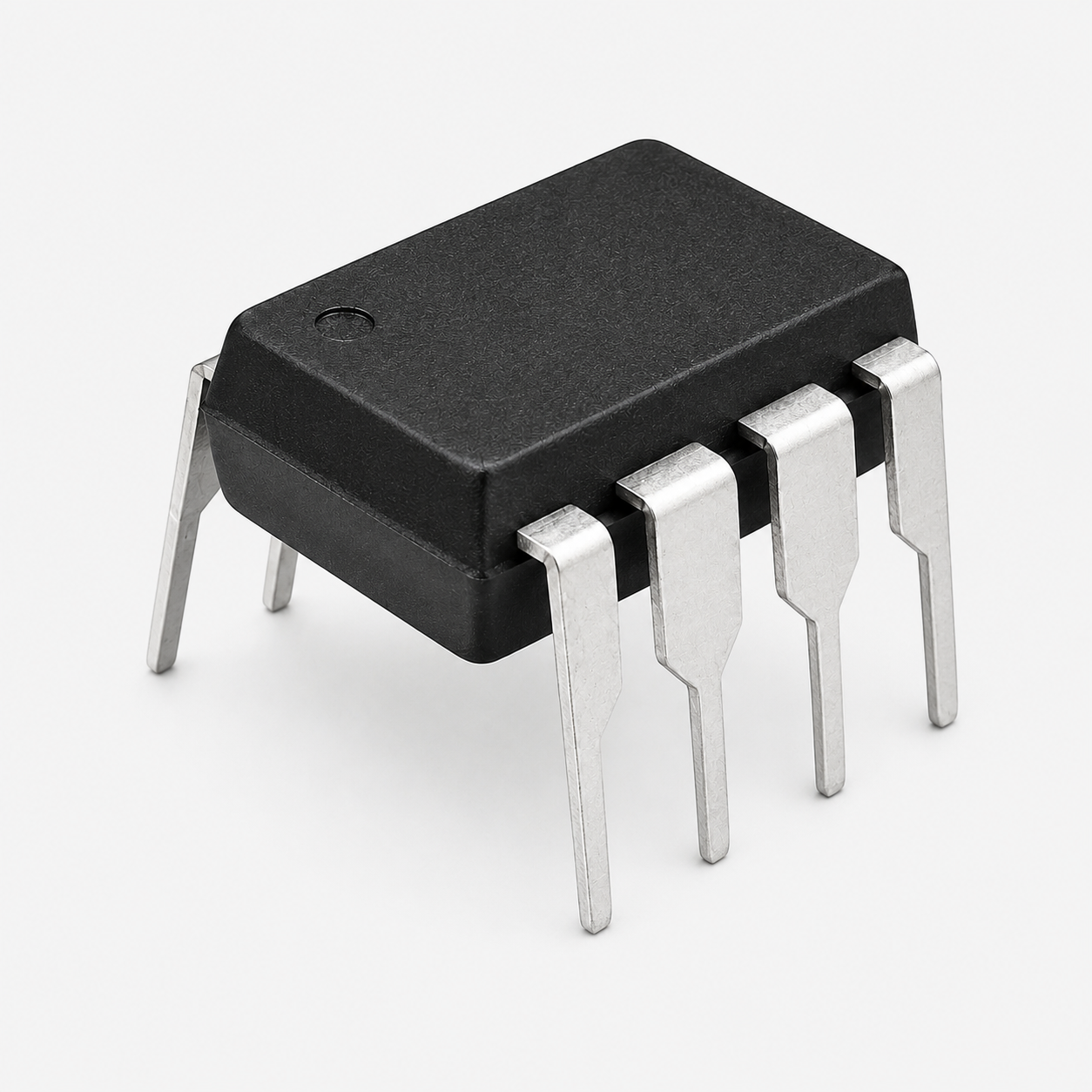

MC33153P Single IGBT Gate Driver IC - DIP-8 Package

Brand: GENERIC
SKU: CMP-QC5956
Availability: 100 In Stock
Rs. 46.00
Subtotal: Rs. 46.00
Description
Description
x

MC33153P Single IGBT Gate Driver IC - DIP-8 Package is a high-speed, high-current gate driver IC designed to drive IGBTs and power MOSFETs in switching power applications. It provides high peak output current, fast switching performance, undervoltage lockout (UVLO), and excellent noise immunity, making it ideal for motor drives, inverters, UPS systems, SMPS, and industrial power control circuits. The DIP-8 package enables easy through-hole mounting and prototyping.

Features:

  1. Single High-Speed IGBT/MOSFET Gate Driver
  2. High Peak Output Current
  3. Fast Rise and Fall Times
  4. Undervoltage Lockout (UVLO)
  5. Wide Supply Voltage Range
  6. TTL and CMOS Compatible Input
  7. High Noise Immunity
  8. Low Propagation Delay
  9. High Switching Frequency Capability
  10. Push-Pull Totem Pole Output Stage
  11. DIP-8 Through-Hole Package
  12. Suitable for High Power Switching Applications
  13. Ideal for IGBT & MOSFET Gate Driving
  14. RoHS Compliant

Specifications:

Parameter Value
Product Type Single IGBT/MOSFET Gate Driver IC
Model MC33153P
Package DIP-8
Supply Voltage (VCC) 10V to 18V
Peak Output Current ±1.5A (Typical)
Output Configuration Push-Pull Totem Pole
Input Logic TTL / CMOS Compatible
Propagation Delay 100ns (Typical)
Rise Time 40ns (Typical)
Fall Time 30ns (Typical)
Undervoltage Lockout Yes
Operating Temperature -40°C to +85°C
Mounting Type Through Hole
Applications IGBT Gate Driving, MOSFET Drivers, Motor Drives, UPS Systems, SMPS, DC-DC Converters, Inverters
RoHS Compliance Yes



Pin Configuration:

Pin Function
1 Input
2 Enable
3 GND
4 Output
5 VCC
6 NC
7 NC
8 NC
