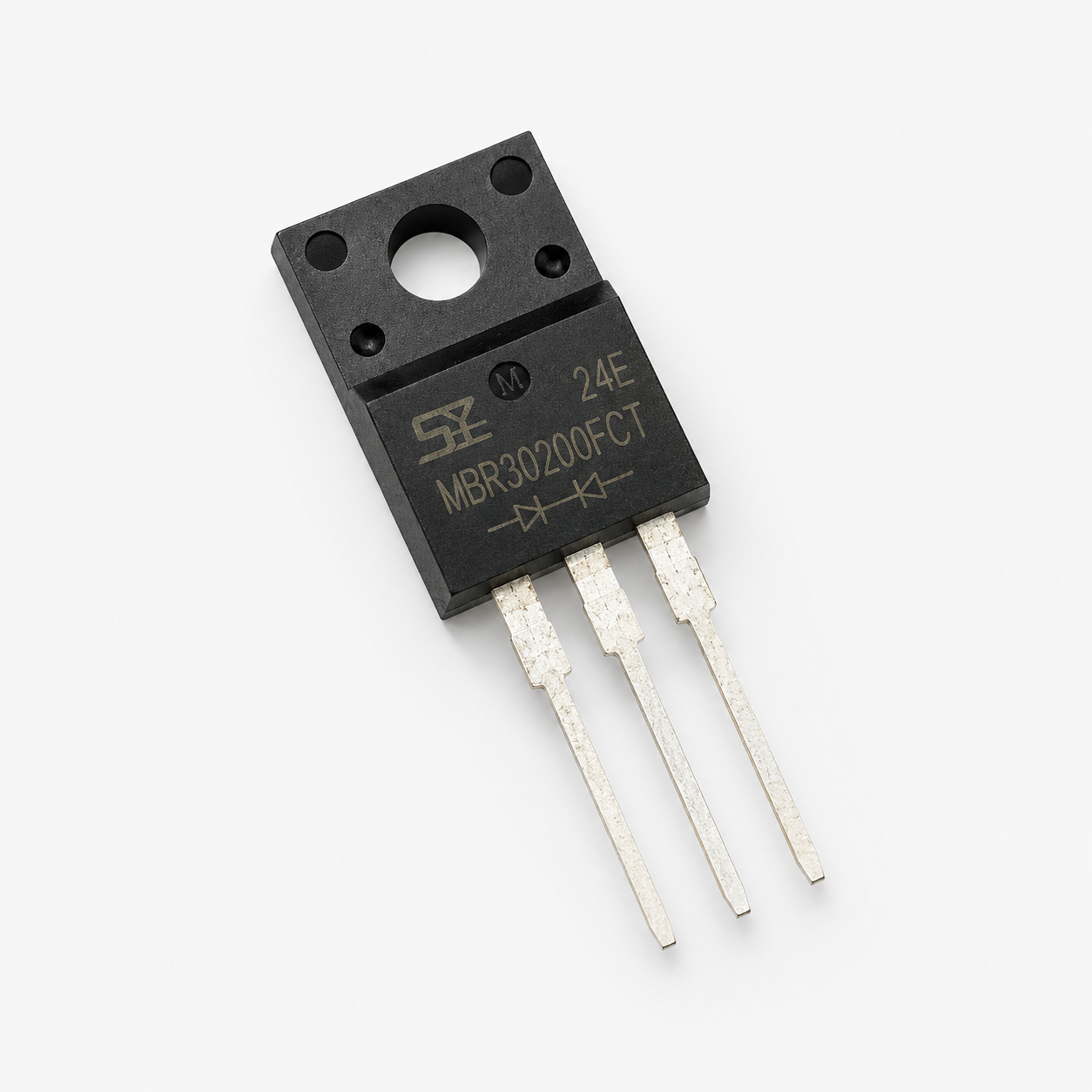

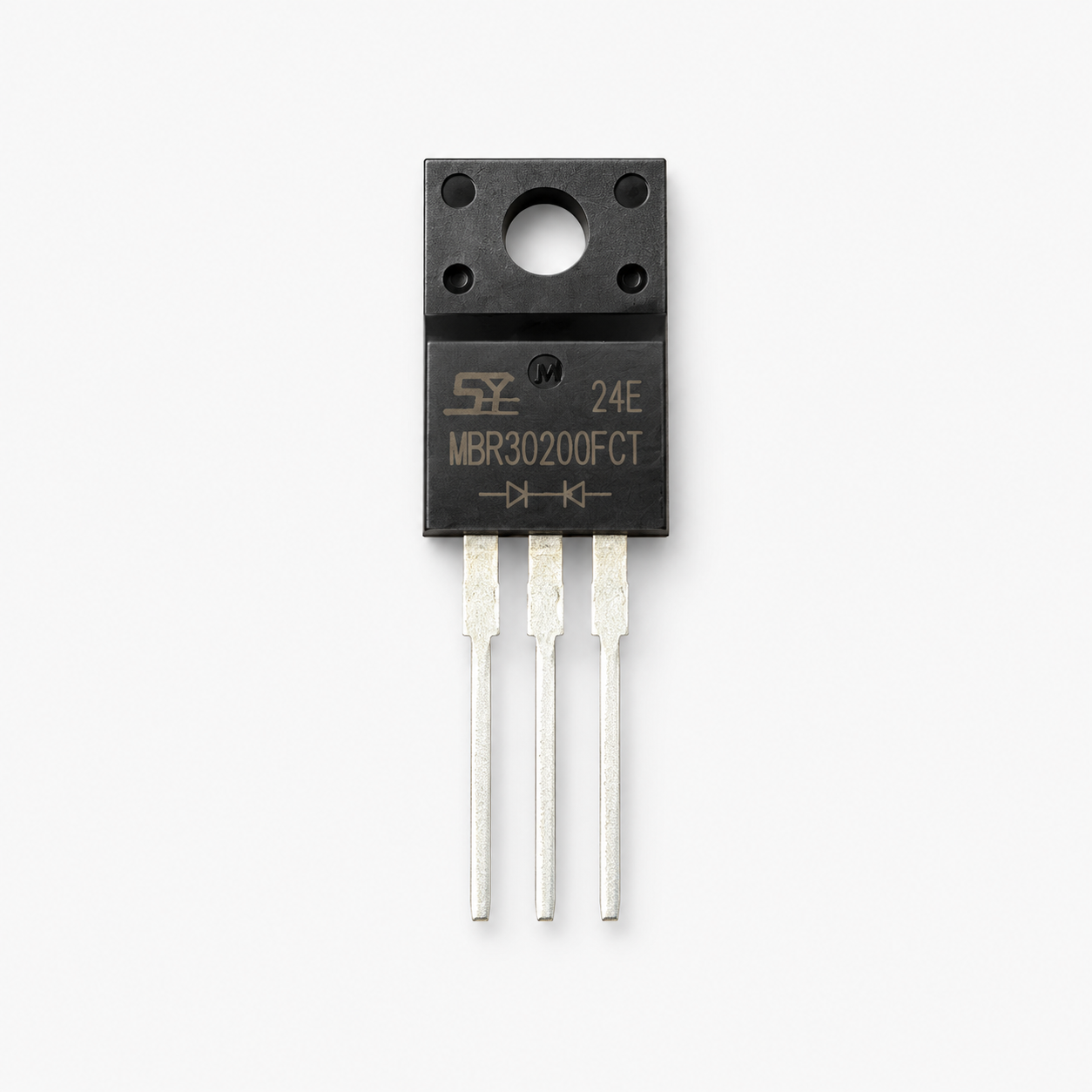

MBR30200FCT 200V 30A Dual Schottky Rectifier - TO-220F DIP Package
SKU:
CMP-QC6006
Availability:
50
In Stock
-
- Rs. 88.00
- Unit price
- per
Subtotal:
Rs. 88.00
Description
xMBR30200FCT 200V 30A Dual Schottky Rectifier - TO-220F DIP Package is a high-performance dual common cathode Schottky barrier rectifier designed for switching power supplies, DC-DC converters, battery chargers, solar inverters, freewheeling circuits, and power management applications. Featuring a 200V reverse voltage rating, 30A average forward current, low forward voltage drop, and fast switching characteristics, it provides excellent efficiency, reduced power loss, and reliable performance in high-frequency power circuits.
Features:
- Dual Common Cathode Schottky Rectifier
- 30A Average Forward Current
- 200V Reverse Voltage Rating
- Low Forward Voltage Drop
- Fast Switching Performance
- High Surge Current Capability
- Low Power Loss
- High Efficiency
- Electrically Isolated TO-220F Package
- Through-Hole (DIP) Mounting
- RoHS Compliant
- Suitable for SMPS, Inverters, and Power Supplies
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Dual Schottky Barrier Rectifier |
| Model | MBR30200FCT |
| Diode Configuration | Dual Common Cathode |
| Average Forward Current (IF(AV)) | 30A |
| Forward Current (Per Diode) | 15A |
| Peak Repetitive Reverse Voltage (VRRM) | 200V |
| DC Blocking Voltage | 200V |
| RMS Reverse Voltage | 140V |
| Peak Surge Forward Current (IFSM) | 200A |
| Forward Voltage (VF) | 0.95V Max @ 15A |
| Forward Voltage (VF) | 1.05V Max @ 30A |
| Reverse Leakage Current (IR) | 100µA Max @ 200V |
| Operating Junction Temperature | -55°C to +150°C |
| Storage Temperature | -55°C to +150°C |
| Thermal Resistance (Junction to Case) | 1.7°C/W (Per Leg) |
| Package Type | TO-220F (Full Pack) |
| Mounting Type | Through Hole (DIP) |
| Polarity | Common Cathode |
| Compliance | RoHS |
Also Check These Out:
SR5200 200V 5A Schottky Barrier Rectifier Diode - DO-201 Through Hole Package
200V 20A Dual Schottky Barrier Rectifier Diode with TO-220 DIP Package
100V 30A Dual Schottky Rectifier (HMBRF30100CT-HXY) - TO-220F DIP Package
SD103AWS Small Signal Schottky Diode - SOD-323 SMD Package (Pack of 10)
Package Includes:
1 x MBR30200FCT 200V 30A Dual Schottky Rectifier - TO-220F DIP Package
