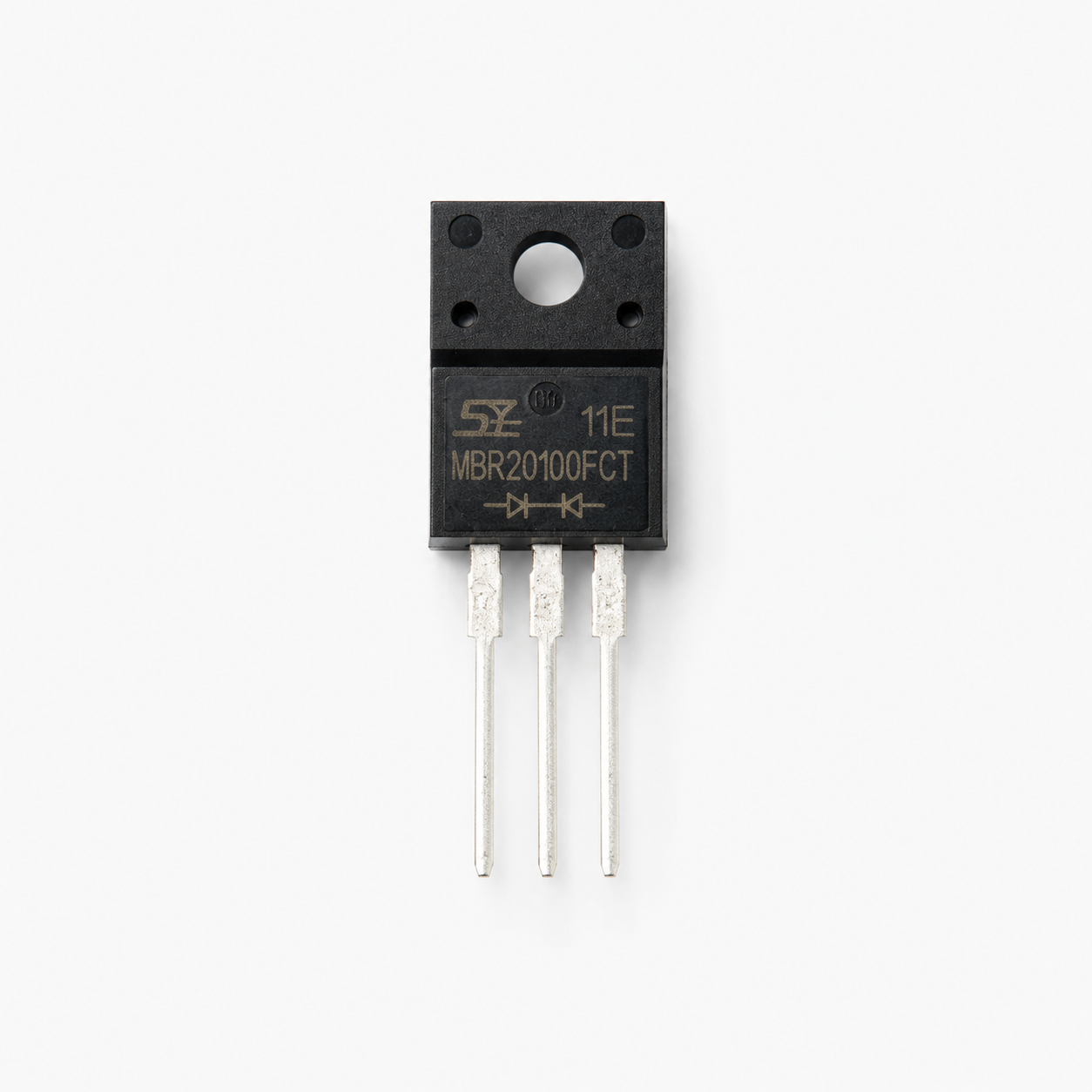

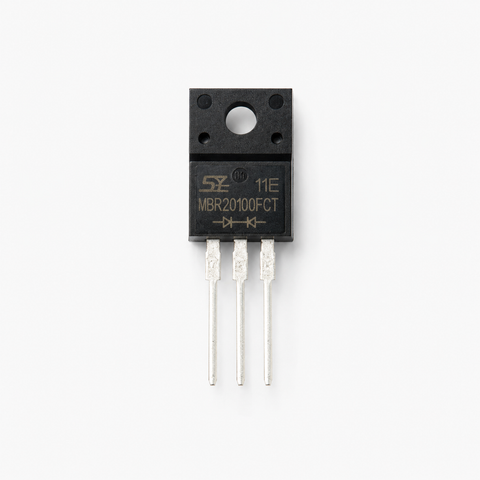

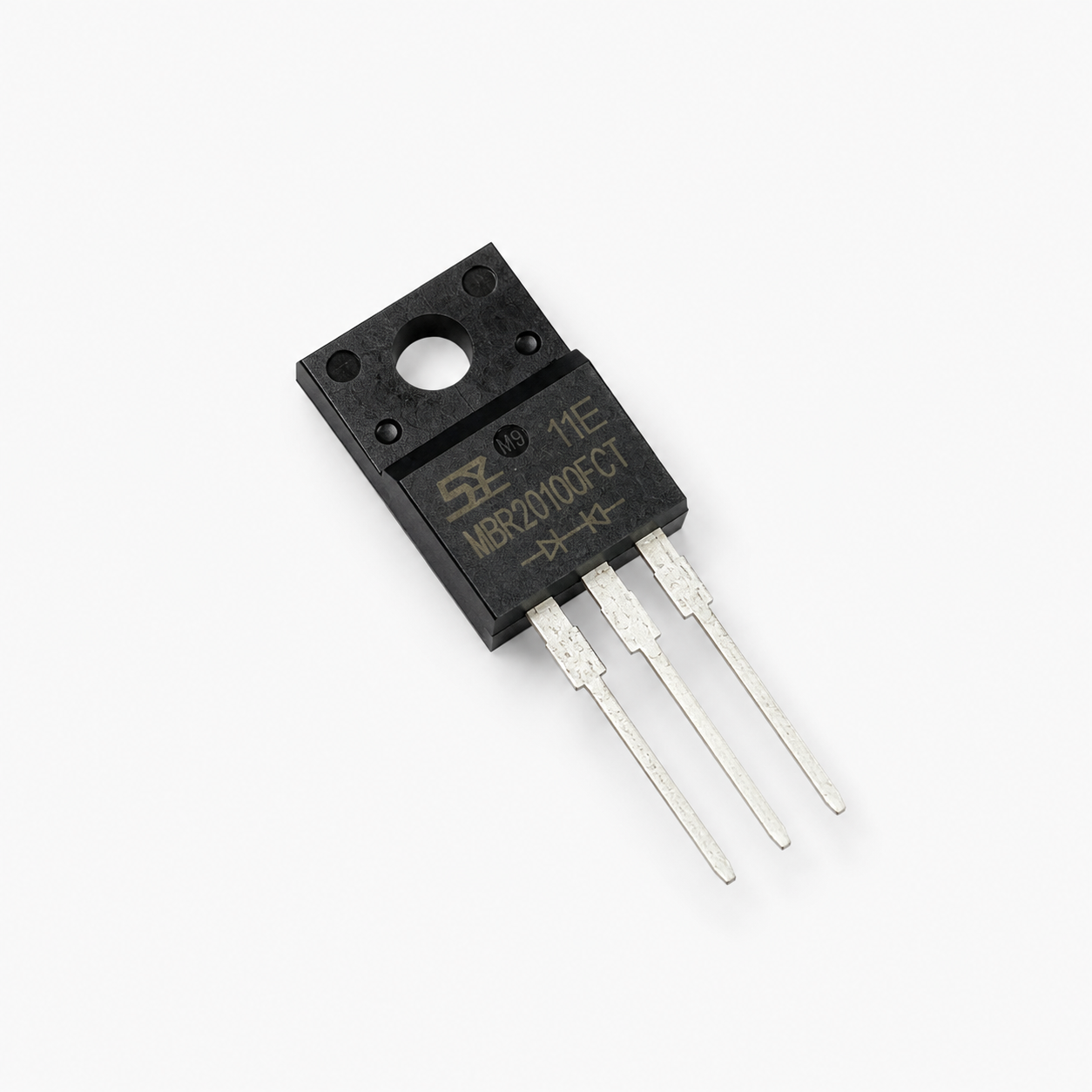

MBR20100FCT 100V 20A Dual Schottky Rectifier - TO-220F DIP Package

Brand: GENERIC
SKU: CMP-QC6004
Availability: 50 In Stock
Rs. 78.00
Subtotal: Rs. 78.00
Description
Description
x

MBR20100FCT 100V 20A Dual Schottky Rectifier - TO-220F DIP Package is a high-efficiency dual common cathode Schottky barrier rectifier designed for switching power supplies, DC-DC converters, battery chargers, solar inverters, freewheeling circuits, and power management applications. Featuring a 100V reverse voltage rating, 20A average forward current, low forward voltage drop, and fast switching characteristics, it delivers excellent efficiency, low power loss, and reliable performance in high-frequency power circuits.

Features:

  1. Dual Common Cathode Schottky Rectifier
  2. 20A Average Forward Current
  3. 100V Reverse Voltage Rating
  4. Low Forward Voltage Drop
  5. Fast Switching Performance
  6. High Surge Current Capability
  7. Low Power Loss
  8. High Efficiency
  9. Electrically Isolated TO-220F Package
  10. Through-Hole (DIP) Mounting
  11. RoHS Compliant
  12. Suitable for SMPS, Inverters, and Power Supplies

Specifications:

Parameter Value
Product Type Dual Schottky Barrier Rectifier
Model MBR20100FCT
Diode Configuration Dual Common Cathode
Average Forward Current (IF(AV)) 20A
Forward Current (Per Diode) 10A
Peak Repetitive Reverse Voltage (VRRM) 100V
DC Blocking Voltage 100V
RMS Reverse Voltage 70V
Peak Surge Forward Current (IFSM) 150A
Forward Voltage (VF) 0.95V Max @ 10A
Reverse Leakage Current (IR) 50µA Max @ 100V
Operating Junction Temperature -55°C to +150°C
Storage Temperature -55°C to +150°C
Thermal Resistance (Junction to Case) 4°C/W
Package Type TO-220F (Full Pack)
Mounting Type Through Hole (DIP)
Polarity Common Cathode
Compliance RoHS


Also Check These Out:

SR5200 200V 5A Schottky Barrier Rectifier Diode - DO-201 Through Hole Package

200V 20A Dual Schottky Barrier Rectifier Diode with TO-220 DIP Package

100V 30A Dual Schottky Rectifier (HMBRF30100CT-HXY) - TO-220F DIP Package

SD103AWS Small Signal Schottky Diode - SOD-323 SMD Package (Pack of 10)

Package Includes:

1 x MBR20100FCT 100V 20A Dual Schottky Rectifier - TO-220F DIP Package
