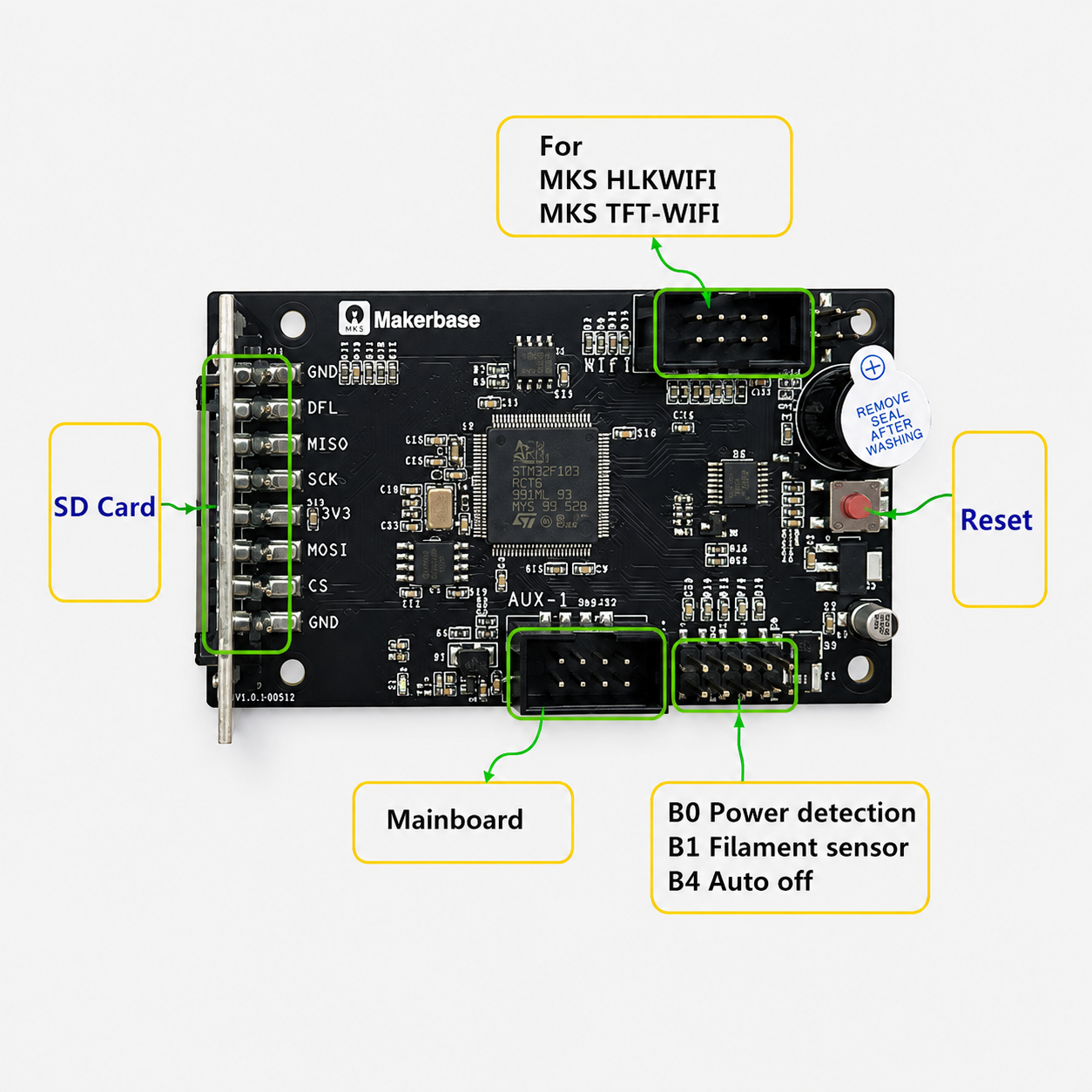

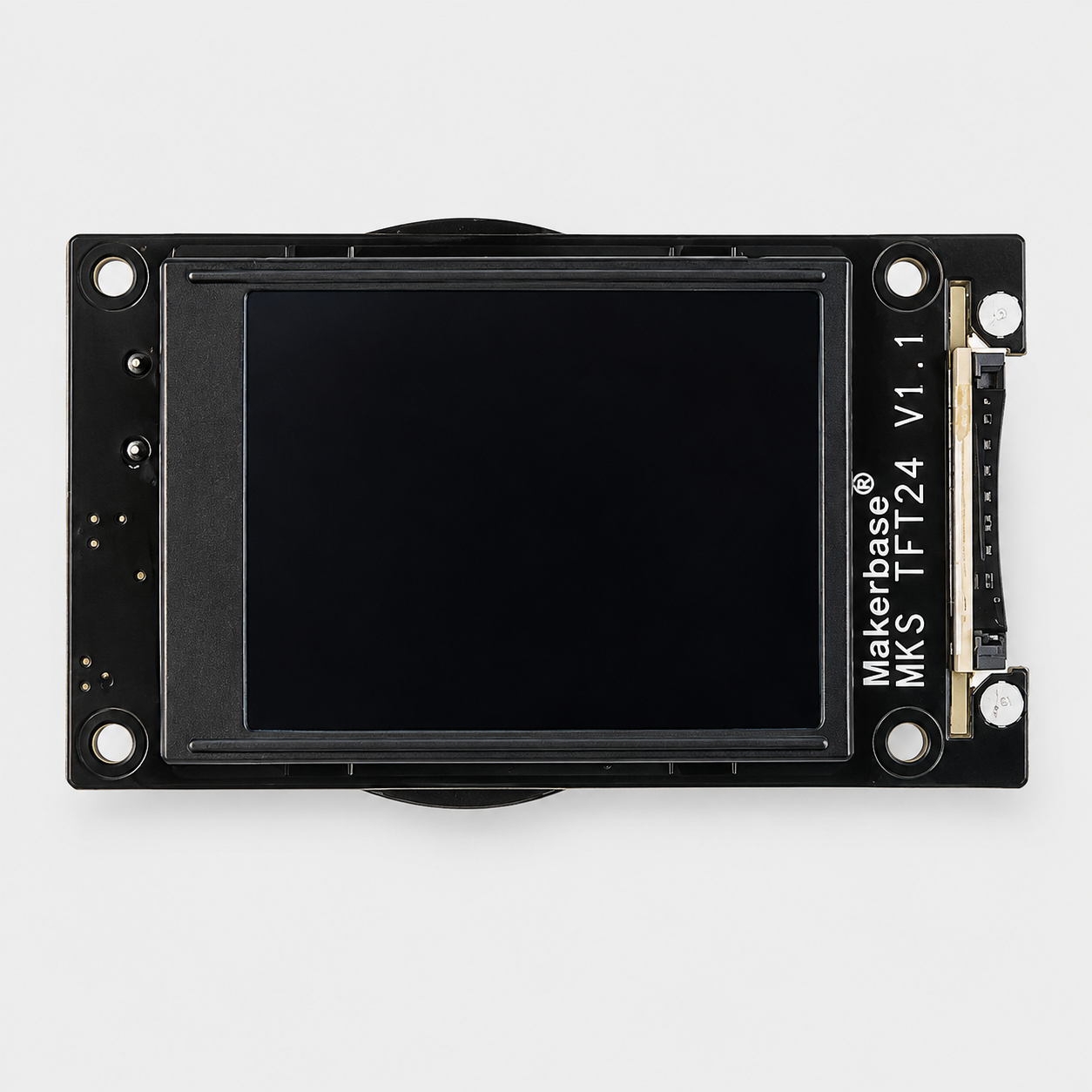

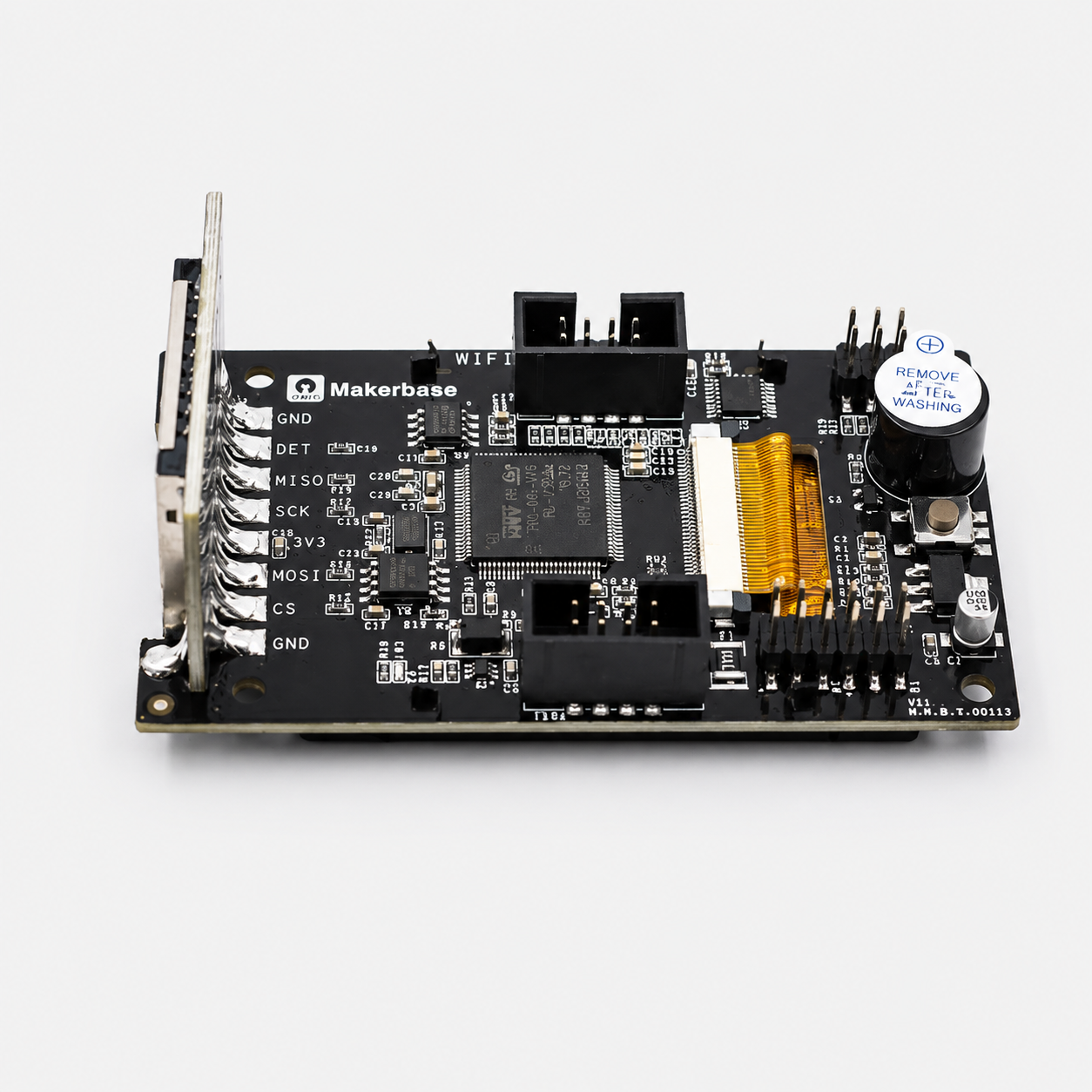

Makerbase MKS TFT24 2.4 inch Mini 3D Printer LCD Splash Screen Touch Screen
SKU:
MOD-QC6094
Availability:
2
In Stock
-
- Rs. 2,765.00
- Unit price
- per
Subtotal:
Rs. 2,765.00
Description
xMakerbase MKS TFT24 2.4 Inch Mini 3D Printer LCD Touch Screen is a compact full-color touchscreen controller designed for 3D printers running Marlin, Repetier, and Smoothieware firmware. Featuring a 2.4-inch resistive touch display, powerful STM32 processor, SD card support, customizable UI, and optional Wi-Fi connectivity, it provides an intuitive interface for printer control, file management, and advanced printing functions. It is an ideal upgrade for DIY and commercial 3D printers.
Features:
- 2.4-inch full-color resistive touchscreen.
- Powered by a high-performance STM32 ARM Cortex-M3 processor.
- Compatible with Marlin, Repetier, and Smoothieware firmware.
- Supports SD card and USB disk printing.
- Power-loss recovery and resume printing support.
- Filament runout detection support.
- Manual and automatic bed leveling support.
- Customizable boot logo, icons, and UI themes.
- Optional Wi-Fi module support for remote and cloud printing.
- Ideal for DIY, FDM, and open-source 3D printers.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | 3D Printer Touchscreen Controller |
| Model | Makerbase MKS TFT24 |
| Display Size | 2.4 Inch |
| Display Type | TFT LCD Resistive Touchscreen |
| Display Resolution | 320 × 240 Pixels |
| Processor | STM32F103VET6 ARM Cortex-M3 |
| Flash Memory | 512KB |
| Touch Type | Resistive Touch |
| Operating Voltage | 5V DC |
| Communication Interface | UART (AUX-1) |
| Storage Support | MicroSD Card, USB Flash Drive |
| Supported Firmware | Marlin, Repetier, Smoothieware |
| Optional Connectivity | MKS Wi-Fi Module |
| Supported Functions | SD Printing, USB Printing, Auto Bed Leveling, Filament Detection, Power-Loss Recovery, Cloud Printing |
| Language Support | Multi-Language |
| Board Dimensions | Approximately 93 × 58mm |
| Applications | FDM 3D Printers, DIY 3D Printers, CNC Machines, Laser Engravers (Firmware Dependent) |
if you are looking for more Display for your future projects you can visit our latest and best selling display categories and buy the best suitable display for your projects.
Package Includes:
1 × Makerbase MKS TFT24 2.4 Inch Mini 3D Printer LCD Touch Screen
