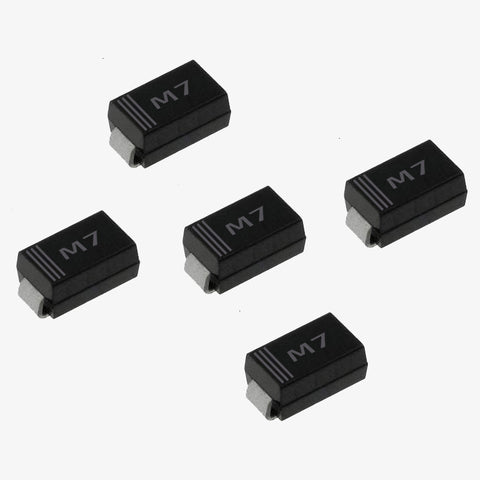

M7 Diode is nothing but SMD version of 1N4007 Diode. Features of M7 Reverse voltage 50 to 1000 Volts with Forward Current of 1.0 Ampere.
- SMD Version of 1N4007
- Forward Current: 1A
- Max Repetitive Reverse Voltage: 1000 V
- Max RMS Voltage: 700V
- Max DC Blocking Voltage: 1000V
- Max instantaneous forward voltage: 1.1 V
Mechanical Characteristics :
- Case : JEDEC DO-214AC molded plastic body
- Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
- Polarity : Color band denotes cathode end.
|Peak Repetitive Reverse Voltage (VRRM)||1000V|
|Maximum RMS Voltage (VRMS)||700V|
|Maximum DC Blocking Voltage (VDC)||1000V|
|Maximum Average Forward Rectified Current (IFAV)||1A|
|Non-Repetitive Peak Forward Surge Current (IFSM)||30A|
|Operating Junction Temperature Range (TJ)||− 65°C to +175°C|
|Storage Temperature Range (Tstg)||− 65°C to +175°C|

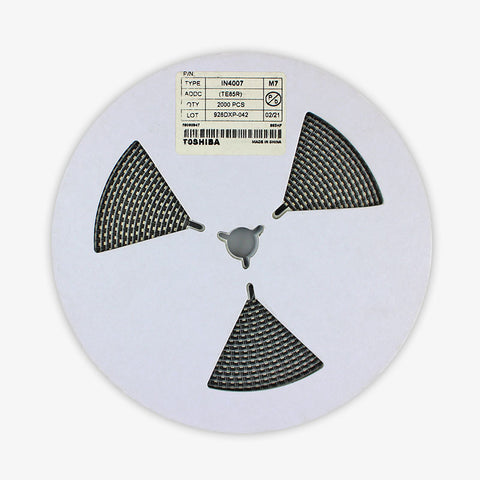

Package includes :M7 / 1N4007 SMD Diode x 10piece
