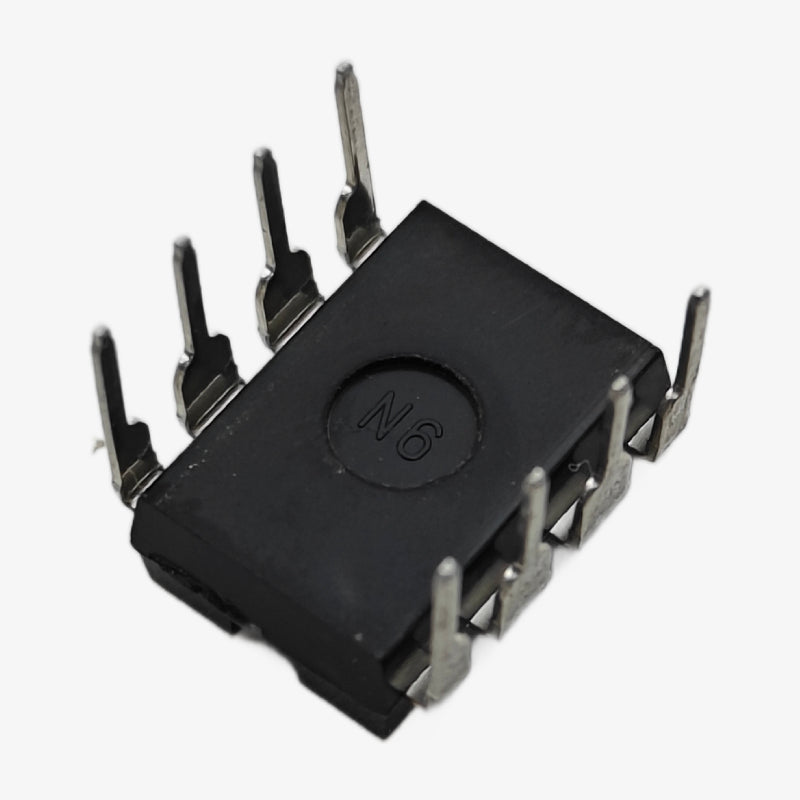

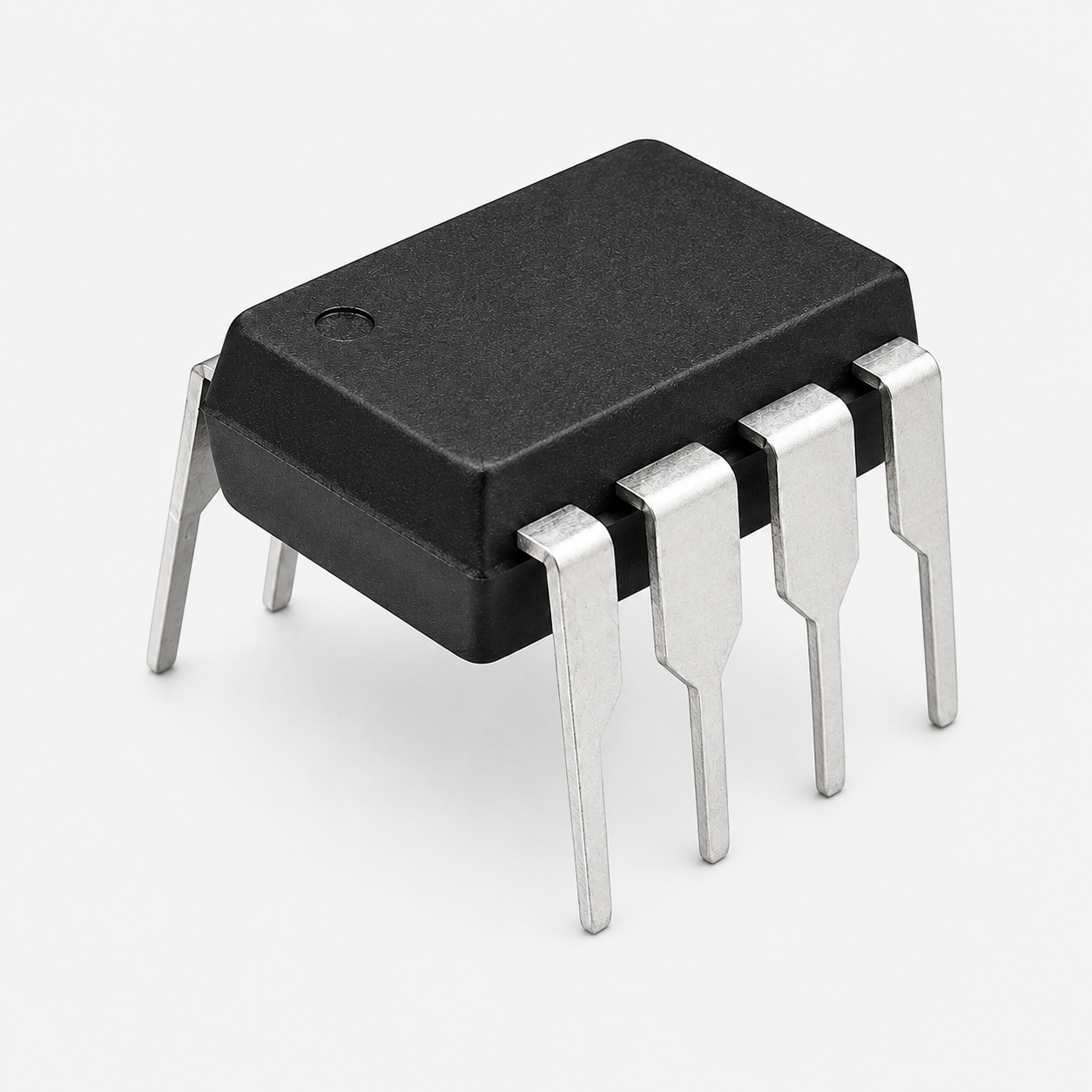

LM833 Dual Low Noise Audio Op-Amp IC - DIP-8 Package

Brand: GENERIC
SKU: CMP-QC5951
Availability: 100 In Stock
Rs. 22.00
Subtotal: Rs. 22.00
Description
Description
x

LM833 Dual Low Noise Audio Op-Amp IC - DIP-8 Package is a high-performance dual operational amplifier specifically designed for premium audio applications. It features ultra-low noise, low distortion, high slew rate, and wide bandwidth, making it an excellent choice for audio preamplifiers, active filters, equalizers, mixers, headphone amplifiers, and professional sound equipment. The DIP-8 package allows for easy through-hole mounting and prototyping.

Features:

  1. Dual Low Noise Operational Amplifier
  2. Optimized for High-Quality Audio Applications
  3. Ultra-Low Noise Performance
  4. Low Harmonic Distortion
  5. High Slew Rate
  6. Wide Gain Bandwidth
  7. Excellent Channel Separation
  8. Wide Supply Voltage Range
  9. High Output Drive Capability
  10. Low Input Bias Current
  11. Stable Unity Gain Operation
  12. DIP-8 Through-Hole Package
  13. Suitable for Audio Preamplifiers
  14. Ideal for Mixers, Equalizers & Active Filters
  15. RoHS Compliant

Specifications:

Parameter Value
Product Type Dual Audio Operational Amplifier IC
Model LM833
Number of Amplifiers 2
Package DIP-8
Supply Voltage ±5V to ±18V (10V to 36V Single Supply)
Input Noise Voltage 4.5nV/√Hz (Typical)
Slew Rate 7V/µs (Typical)
Gain Bandwidth Product 15MHz
Input Offset Voltage 0.3mV (Typical)
Input Bias Current 300nA (Typical)
Output Current ±30mA (Typical)
Operating Temperature 0°C to +70°C
Mounting Type Through Hole
Applications Audio Preamplifiers, Mixers, Equalizers, Active Filters, Headphone Amplifiers, Professional Audio Equipment
RoHS Compliance Yes

Pin Configuration:

Pin Function
1 Output A
2 Inverting Input A (-)
3 Non-Inverting Input A (+)
4 V- (Negative Supply / GND for Single Supply)
5 Non-Inverting Input B (+)
6 Inverting Input B (-)
7 Output B
8 V+ (Positive Supply)

Also Check These Out:

AN7112 Audio Power Amplifier IC

TDA2822M Amplifier IC

HT12D (RF Decoder) IC

Package Includes:

1 x LM833 Dual Low Noise Audio Op-Amp IC - DIP-8 Package
