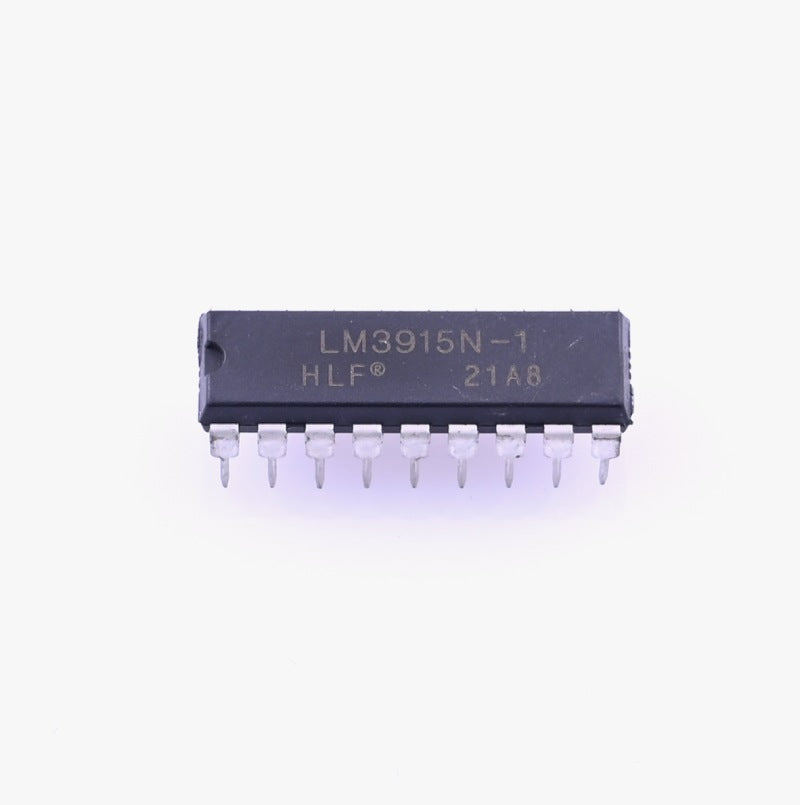

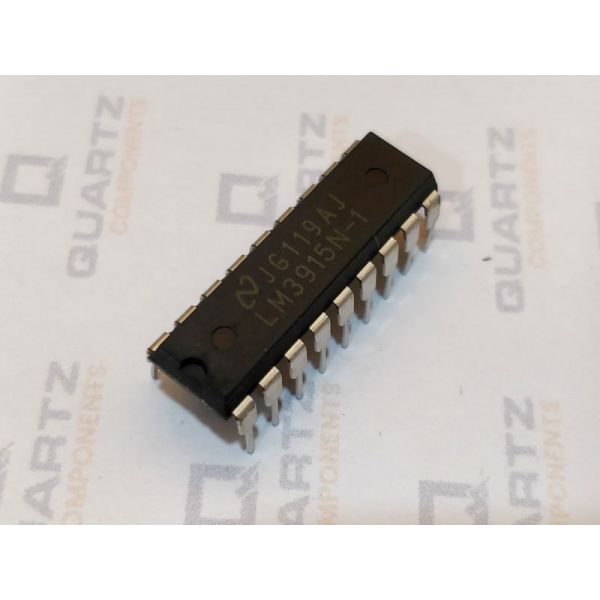

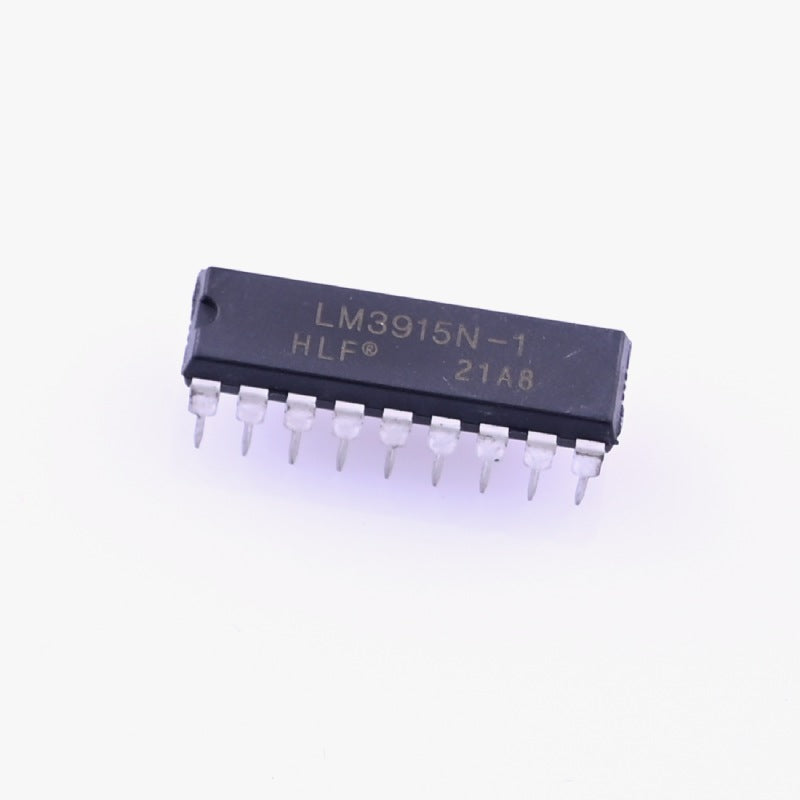

LM3915 Dot/Matrix Display Driver IC
Sale

LM3915 Dot/Matrix Display Driver IC LM3915 Dot/Matrix Display Driver IC

QC0089

144 In stock

Rs. 76.00 Rs. 62.00
-
+
Rs. 62.00
(inc. GST)
[Delivery: 2 to 5 days]

The LM3915 is an audio-level display driver IC. It offers a simple way to display a logarithmic voltage level using one or more groups of ten LEDs with a minimum of fuss. The LM3915 monolithic IC senses analog voltage levels and drives ten LEDs, LCDs, or vacuum fluorescent displays with only a single resistor. Each LED connected to the LM3915 represents a 3 dB (decibel) change in the power level of the sensed signal.

The LEDs can appear in a bar graph or single ‘dot’ when in use so it is so commonly used with 5x5 Dot Matrix displays or the 10-segment LED bar display. The LM3915 IC has an operating voltage from 3V to 25V. The internal reference voltage for the IC can be set from 1.2V to 12V and the output current can be programmed to be from 2mA to 30mA according to the LED that is being driven.



Product Description of LM3915 Dot/Matrix Display Driver IC

LM3915 Dot/Matrix Display Driver IC



Features of LM3915 Dot/Matrix Display Driver IC

  • Drives LEDs, LCDs, or vacuum fluorescents
  • Bar or dot display mode externally selectable by the user
  • 3 dB/step, 30 dB range
  • Operates with a single supply of 3 V to 25 V
  • Input withstands ±35V without damage
  • Outputs are current regulated, open collectors
  • Output current programmable from 1 mA to 30 mA
  • Internal voltage reference from 1.2V to 12V
  • Operating Temperature: 0 to 70 °C



Additional Resources



Package Contents

1 x LM3915 Dot/Matrix Display Driver IC

The LM3915 is an audio-level display driver IC. It offers a simple way to display a logarithmic voltage level using one or more groups of ten LEDs with a minimum of fuss. The LM3915 monolithic IC senses analog voltage levels and drives ten LEDs, LCDs, or vacuum fluorescent displays with only a single resistor. Each LED connected to the LM3915 represents a 3 dB (decibel) change in the power level of the sensed signal.

The LEDs can appear in a bar graph or single ‘dot’ when in use so it is so commonly used with 5x5 Dot Matrix displays or the 10-segment LED bar display. The LM3915 IC has an operating voltage from 3V to 25V. The internal reference voltage for the IC can be set from 1.2V to 12V and the output current can be programmed to be from 2mA to 30mA according to the LED that is being driven.



Product Description of LM3915 Dot/Matrix Display Driver IC

LM3915 Dot/Matrix Display Driver IC



Features of LM3915 Dot/Matrix Display Driver IC

  • Drives LEDs, LCDs, or vacuum fluorescents
  • Bar or dot display mode externally selectable by the user
  • 3 dB/step, 30 dB range
  • Operates with a single supply of 3 V to 25 V
  • Input withstands ±35V without damage
  • Outputs are current regulated, open collectors
  • Output current programmable from 1 mA to 30 mA
  • Internal voltage reference from 1.2V to 12V
  • Operating Temperature: 0 to 70 °C



Additional Resources



Package Contents

1 x LM3915 Dot/Matrix Display Driver IC
