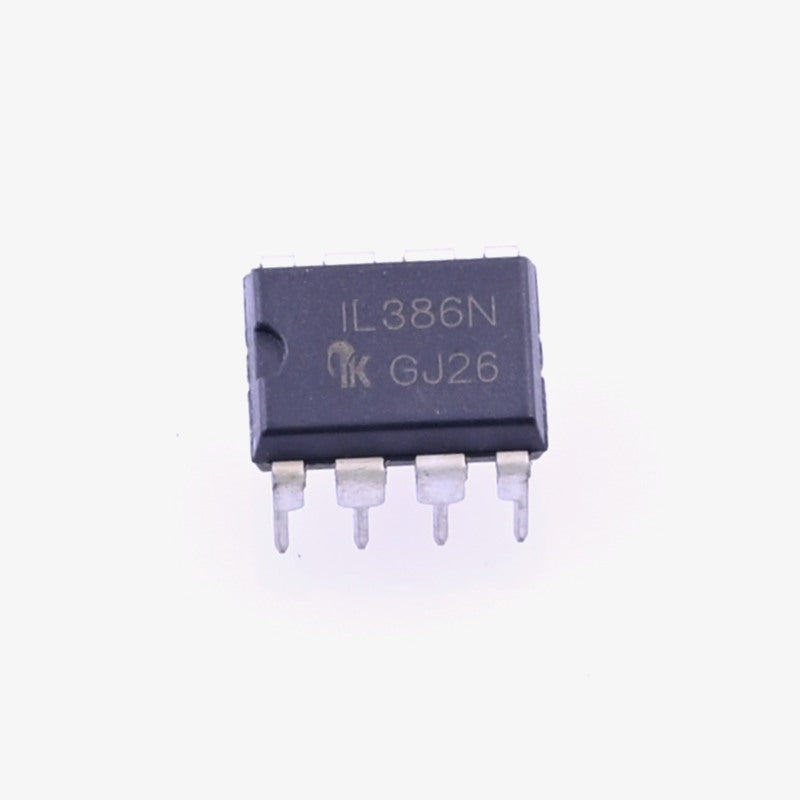

LM386 Low Voltage Audio Op-Amp IC LM386 Low Voltage Audio Op-Amp IC

QC0083

79 In stock

Rs. 11.00
-
+
Rs. 11.00
(inc. GST)
[Delivery: 2 to 5 days]

LM386 IC is a popular low voltage power amplifier used mostly in consumer applications including: AM-FM Radio Amplifiers, line drivers, small servo drivers, power converters, TV sound systems and more. The LM386 IC operates from 4V to 15V, has a good adjustable gain value from 20 to 200 with the use of external resistors and capacitors. It can well drive loads from 4W to 32W . This IC is easy to use and integrate in your audio amplifier circuits.


Product Description of the LM386 Low Voltage Audio Op-Amp IC

LM386



PIN DESCRIPTION

Audio-Op-Amp-IC



Features of LM386 Low Voltage Audio Op-Amp IC

  • Wide Supply Voltage Range: 4 V–12 V
  • Voltage Gains from 20 to 200
  • Low Quiescent Current Drain: 4 mA
  • Low Distortion: 0.2%
  • Low noise circuitry
  • External circuitry only consists of small components
  • Quiescent power is only 24mW on a 6V supply
  • Easy to use


Additional Resources

LM386 Low Voltage Audio Op-Amp IC datasheet

Package Contents

1× LM386 Low Voltage Audio Op-Amp IC

LM386 IC is a popular low voltage power amplifier used mostly in consumer applications including: AM-FM Radio Amplifiers, line drivers, small servo drivers, power converters, TV sound systems and more. The LM386 IC operates from 4V to 15V, has a good adjustable gain value from 20 to 200 with the use of external resistors and capacitors. It can well drive loads from 4W to 32W . This IC is easy to use and integrate in your audio amplifier circuits.


Product Description of the LM386 Low Voltage Audio Op-Amp IC

LM386



PIN DESCRIPTION

Audio-Op-Amp-IC



Features of LM386 Low Voltage Audio Op-Amp IC

  • Wide Supply Voltage Range: 4 V–12 V
  • Voltage Gains from 20 to 200
  • Low Quiescent Current Drain: 4 mA
  • Low Distortion: 0.2%
  • Low noise circuitry
  • External circuitry only consists of small components
  • Quiescent power is only 24mW on a 6V supply
  • Easy to use


Additional Resources

LM386 Low Voltage Audio Op-Amp IC datasheet

Package Contents

1× LM386 Low Voltage Audio Op-Amp IC
