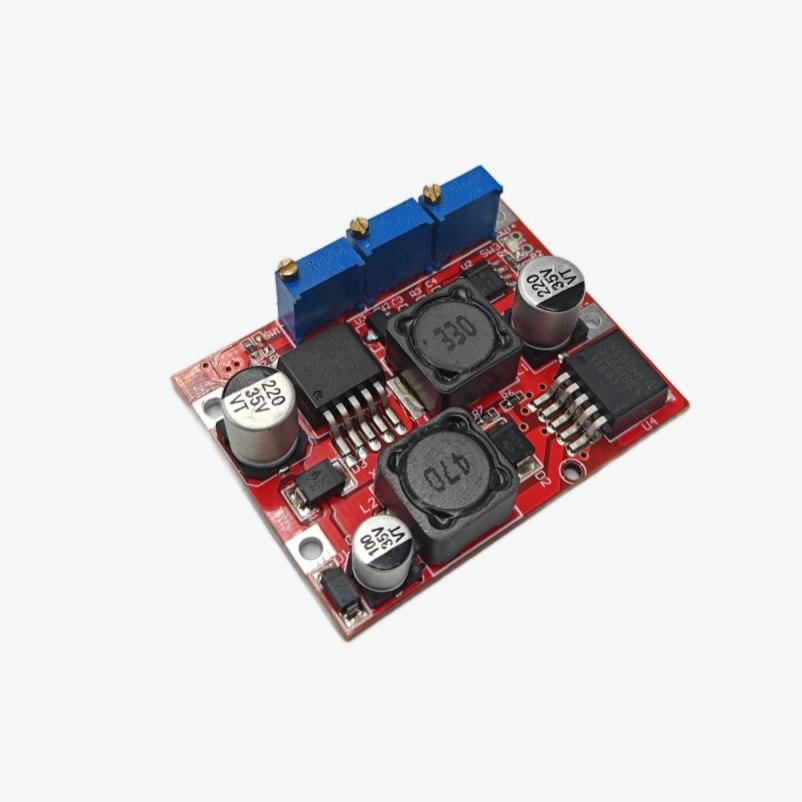

Solar/Wind Energy Charging CC/CV Power Supply Module
SKU:
MOD-QC2681
Availability:
29
In Stock
- Rs. 262.00
- Rs. 262.00
- Unit price
- per
Subtotal:
Rs. 262.00
Description
xThis module is designed for efficient charging and power regulation in solar and wind energy systems. It provides constant current (CC) and constant voltage (CV) outputs, ensuring safe and reliable charging for batteries or powering devices.
Features
- CC/CV Charging: Automatic switch between constant current and constant voltage modes for optimal charging.
- Wide Input Range: Compatible with a variety of solar panels or wind turbines.
- Adjustable Output: Fine-tune output voltage and current to match battery or device requirements.
- Overload Protection: Prevents damage from overcurrent or overheating.
- LED Indicators: Displays charging status and operational mode.
Specifications:
- Input Voltage: 4V to 40V.
- Output Voltage: Adjustable (1.25V to 37V for LM2596S, 3V to 40V for LM2577S).
- Output Current: Up to 2A (depends on the module and conditions).
- Efficiency: 80% to 90%.
- Adjustment Method: Adjustable via potentiometer for precise output tuning.
- Protection: Over-current and thermal protection.
Pinout:
- V_in (Input): Power input pin (4V to 40V).
- GND (Ground): Ground connection.
- V_out (Output): Regulated output pin (adjustable voltage).
- GND (Ground): Ground for output.
