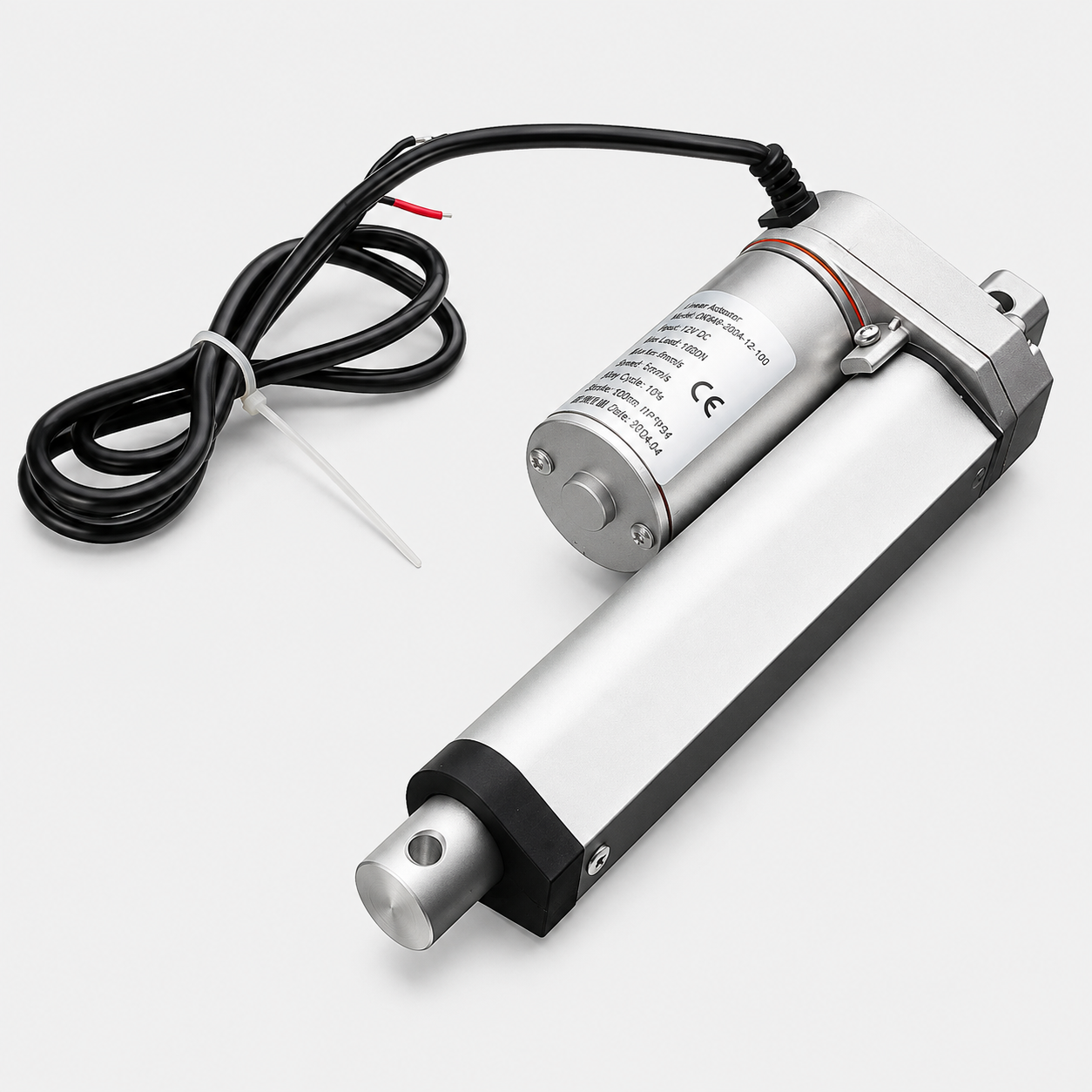

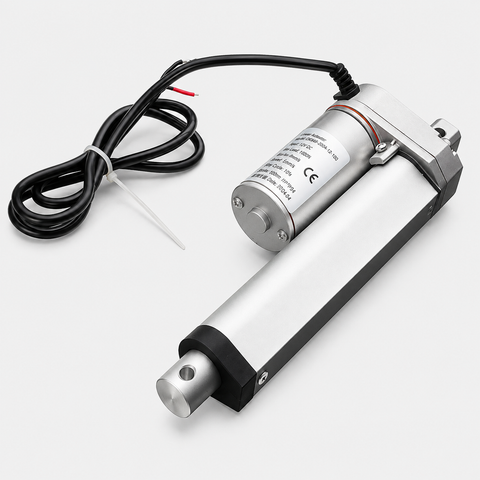

Linear Actuator Stroke Length 12V 100MM 7mm/S
SKU:
MTR-QC6075
Availability:
10
In Stock
-
- Rs. 2,748.00
- Unit price
- per
Subtotal:
Rs. 2,748.00
Description
xLinear Actuator Stroke Length 12V 100MM 7mm/s is a compact electric linear actuator designed to provide smooth and precise linear motion for automation, robotics, smart home systems, industrial equipment, and DIY projects. Operating on a 12V DC supply, it offers a 100mm stroke length and a travel speed of 7mm/s, making it ideal for applications requiring controlled movement and reliable performance.
Features:
- 12V DC electric linear actuator with 100mm stroke.
- Smooth linear motion at a speed of 7mm/s.
- High load capacity with stable operation.
- Built-in limit switches for automatic end-stop protection.
- Low noise and maintenance-free operation.
- Durable aluminum alloy housing for long service life.
- Compact design for easy installation.
- Suitable for push and pull applications.
- Compatible with H-bridge drivers, relays, and motor controllers.
- Ideal for automation, robotics, medical equipment, solar trackers, and smart furniture.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Electric Linear Actuator |
| Operating Voltage | 12V DC |
| Stroke Length | 100mm |
| Travel Speed | 7mm/s |
| Maximum Load Capacity | 1000N (Approximately 100kg) |
| No-Load Current | ≤1A |
| Full-Load Current | ≤3A |
| Duty Cycle | 20% (Max. 5 Minutes Continuous Operation) |
| Protection Class | IP54 |
| Limit Switch | Built-in (Non-Adjustable) |
| Drive Type | DC Motor with Metal Gearbox |
| Housing Material | Aluminum Alloy |

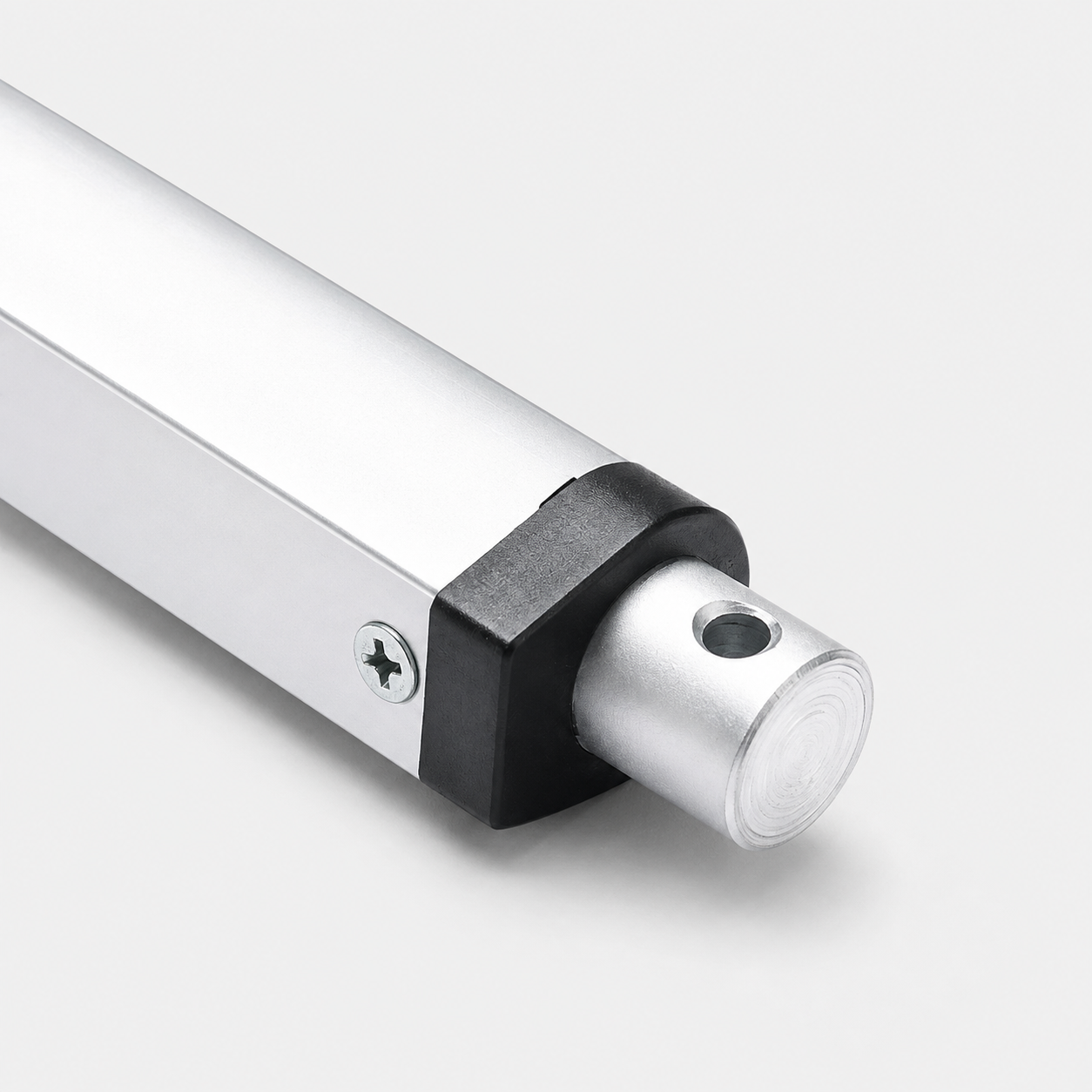

| Extension Tube Material | Stainless Steel |

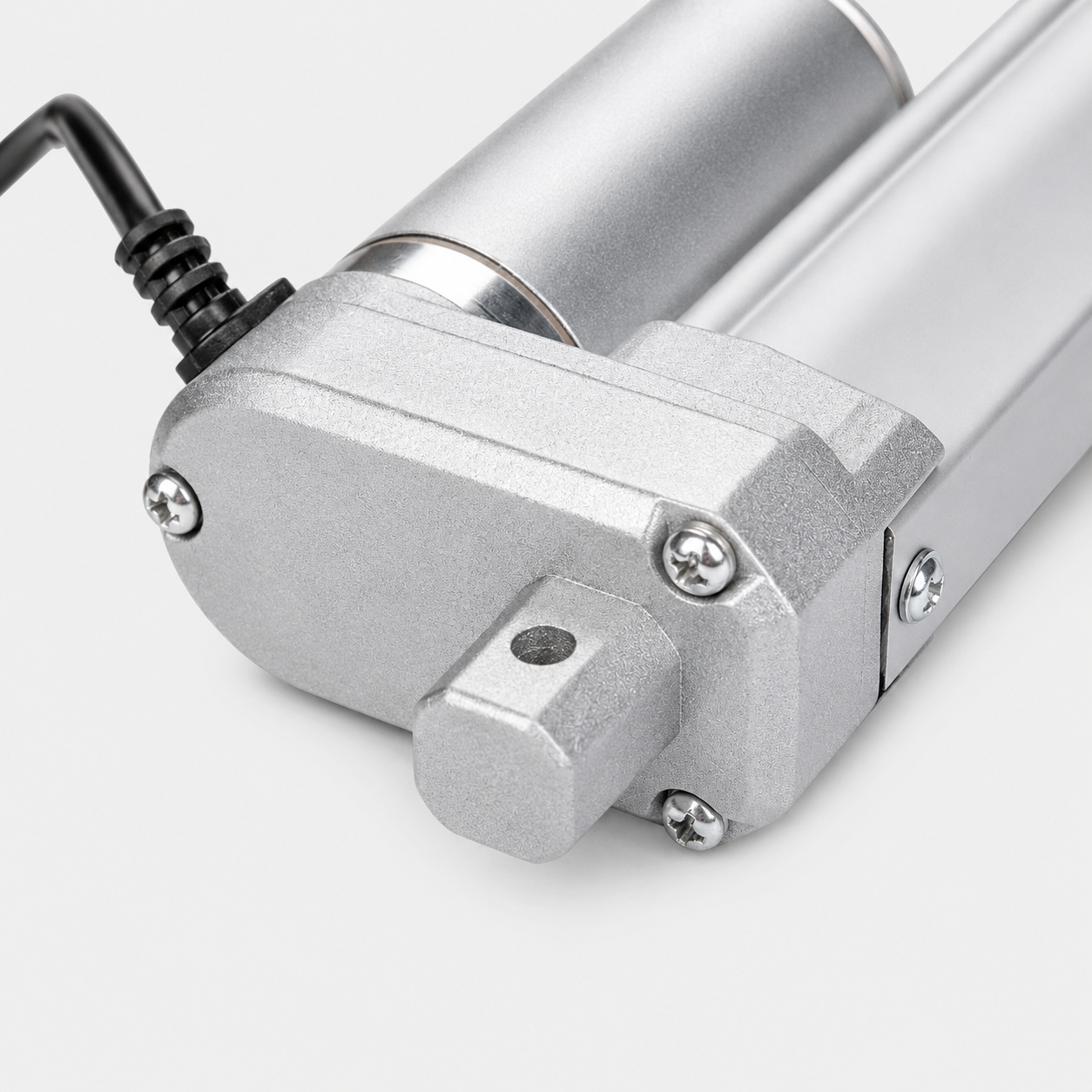

| Mounting Type | Clevis Mounting at Both Ends |
| Operating Temperature | -26°C to +65°C |
| Noise Level | ≤50dB |
| Retracted Length | Approximately 260mm |
| Extended Length | Approximately 360mm |
| Applications | Industrial Automation, Robotics, Smart Home Systems, Medical Equipment, Solar Tracking Systems, Adjustable Furniture, DIY Projects |
Also Check These Out:
Push Actuator 22.5mm RED Push Button Switch
Push Actuator 22.5mm GREEN Push Button Switch
Package Includes:
1 × Linear Actuator Stroke Length 12V 100MM 7mm/s
