SO/MSOP/TSSOP/SOIC/SOP8 to DIP8 PCB Board SO/MSOP/TSSOP/SOIC/SOP8 to DIP8 PCB Board

QC0507

5 In stock

Rs. 20.00
-
+
Rs. 20.00
(inc. GST)

SO/MSOP/TSSOP/SOIC/SOP8 packages are mostly used in Opamps, 555 times Memory ICs which work in low space and high functioning environment. But if you are using any microcontroller IC for prototyping, they are mostly available in DIP packages and while prototyping you need to connect various components with Jumper wires and breadboard. For making the prototyping easier and saving you the trouble of soldering and desoldering this SO/MSOP/TSSOP/SOIC/SOP8 to DIP package PCB Transfer Board is something you can use while prototyping for rapid circuit design and testing. You can also connect the legs of DIP package Microcontrollers in it and It will work just fine or you can use the jumper wires for it too.

Specifications

  • Pin spacing of 1.27mm, suitable for the common SO8, SOP8, SOIC8 package transfer into DIP8 upright
  • Pin spacing of 0.65mm, suitable for common SSOP8, TSSOP8, MSOP8 encapsulation transfer into DIP8 upright
  • Low cost and easy to use

Product Description

Lead-Free SO/MSOP/TSSOP/SOIC/SOP8 Turn DIP8 Wide-Body PCB

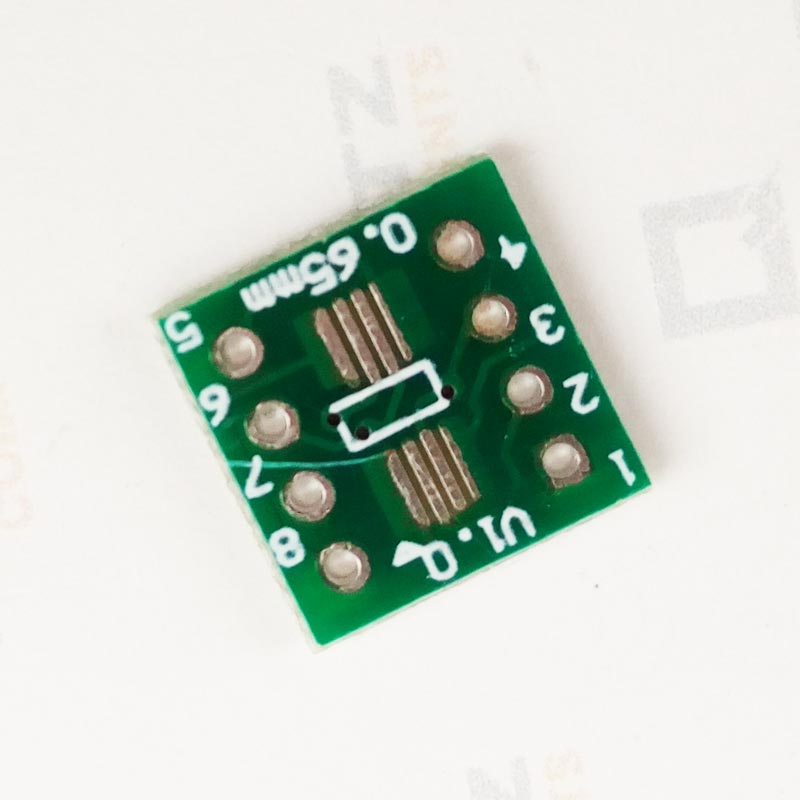

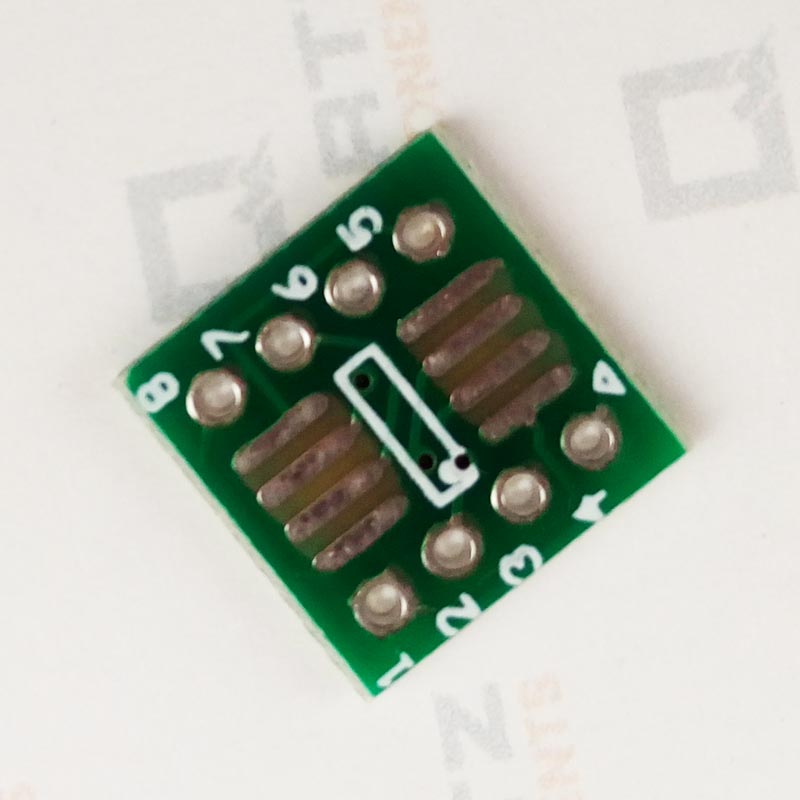

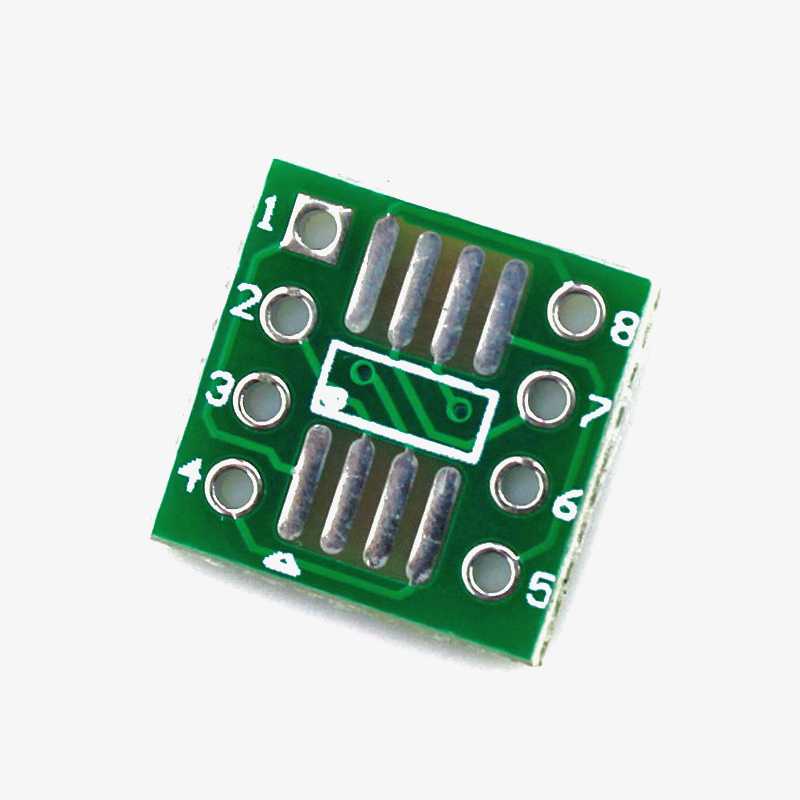

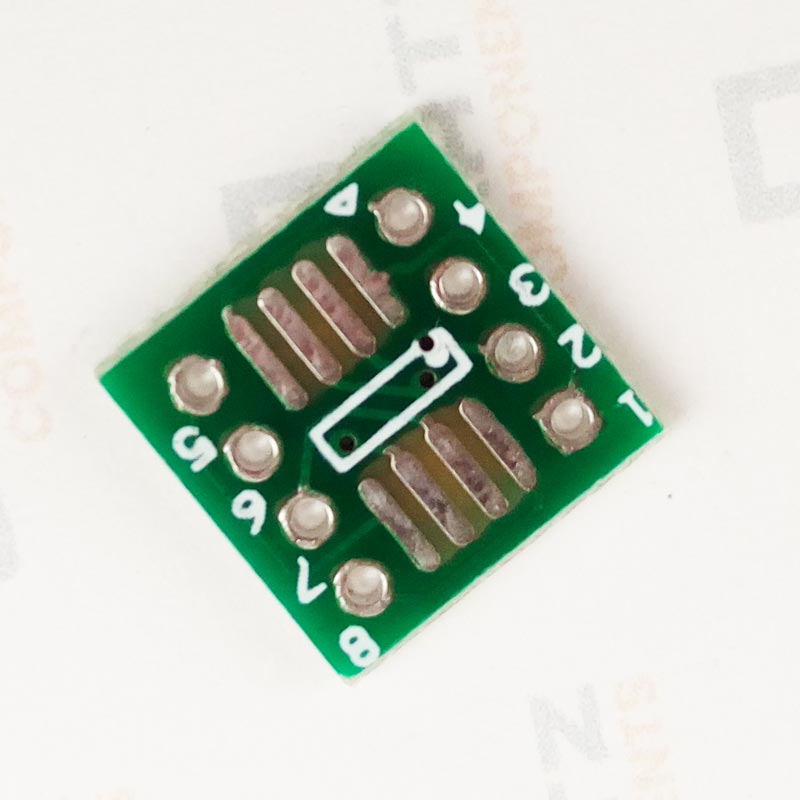

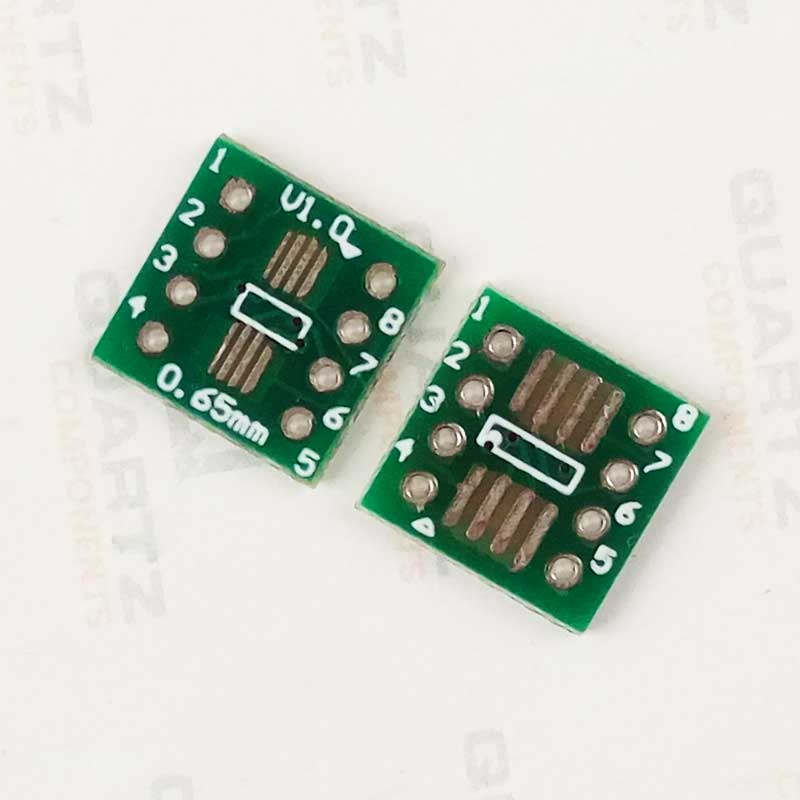

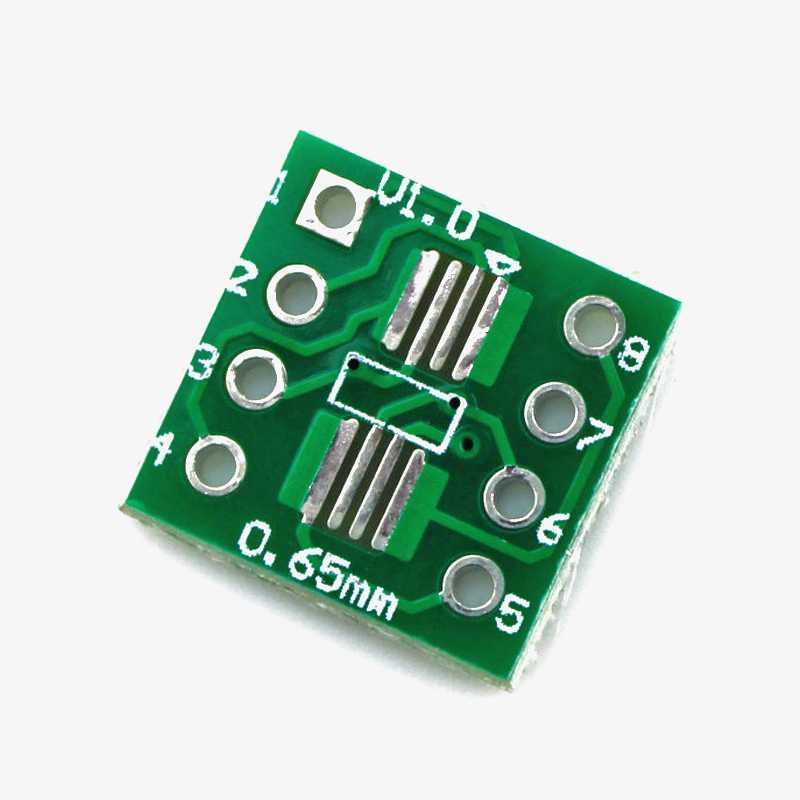

This PCB has two sides one for 1.27mm spacing SO8, SOP8, SOIC8 packages and other for 0.65mm SSOP8, TSSOP8, MSOP8 package. You just need to solder the IC an the board itself and take out the DIP connections by either using a breadboard or using Jumper wires.

Package Contents

1× lead-free SO/MSOP/TSSOP/SOIC/SOP8 Turn DIP8 wide-body PCB

SO/MSOP/TSSOP/SOIC/SOP8 packages are mostly used in Opamps, 555 times Memory ICs which work in low space and high functioning environment. But if you are using any microcontroller IC for prototyping, they are mostly available in DIP packages and while prototyping you need to connect various components with Jumper wires and breadboard. For making the prototyping easier and saving you the trouble of soldering and desoldering this SO/MSOP/TSSOP/SOIC/SOP8 to DIP package PCB Transfer Board is something you can use while prototyping for rapid circuit design and testing. You can also connect the legs of DIP package Microcontrollers in it and It will work just fine or you can use the jumper wires for it too.

Specifications

  • Pin spacing of 1.27mm, suitable for the common SO8, SOP8, SOIC8 package transfer into DIP8 upright
  • Pin spacing of 0.65mm, suitable for common SSOP8, TSSOP8, MSOP8 encapsulation transfer into DIP8 upright
  • Low cost and easy to use

Product Description

Lead-Free SO/MSOP/TSSOP/SOIC/SOP8 Turn DIP8 Wide-Body PCB

This PCB has two sides one for 1.27mm spacing SO8, SOP8, SOIC8 packages and other for 0.65mm SSOP8, TSSOP8, MSOP8 package. You just need to solder the IC an the board itself and take out the DIP connections by either using a breadboard or using Jumper wires.

Package Contents

1× lead-free SO/MSOP/TSSOP/SOIC/SOP8 Turn DIP8 wide-body PCB
