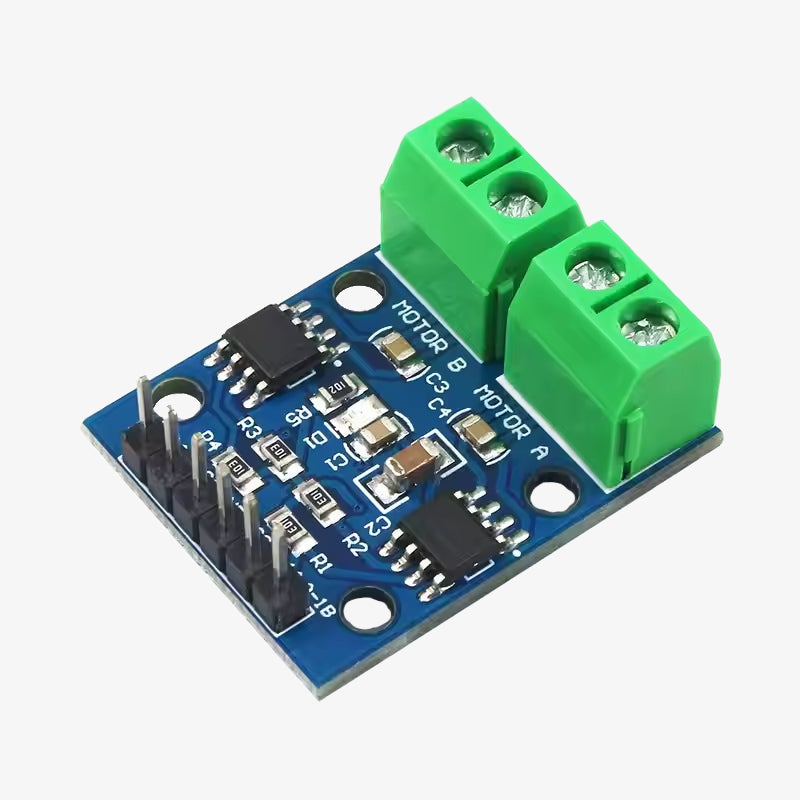

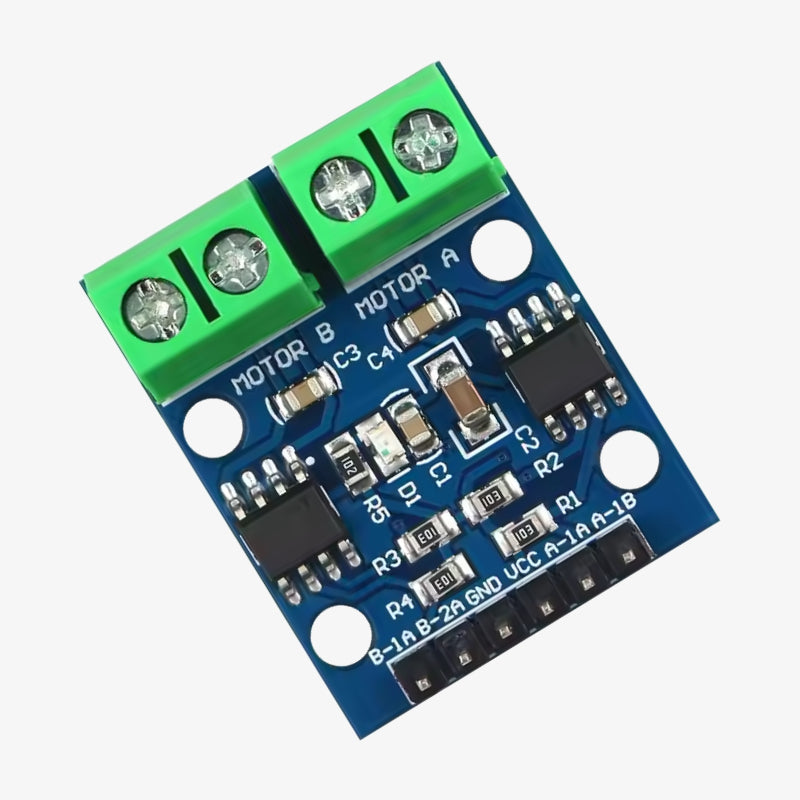

L9110S Dual DC Stepper Motor Driver Board Module

The L9110S Dual DC Stepper Motor Driver Module is a compact and efficient solution for driving small DC motors and stepper motors, making it ideal for robotics and DIY electronics projects. This module features two independent motor driver chips and is compatible with both 3.3V and 5V microcontrollers, making it versatile and easy to integrate into various applications.

L9110S Dual DC Stepper Motor Driver Module Features:

• Dual Motor Support: Drives two DC motors or a single 4-wire, 2-phase stepper motor.
• Wide Voltage Range: Operates between 2.5V and 12V, suitable for various motor types.
• Independent Channels: Two L9110S driver chips provide up to 800mA continuous current per channel.
• PWM Speed Control: Supports Pulse Width Modulation (PWM) for motor speed adjustment.
• Direction Control: Digital outputs allow easy control of motor direction.
• Compact Design: Ultra-small size with mounting holes for easy integration.
• User-Friendly Interfaces:
  • Male header pins for connecting to a microcontroller.
  • Screw terminals for secure motor connections.

L9110S Dual DC Stepper Motor Driver Board Specifications:

• Operating Voltage: 2.5V–12V DC
• Output Current: Up to 800mA per channel
• Motor Compatibility:
  • DC motors
  • 4-wire, 2-phase stepper motors

Package Includes:

1 x L9110S Dual DC Stepper Motor Driver Module
