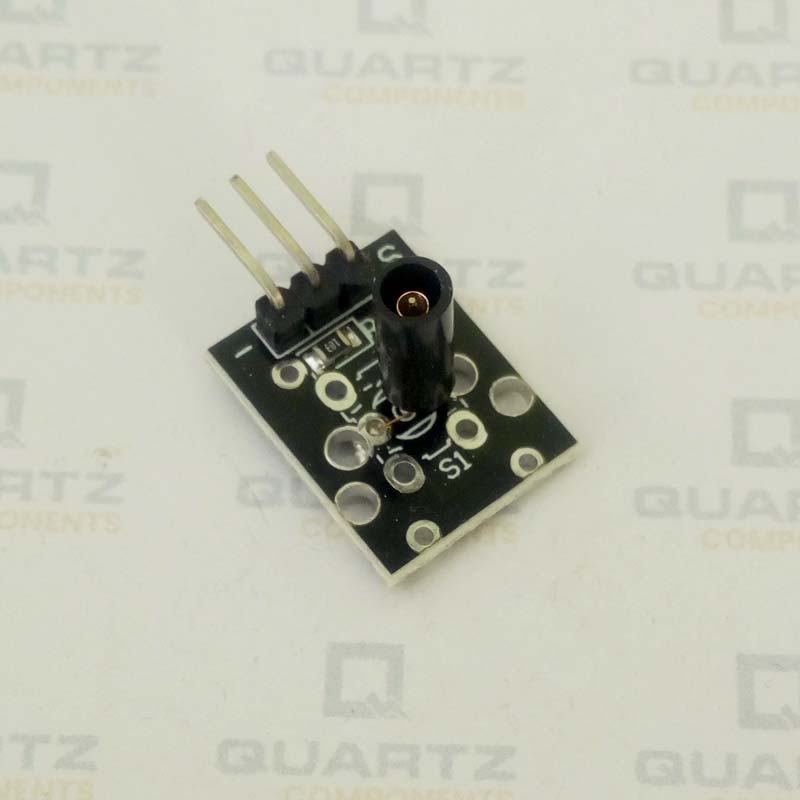

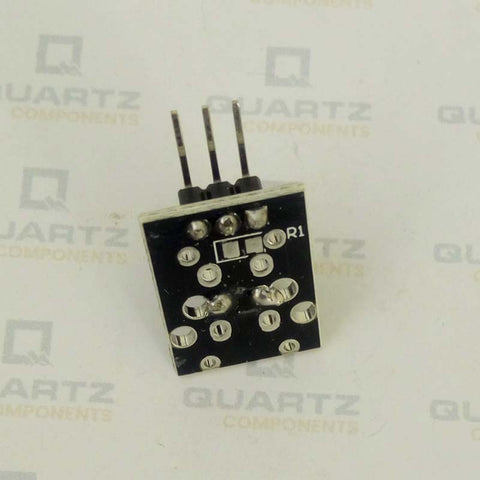

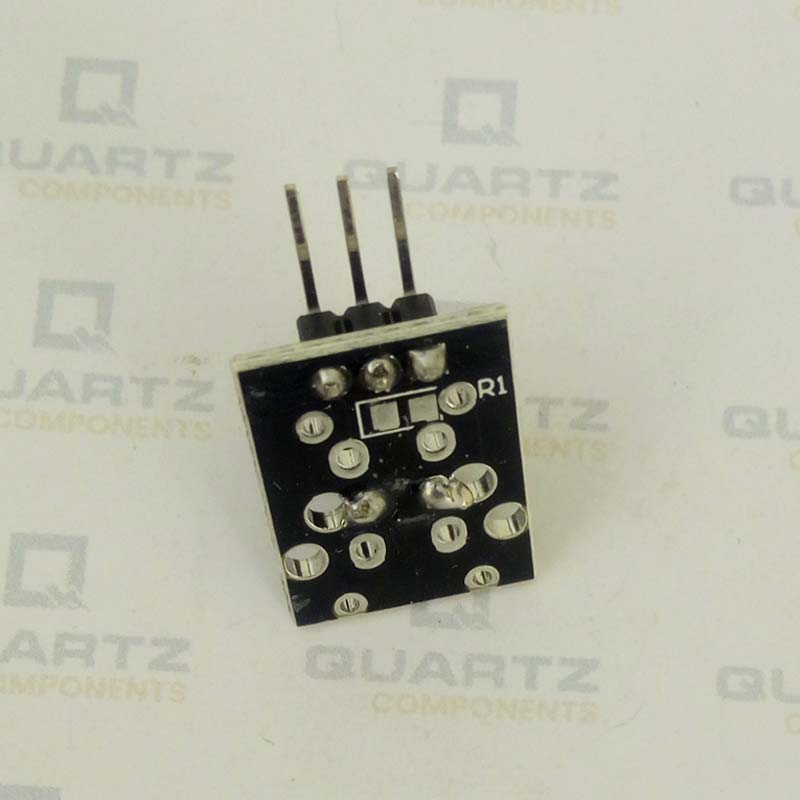

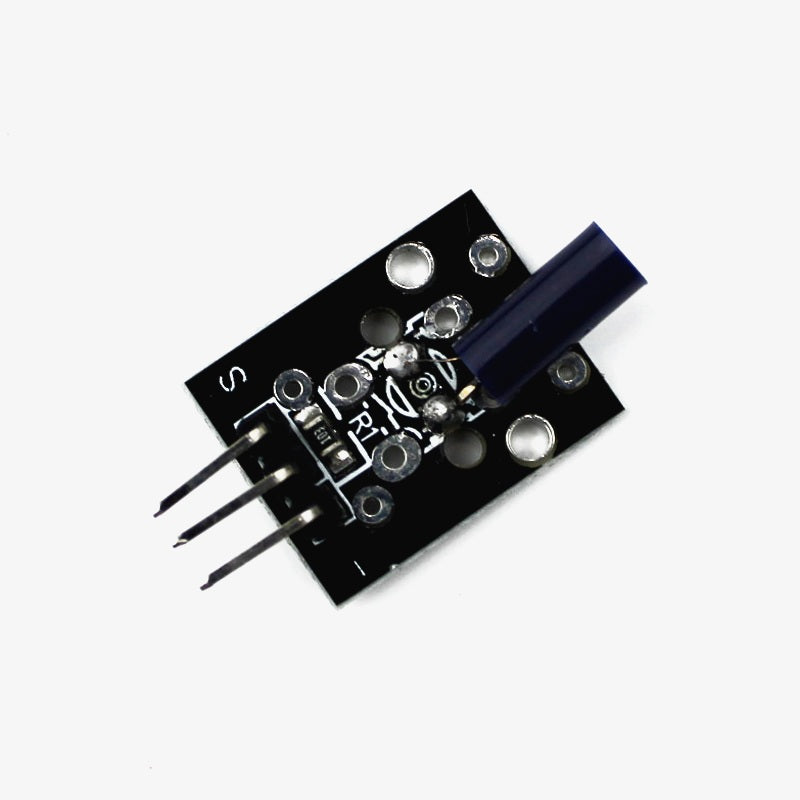

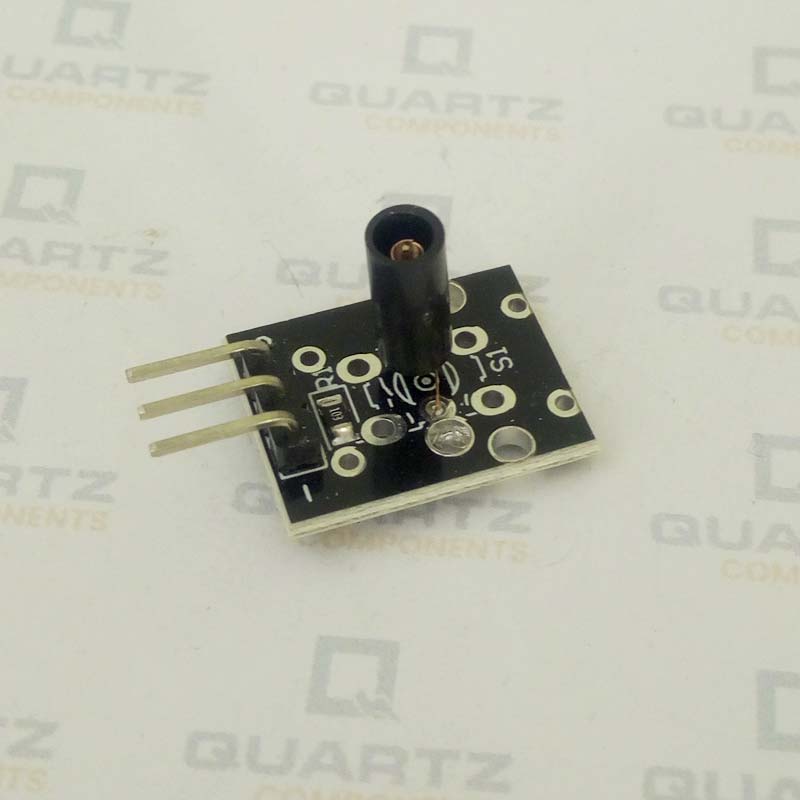

Ky002 Vibration Switch Module Ky002 Vibration Switch Module

QC0803

1 In stock

Rs. 42.00
(Excluding 18% GST)
-
+
Rs. 49.56
(inc. GST)
[Delivery: 2 to 5 days]

Ky002 is a vibration module switch that can be easily interfaced with any microcontroller and could react as a closed switch if vibration is detected. This switch at rest is an open state and when it detects vibration or an external force, it acts as a close state and provides low to high transformation on the digital output pin. It has a capacitive vibration sensor with a 10k resistor. The current consumption is rated as 10mA and the maximum allowed voltage it supports is up to 12V.


KY002 pinout:

KY002 pinout

Specification: -

  1. Capacitive Vibration Sensor
  2. 1.5V to 12V operation
  3. Max current 10mA
  4. Omnidirectional, Vibration from any angle can trigger the sensor.
  5. This Vibration switch can be used as a trigger of the small current circuit.



KY002 Dimension and footprint:

KY002-Dimension

KY002 Applications:

  • Vibration Sensing
  • Impact Sensing
  • Trigger for Fall state



Example Projects on KY002:

KY-002 Application

Additional Resources:

KY002 Datasheet



Package Contains

1x KY002 Module

Ky002 is a vibration module switch that can be easily interfaced with any microcontroller and could react as a closed switch if vibration is detected. This switch at rest is an open state and when it detects vibration or an external force, it acts as a close state and provides low to high transformation on the digital output pin. It has a capacitive vibration sensor with a 10k resistor. The current consumption is rated as 10mA and the maximum allowed voltage it supports is up to 12V.


KY002 pinout:

KY002 pinout

Specification: -

  1. Capacitive Vibration Sensor
  2. 1.5V to 12V operation
  3. Max current 10mA
  4. Omnidirectional, Vibration from any angle can trigger the sensor.
  5. This Vibration switch can be used as a trigger of the small current circuit.



KY002 Dimension and footprint:

KY002-Dimension

KY002 Applications:

  • Vibration Sensing
  • Impact Sensing
  • Trigger for Fall state



Example Projects on KY002:

KY-002 Application

Additional Resources:

KY002 Datasheet



Package Contains

1x KY002 Module
