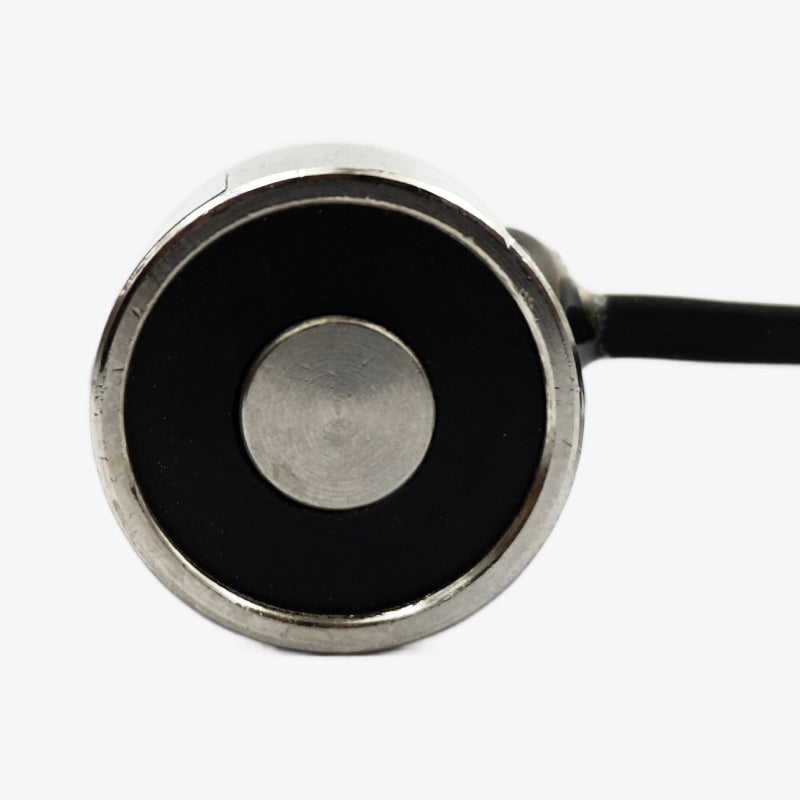

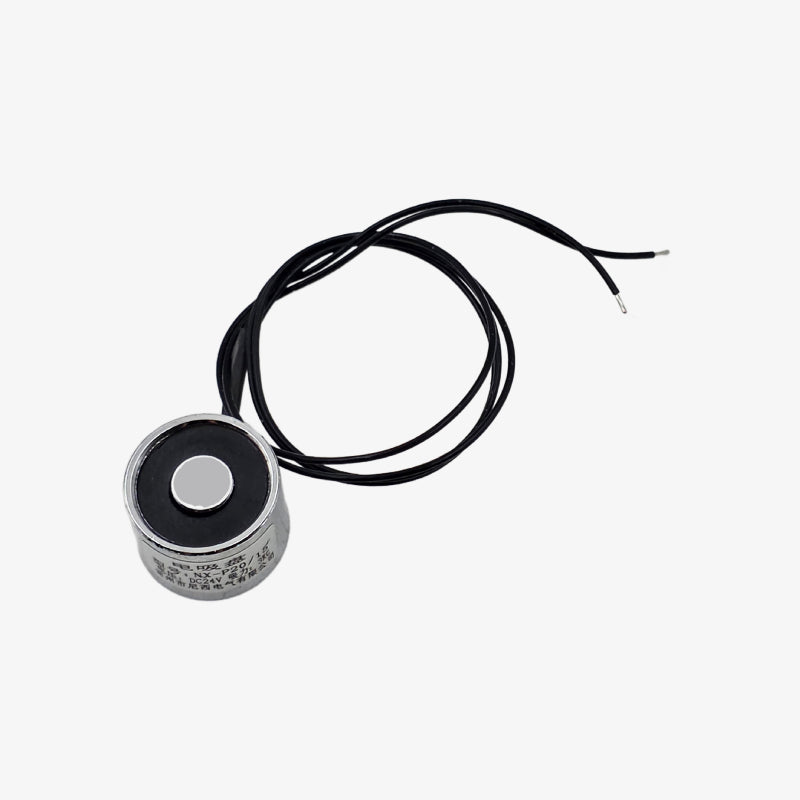

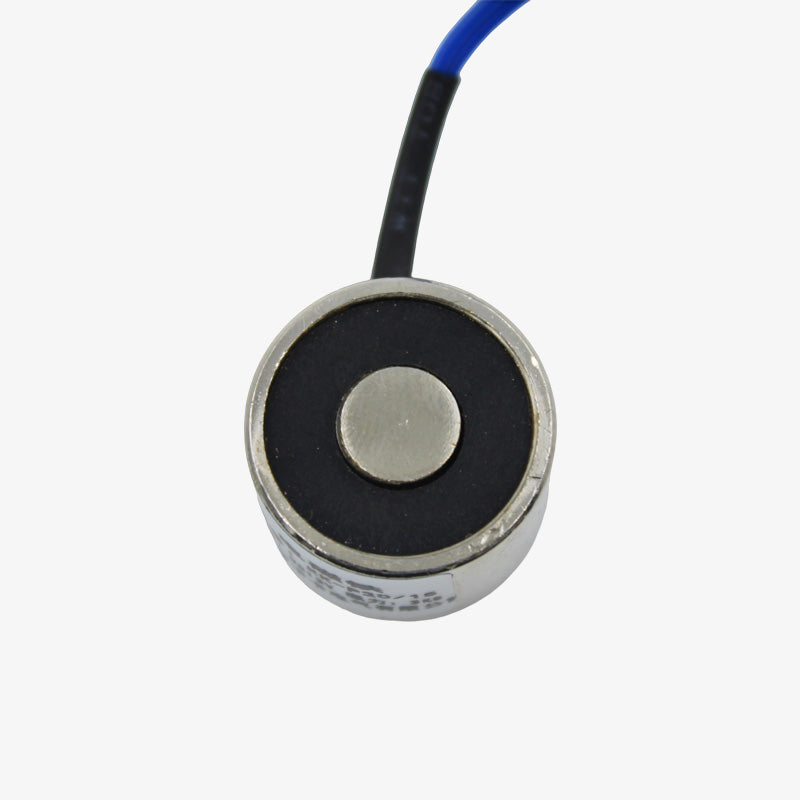

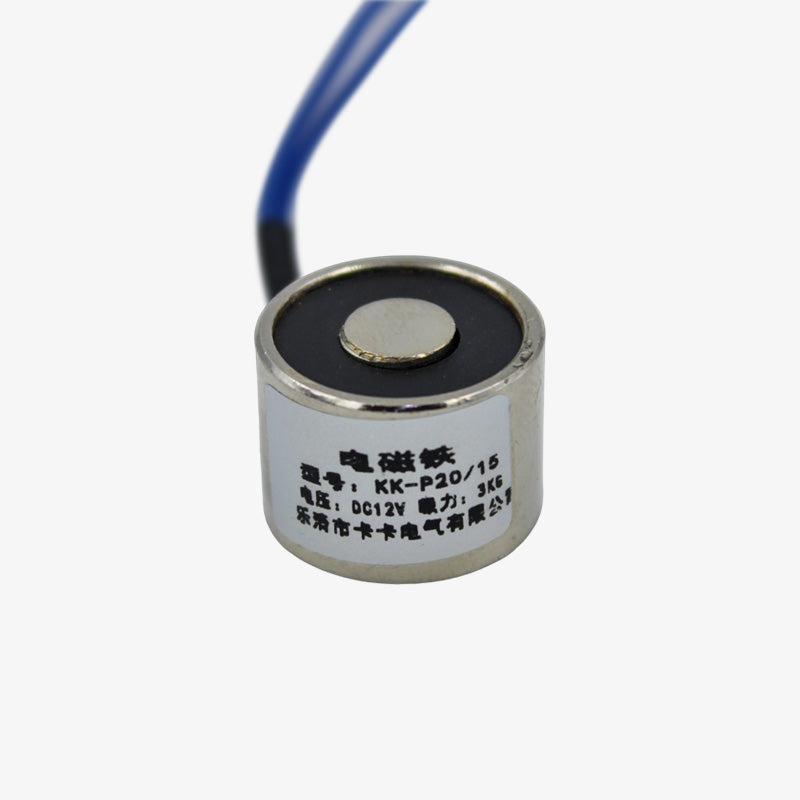

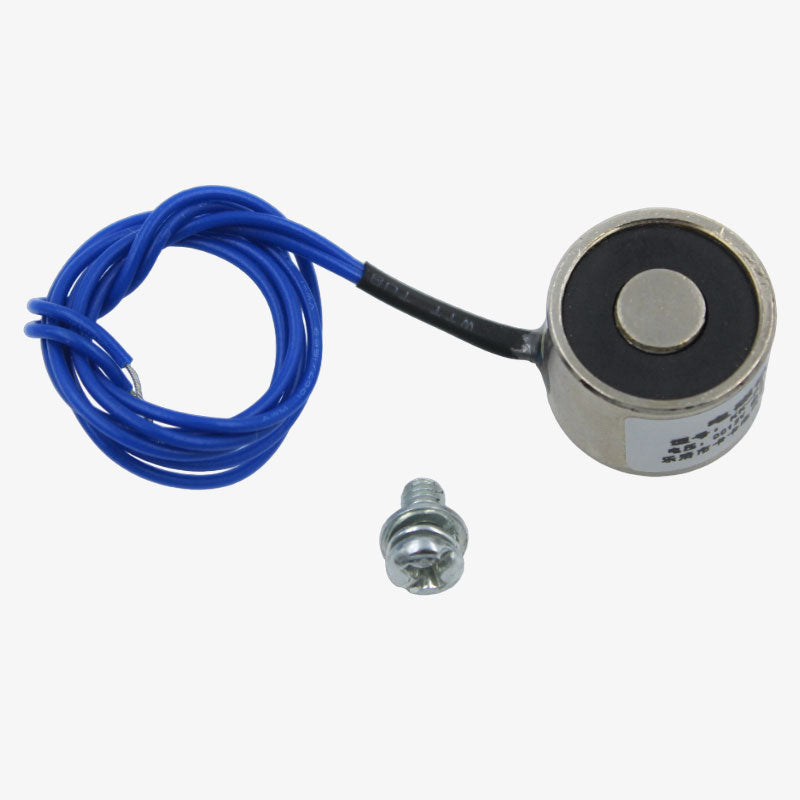

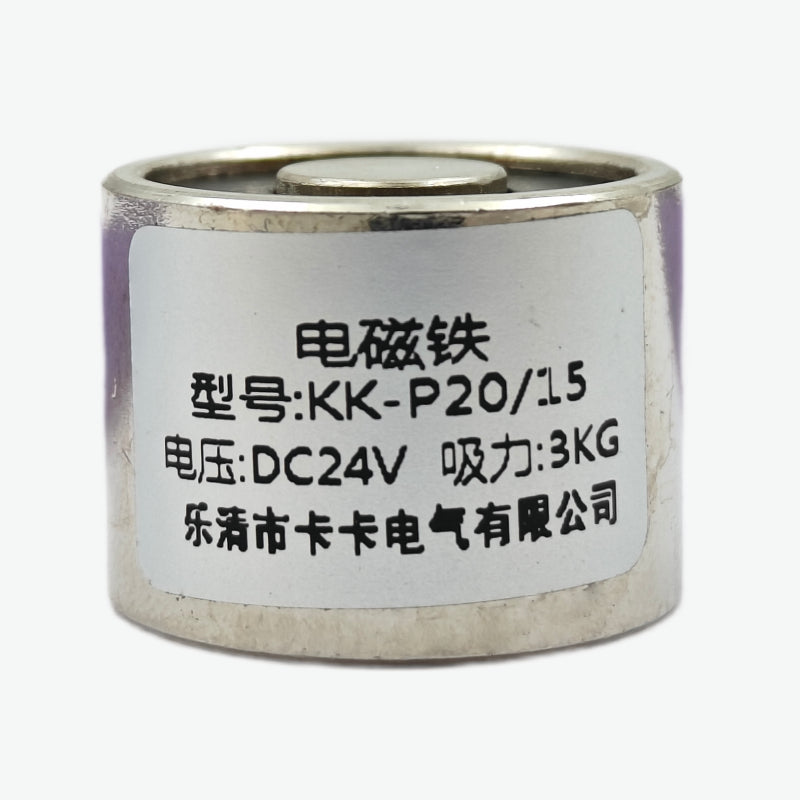

The DC 12V KK-P20/15 3KG Lifting Solenoid Electromagnet operates on the principle of electromagnetism to generate a magnetic field and attract magnetic objects.
Working Principle:
This electromagnet consists of a coil wound around an iron core. When connected to a 12V DC voltage source, it becomes energized, creating a magnetic field. The polarity of the magnetic field depends on the direction of the current flow in the coil, with the north pole determined using the right-hand rule.
Conditions for Maximum Suction:
- The object to be attracted should have good magnetic permeability.
- The object should be flat and clean.
- The object's surface area should be greater than or equal to the cross-sectional area of the electromagnet (20mm x 15mm).
- The object should have a thickness of at least 5mm; thinner objects result in reduced suction.
- The object should be in close proximity to the electromagnet, without gaps or other objects in between.
- The object should be made of an iron-based material for maximum suction.
Specifications:
- Model: 12V KK-P20/15
- Holding/Suction Force: 3 Kg
- Operating Voltage: 12VDC
- Operating Current: 0.17mA
- Power Consumption: 2W
- Operating Temperature Range: -20 to 120 degrees Celsius

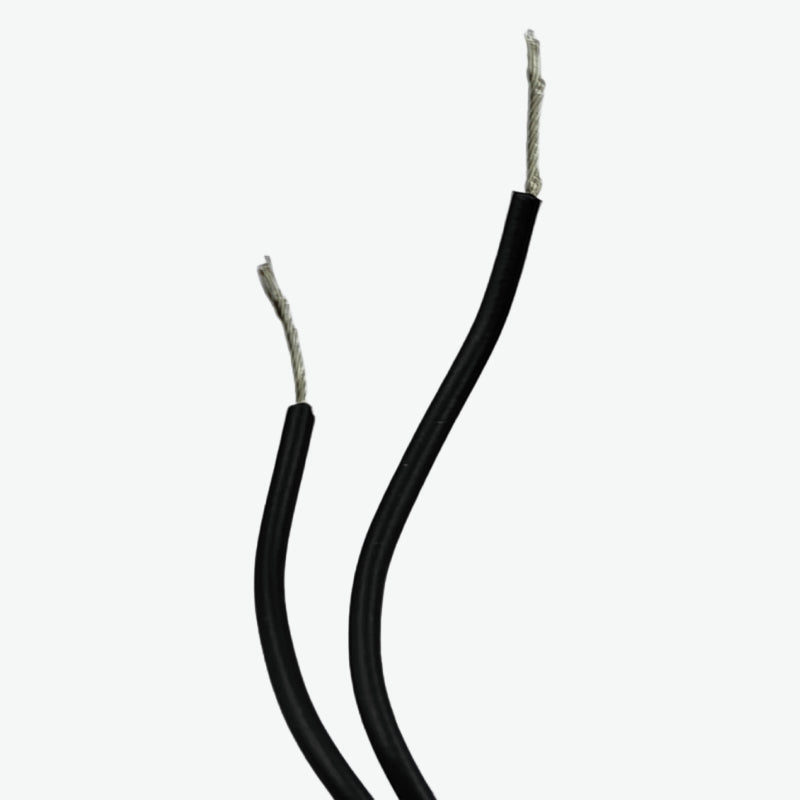

- Cable Length: 30cm

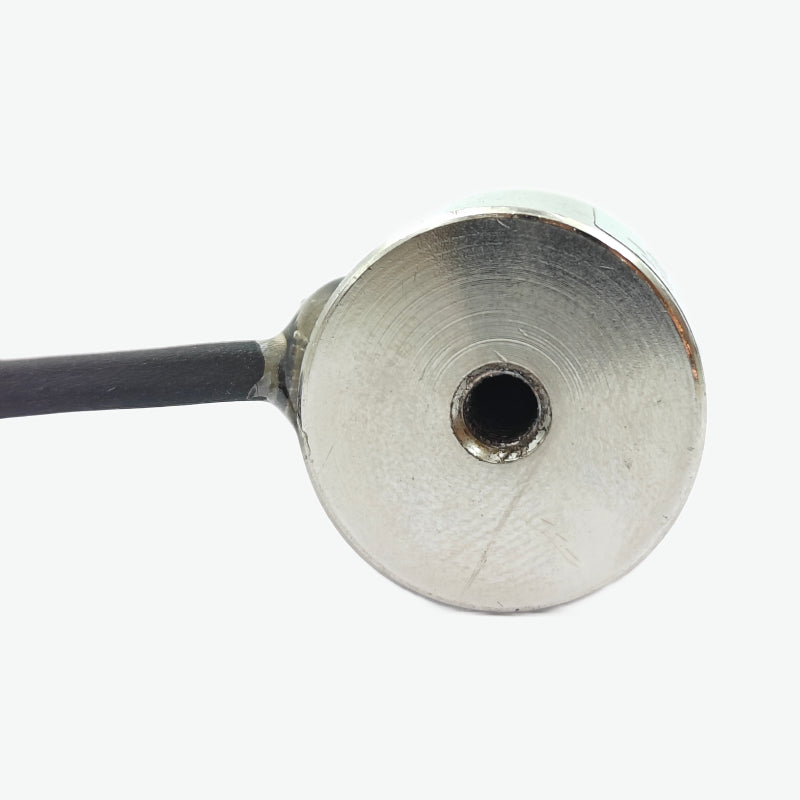

- Bolt Size: M4
- Body Material: Mild Steel
- Dimensions (Diameter x Height): 20mm x 15mm
Package Includes:

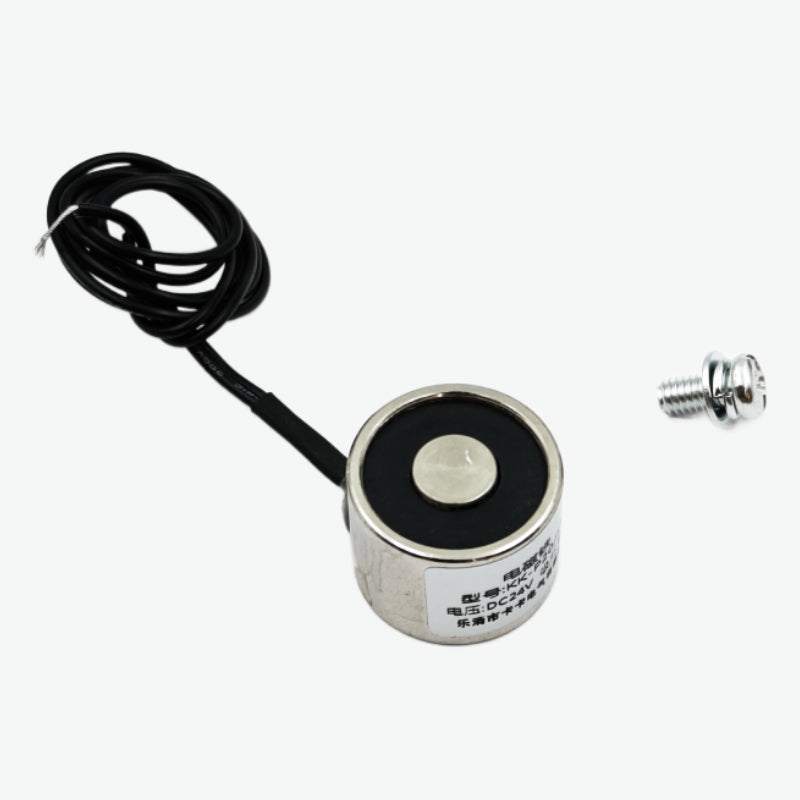

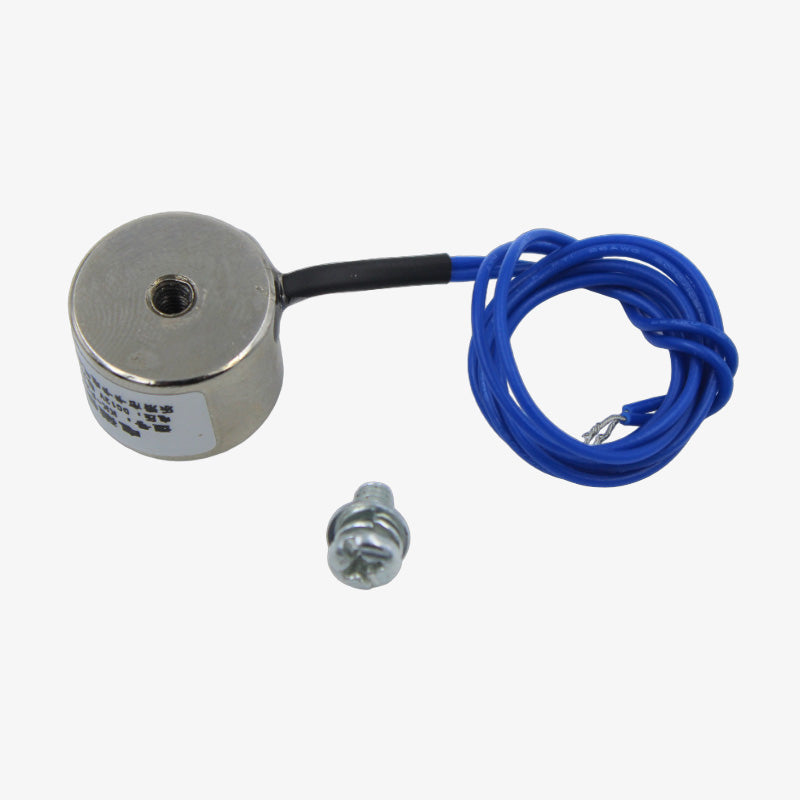

1 x DC 12V KK-P20/15 3KG Lifting Solenoid Electromagnet with bolt and washer.
