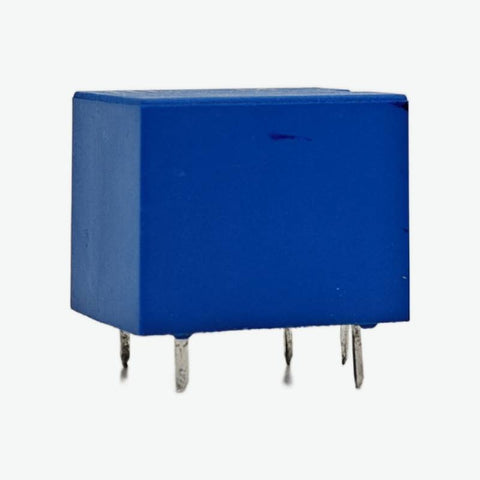

9V DC SPDT 10A Power Relay – 5 Pin PCB Mount
SKU:
BPK-QC3162
Availability:
177
In Stock
- Rs. 28.00
- Rs. 28.00
- Unit price
- per
Subtotal:
Rs. 28.00
Description
xThe JQC-3FC(T73) 9V SPDT Power Relay is a compact and reliable electromagnetic relay designed for medium-power switching applications. Featuring a 9V DC coil, this relay operates with minimal control current while offering high switching capacity up to 10A at 120VAC or 24VDC, making it suitable for both AC and DC loads. With an SPDT (Single Pole Double Throw) configuration, it allows switching between two outputs, which makes it highly versatile for use in automation, timer circuits, motor controllers, home appliances, and industrial control panels.
Features of JQC-3FC(T73) DC 9V Relay:
- 9V DC coil voltage for control logic
- SPDT (1 Form C) contact type
- Supports 10A switching at 120VAC or 24VDC
- Maximum rating: 7A 250VAC, 10A 120VAC, 10A 24VDC, 12A 120V resistive
- Standard 50/60Hz frequency
- Insulated blue plastic casing
- Reliable operation for AC/DC load control
- CE and CQC certified
Specifications of JQC-3FC(T73) DC 9V Relay:

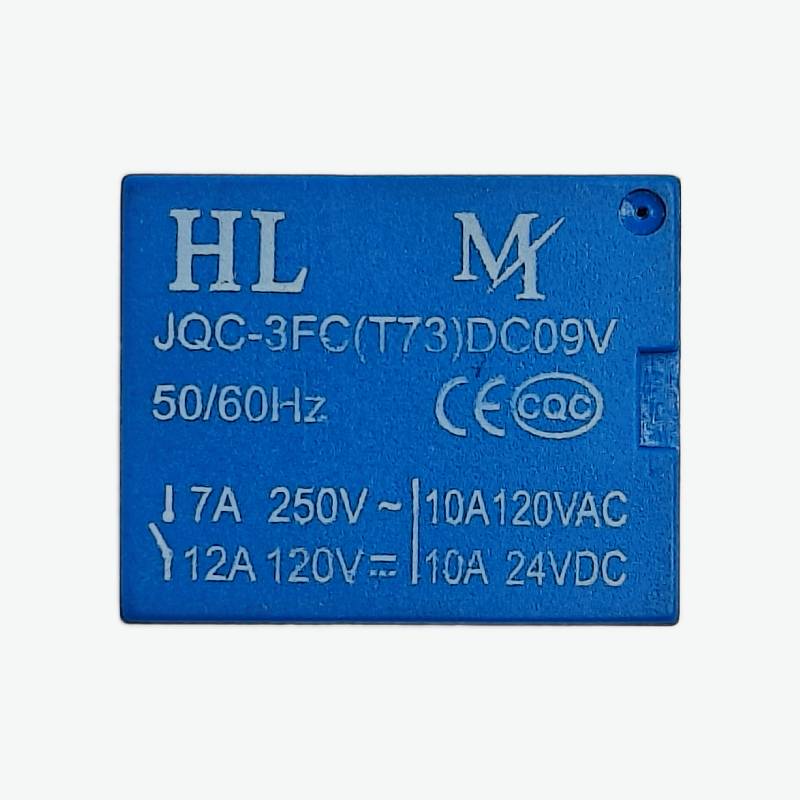

- Model: JQC-3FC(T73) DC09V
- Coil Voltage: 9V DC
- Contact Configuration: SPDT (1 Form C)
- Rated Current: Up to 10A
- Rated Voltage: 250V AC / 120V AC / 24V DC
- Operating Frequency: 50/60Hz

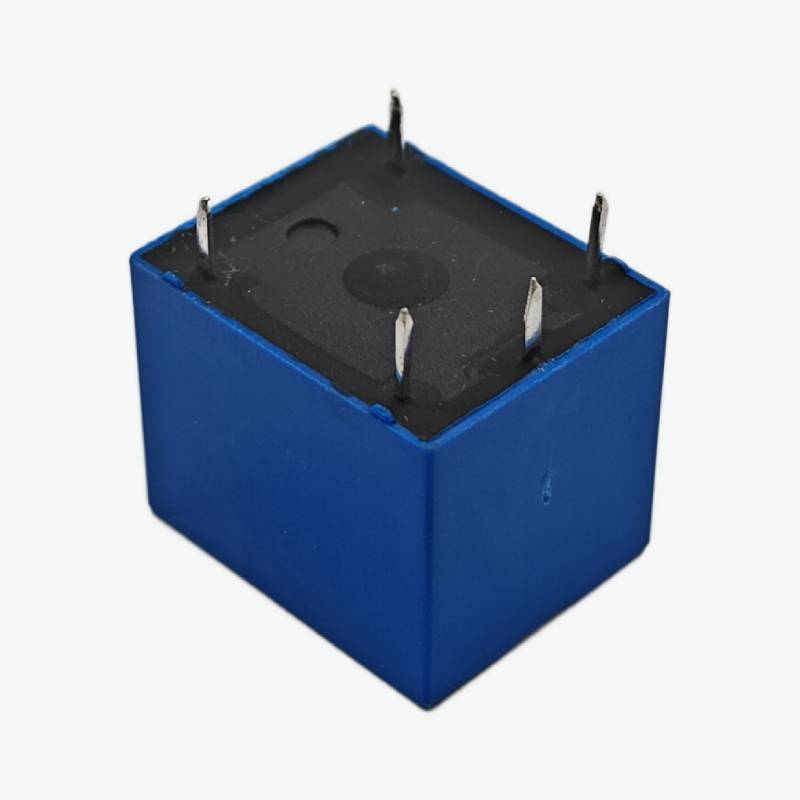

- Pin Type: 5-pin
- Mounting: Through-hole / PCB Mount
- Dimensions: Standard relay size
Package Includes:
1 × JQC-3FC(T73) DC 9V SPDT 10A Power Relay –5 Pin PCB Mount
