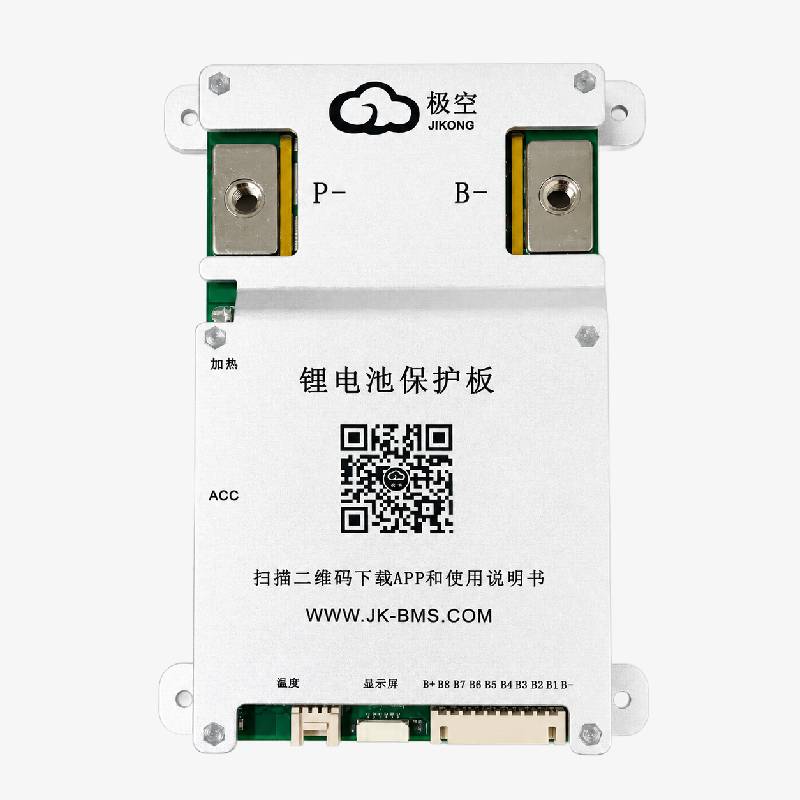

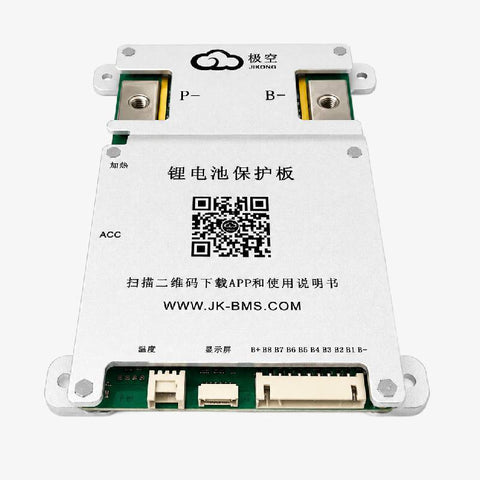

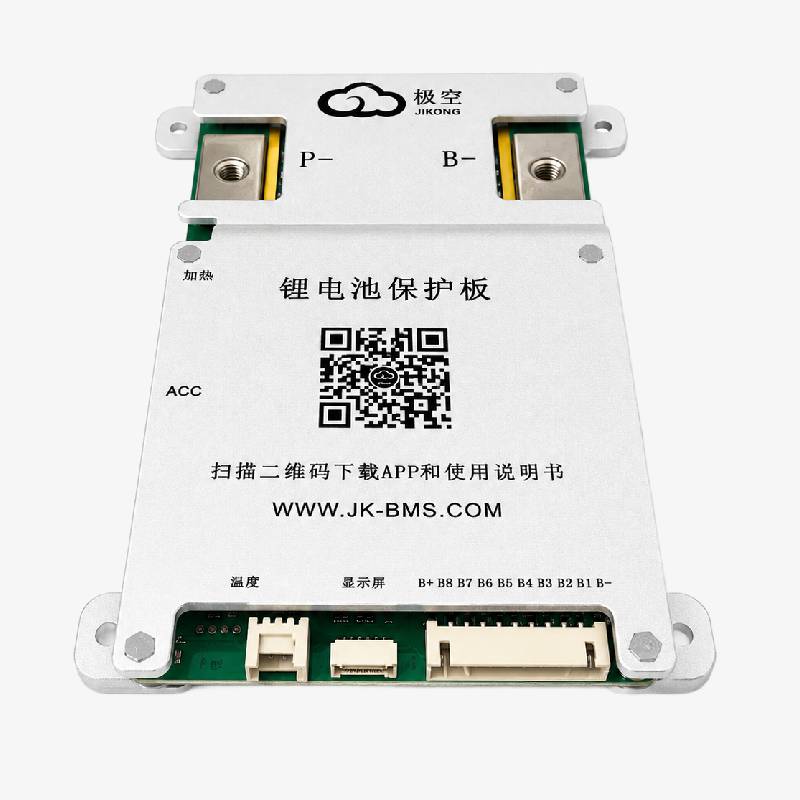

JK-BMS 4S to 8S 100A Smart BMS with Active Balancer for Lithium Battery Pack

JK-BMS 4S to 8S 100A Smart BMS is an intelligent battery management system designed for 4S to 8S lithium battery packs. It supports Li-ion, LiFePO4, and LTO battery chemistries and provides up to 100 A continuous discharge capability with a 1 A active balancing function. Integrated Bluetooth connectivity allows real-time monitoring and parameter configuration through the JK BMS application, while protection functions help safeguard the battery pack against overcharge, over-discharge, over-current, short circuit, and temperature-related conditions.

Features:

1. Supports 4S to 8S lithium battery configurations.
2. 100 A continuous discharge current.
3. 1 A active cell balancing.
4. Supports Li-ion, LiFePO4, and LTO battery chemistries.
5. Integrated Bluetooth for wireless monitoring and configuration.
6. Real-time cell voltage, temperature, and battery status monitoring.
7. Protection against overcharge and over-discharge.
8. Over-current and short-circuit protection.
9. Temperature monitoring and protection.
10. Supports external CAN/RS485 communication modules.
11. Suitable for 12 V and 24 V lithium battery packs.
12. Suitable for energy storage, solar systems, UPS, RV, and other high-current battery applications.

Specifications:

Also Check These Out:

JK-BMS 4S to 8S 40A Smart BMS with Active Balancer for Lithium Battery Pack

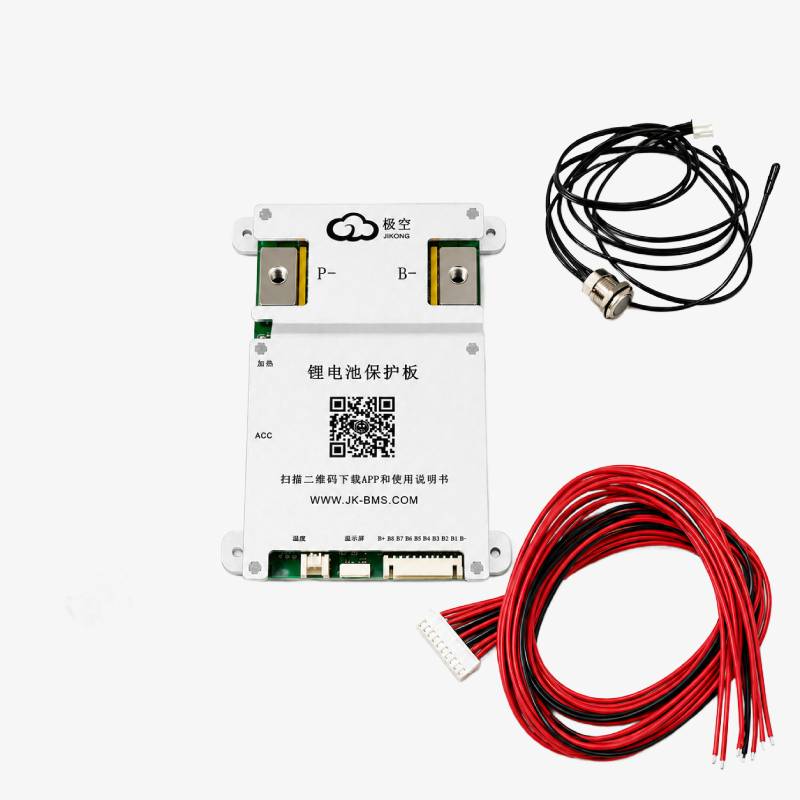

Package Includes:

1 × JK-BMS 4S to 8S 100A Smart BMS with Active Balancer
1 × Balance/Sampling Cable
1 × Temperature Sensor (NTC)
1 × Switch Button
