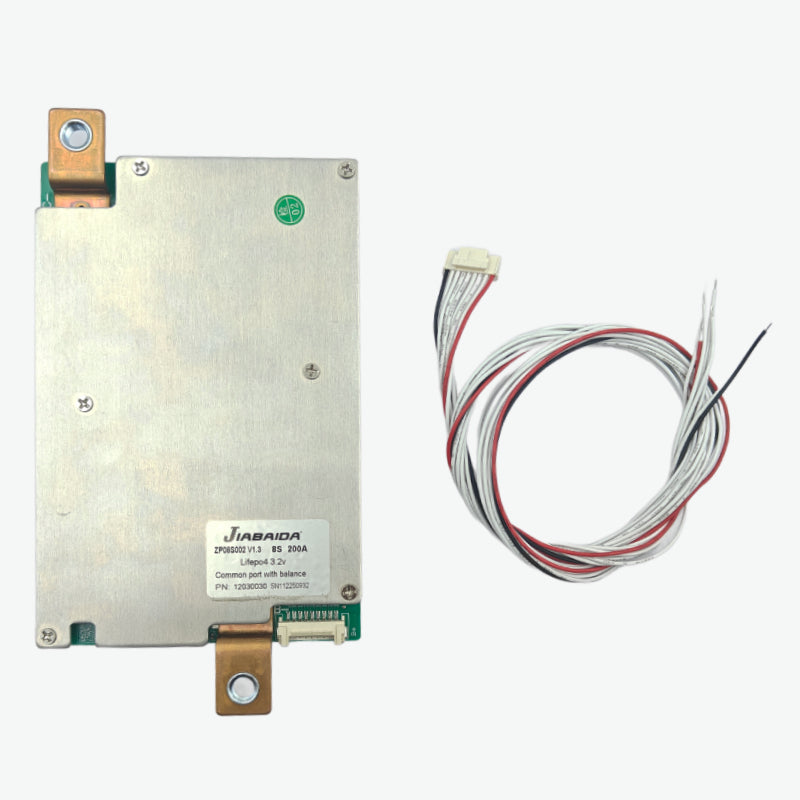

Jiabaida (JBD) LiFePo4 8S 25.6V 200A Battery Management System (BMS) - With Heat Sink Plate
SKU:
BCL-QC3131
Availability:
1
In Stock
- Rs. 3,850.00
- Rs. 3,850.00
- Unit price
- per
Subtotal:
Rs. 3,850.00
Description
xJiabaida (JBD) LiFePo4 8S 25.6V 200A is a high-performance Battery Management System (BMS) built on the ZP08S002 hardware, tailored for 8-cell LiFePo4 battery packs requiring ultra-high current output. This BMS features passive balancing, a large heat sink plate for thermal stability, and robust protections including overcharge, over-discharge, short circuit, and overcurrent. It supports continuous discharge up to 200A, making it ideal for EVs, solar inverters, and other high-power LiFePo4 battery applications.
Jiabaida (JBD) LiFePo4 8S 25.6V 200A BMS Features:
- Ultra-high 200A continuous discharge support

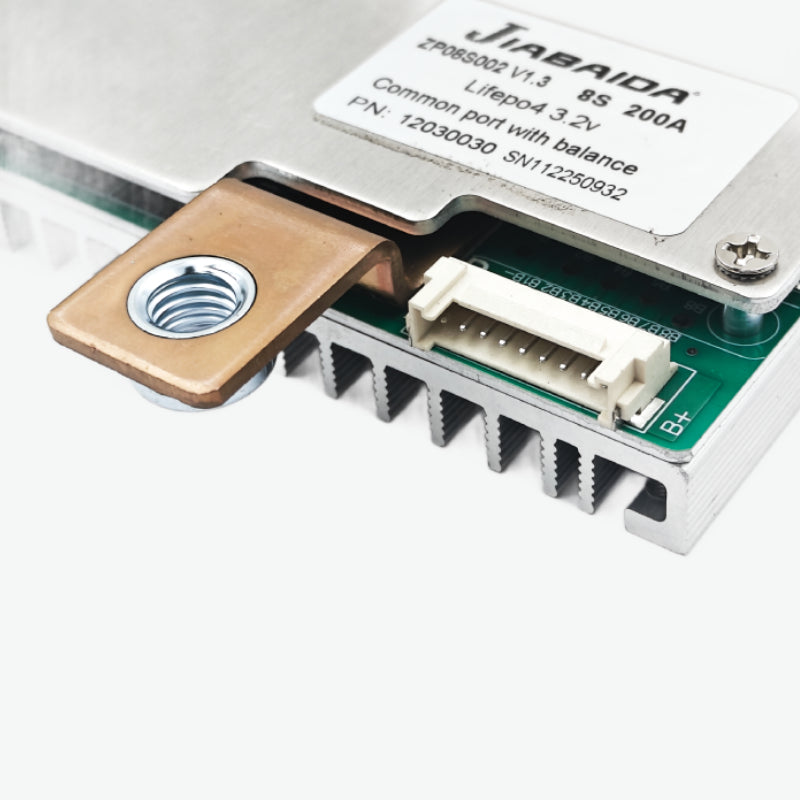

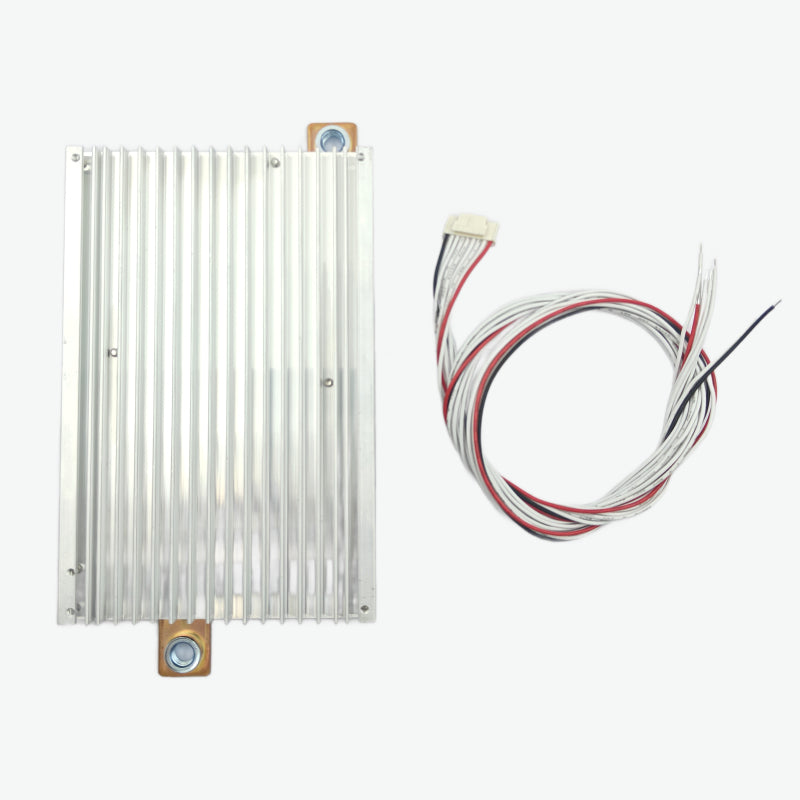

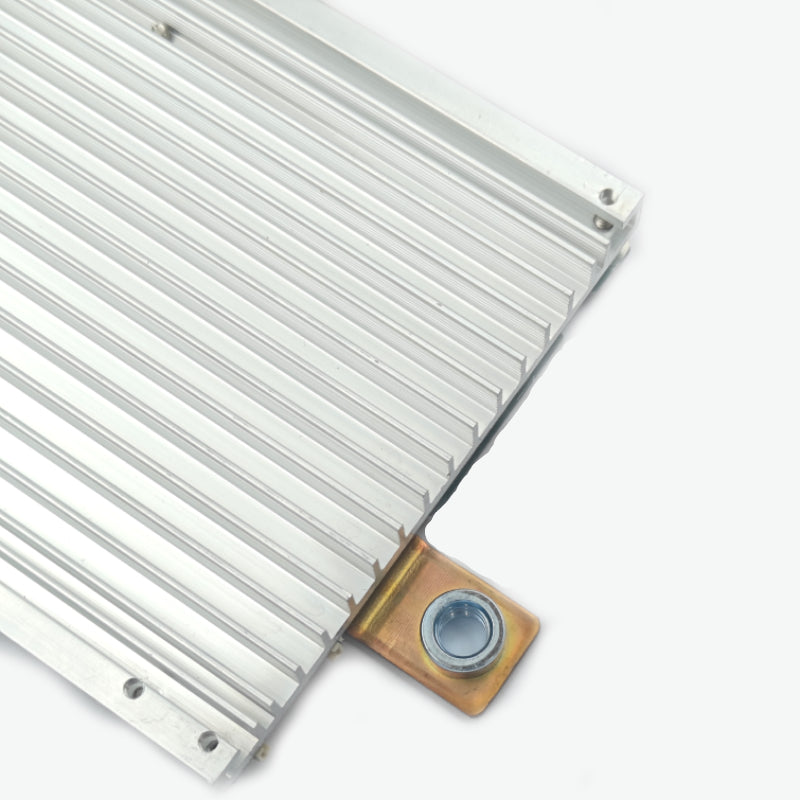

- Large aluminum heat sink plate for enhanced thermal management
- Passive cell balancing for battery longevity
- Built-in protections for over-voltage, under-voltage, short circuit, and overcurrent
- Based on ZP08S002 hardware for precise power management
- Suitable for high-load LiFePo4 battery-powered applications
Jiabaida (JBD) LiFePo4 8S 25.6V 200A BMS Specifications:
| Specification | Value |
|---|---|
| Model | ZP08S002 |
| Supported Cells | 8S (LiFePo4) |
| Nominal Voltage (V) | 25.6V |
| Charge Voltage (V) | 29.2V |
| Charge Current (A) | 60A |
| Continuous Discharge Current (A) | 200A |
| Balance Current (mA) | 30 ±5 |
| Balance Type | Passive |
| Overcharge Detect Voltage (V) | 3.75 ±0.05 |
| Overcharge Release Voltage (V) | 3.55 ±0.05 |
| Over Discharge Detect Voltage (V) | 2.20 ±0.1 |
| Over Discharge Release Voltage (V) | 2.50 ±0.1 |
| Short Circuit Protection | Yes |
| Overcurrent Protection | Yes |
| Temperature Protection | Yes |
| Cooling | Aluminum Heat Sink Plate |
| Operating Temperature (°C) | -20 to 70 |
| Dimensions (mm) | 160 x 105 x 18 |
Package Includes:
1 x Jiabaida (JBD) LiFePo4 8S 25.6V 200A Battery Management System - BMS Protection Board
