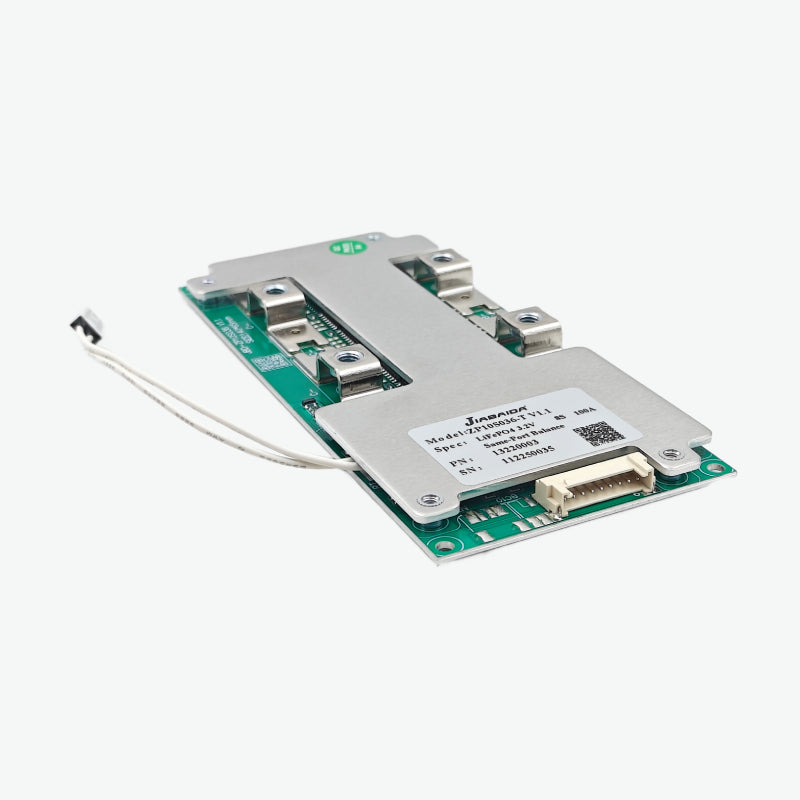

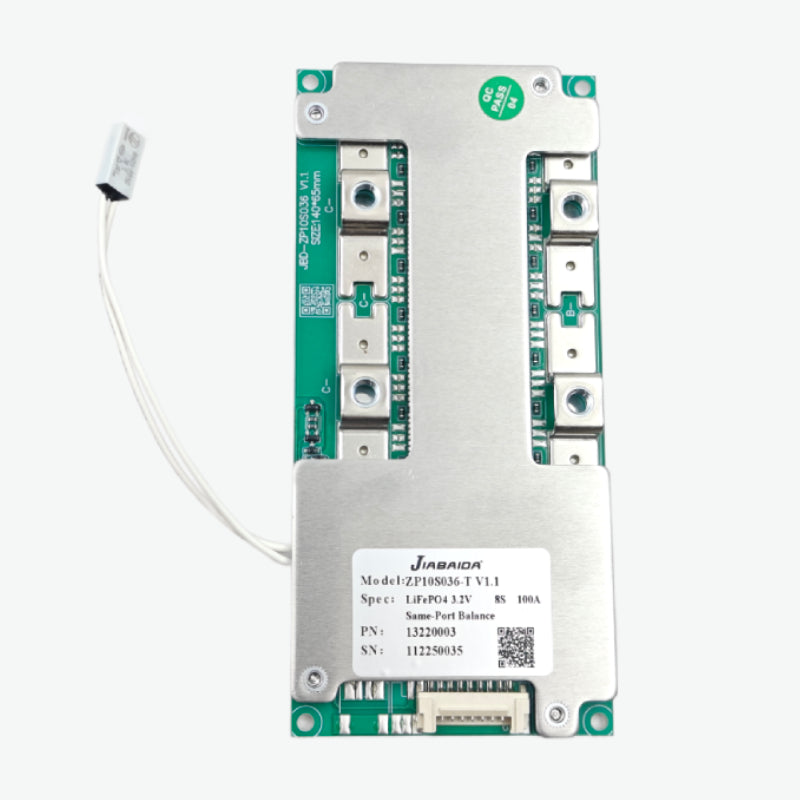

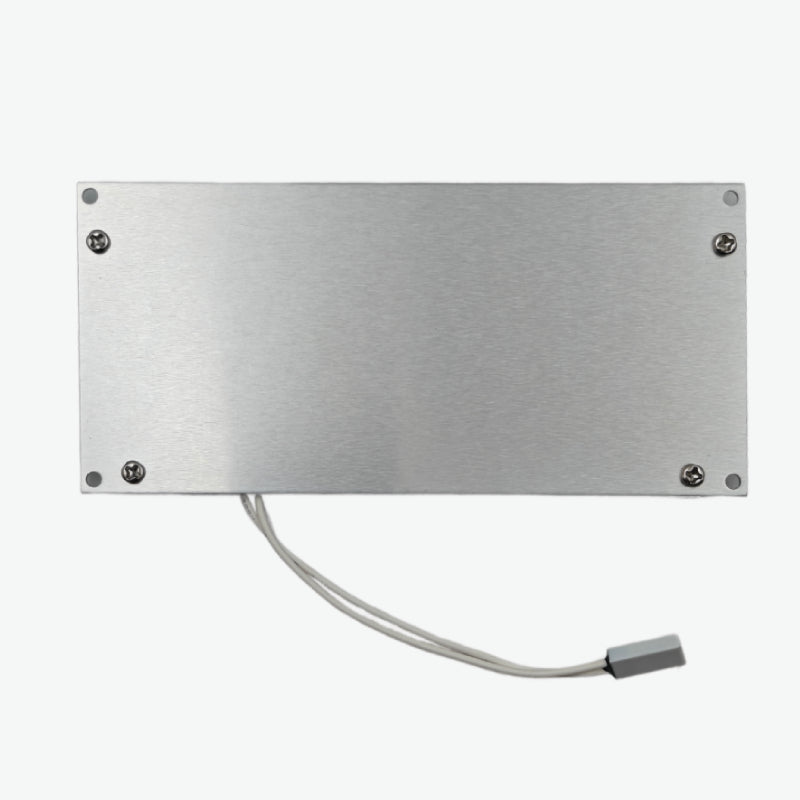

Jiabaida (JBD) LiFePo4 8S 25.6V 100A Battery Management System - BMS Protection Board
SKU:
BCL-QC3072
Availability:
Out Of Stock
- Rs. 1,780.00
- Rs. 1,780.00
- Unit price
- per
Subtotal:
Rs. 1,780.00
Description
xJiabaida (JBD) LiFePo4 8S 25.6V 100A is a high-performance Battery Management System (BMS) built on the ZP10S036 hardware, tailored for 8-cell LiFePo4 battery packs requiring high current output. This BMS features passive balancing, robust protection against overcharge, over-discharge, short circuit, and overcurrent, and supports continuous discharge up to 100A. It is ideally suited for electric vehicles, solar energy systems, and other high-power LiFePo4 battery applications where reliability and efficiency are critical.
Jiabaida (JBD) LiFePo4 8S 25.6V 100A BMS Features:
- High 100A continuous discharge support
- Intelligent passive cell balancing
- Built-in protections for over-voltage, under-voltage, overcurrent, and short circuit
- ZP10S036 hardware platform for precise battery management
- Suitable for high-load LiFePo4 battery-powered systems
Jiabaida (JBD) LiFePo4 8S 25.6V 100A BMS Specification:
| Specification | Value |
|---|---|
| Model | ZP10S036 |
| Supported Cells | 8S (LiFePo4) |
| Nominal Voltage (V) | 25.6V |
| Charge Voltage (V) | 29.2V |
| Charge Current (A) | 50A |
| Continuous Discharge Current (A) | 100A |
| Balance Current (mA) | 30 ±5 |
| Overcharge Detect Voltage (V) | 3.75 ±0.05 |
| Overcharge Release Voltage (V) | 3.55 ±0.05 |
| Over Discharge Detect Voltage (V) | 2.20 ±0.1 |
| Over Discharge Release Voltage (V) | 2.50 ±0.1 |
| Operating Temperature (°C) | -20 to 70 |
| Dimensions (mm) | 140 x 65 x 12mm |
Package Includes:
1 x Jiabaida (JBD) LiFePo4 8S 25.6V 100A Battery Management System - BMS Protection Board
