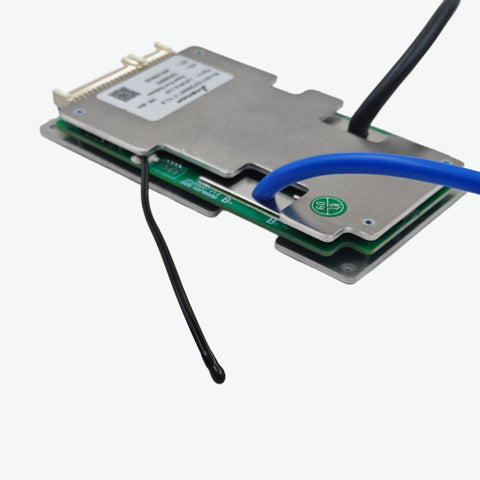

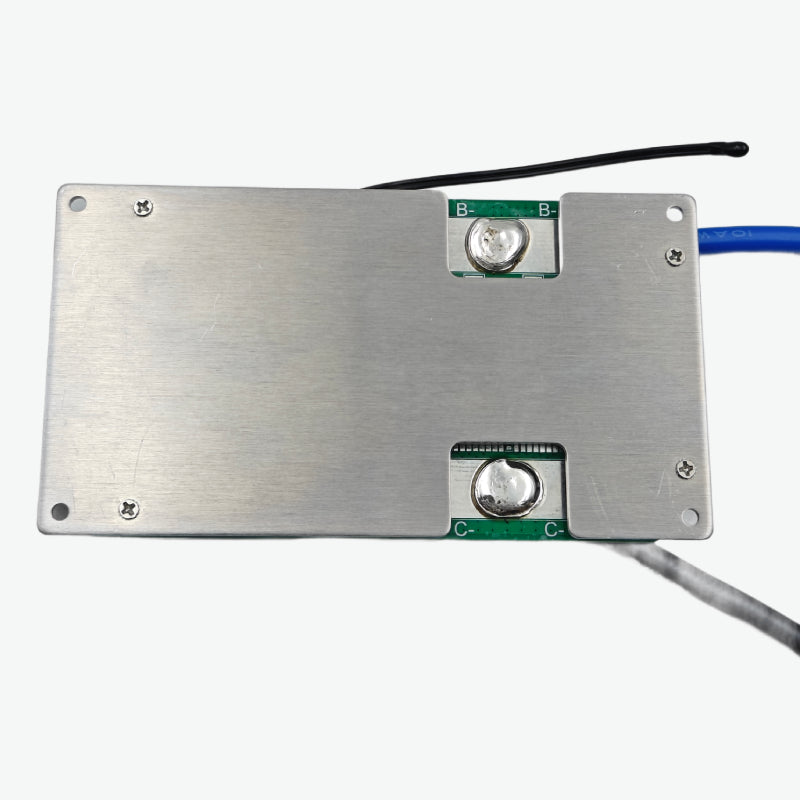

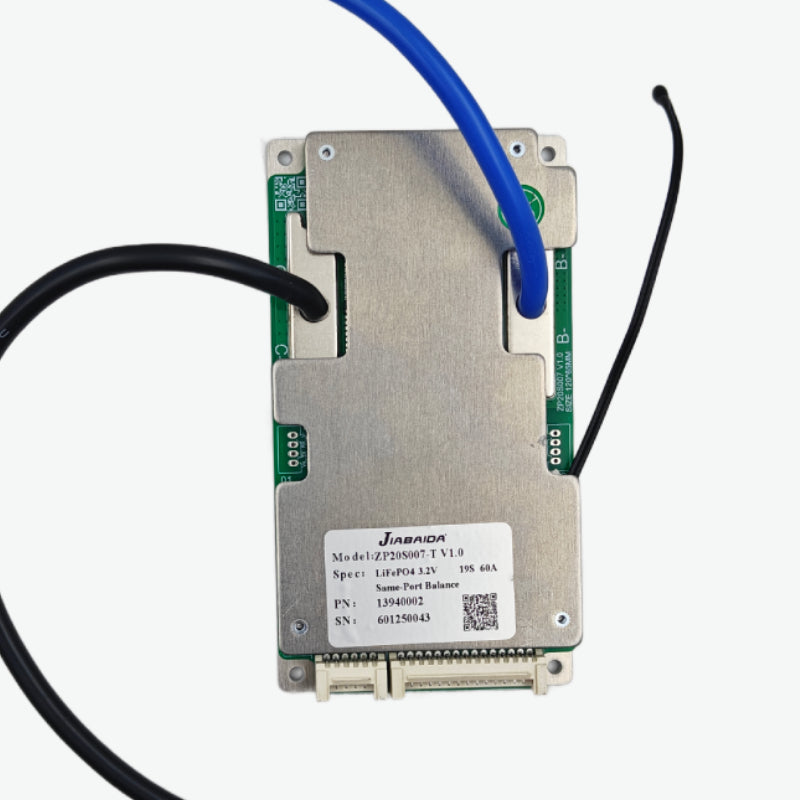

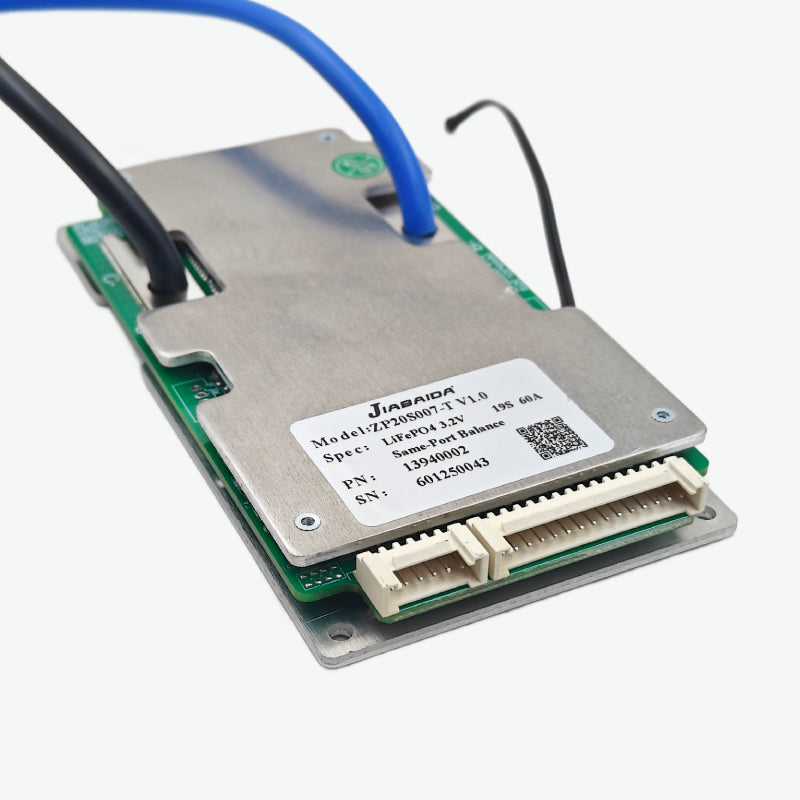

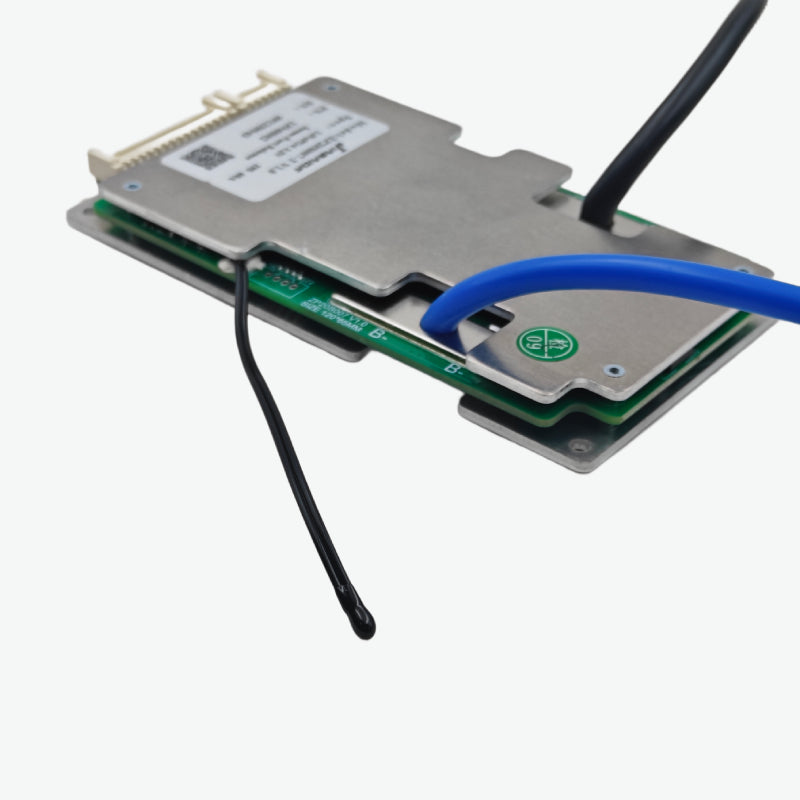

Jiabaida (JBD) LiFePo4 19S 60.8V 60A Battery Management System - BMS Protection Board
SKU:
BCL-QC3076
Availability:
2
In Stock
- Rs. 2,099.00
- Rs. 2,099.00
- Unit price
- per
Subtotal:
Rs. 2,099.00
Description
xJiabaida (JBD) LiFePo4 19S 60.8V 60A is a high-efficiency Battery Management System (BMS) designed with TP20S001 hardware, tailored for 19-cell LiFePo4 battery packs. This BMS offers intelligent passive balancing, advanced safety features, and a durable build suitable for high-power systems such as electric bikes, energy storage, and power backup units. It protects the battery pack from overcharging, over-discharging, short circuits, and excessive current, ensuring long battery life and stable performance.
Jiabaida (JBD) LiFePo4 19S 60A BMS Features:
- 60A continuous discharge current for high-load applications
- Intelligent passive balancing for cell voltage stability
- Integrated protection: over-voltage, under-voltage, short circuit, and overcurrent
- TP20S001 hardware ensures reliable operation and precision control
- Suitable for large LiFePo4 battery-powered systems
Jiabaida (JBD) LiFePo4 19S 60A BMS Specification:
| Specification | Value |
|---|---|
| Model | TP20S001 |
| Supported Cells | 19S (LiFePo4) |
| Nominal Voltage (V) | 60.8V |
| Charge Voltage (V) | 69.35V |
| Charge Current (A) | 30A |
| Continuous Discharge Current (A) | 60A |
| Balance Current (mA) | 30 ±5 |
| Overcharge Detect Voltage (V) | 3.75 ±0.05 |
| Overcharge Release Voltage (V) | 3.55 ±0.05 |
| Over Discharge Detect Voltage (V) | 2.20 ±0.1 |
| Over Discharge Release Voltage (V) | 2.50 ±0.1 |
| Operating Temperature (°C) | -20 to 70 |
| Dimensions (mm) | 128 x 63 x 12 |

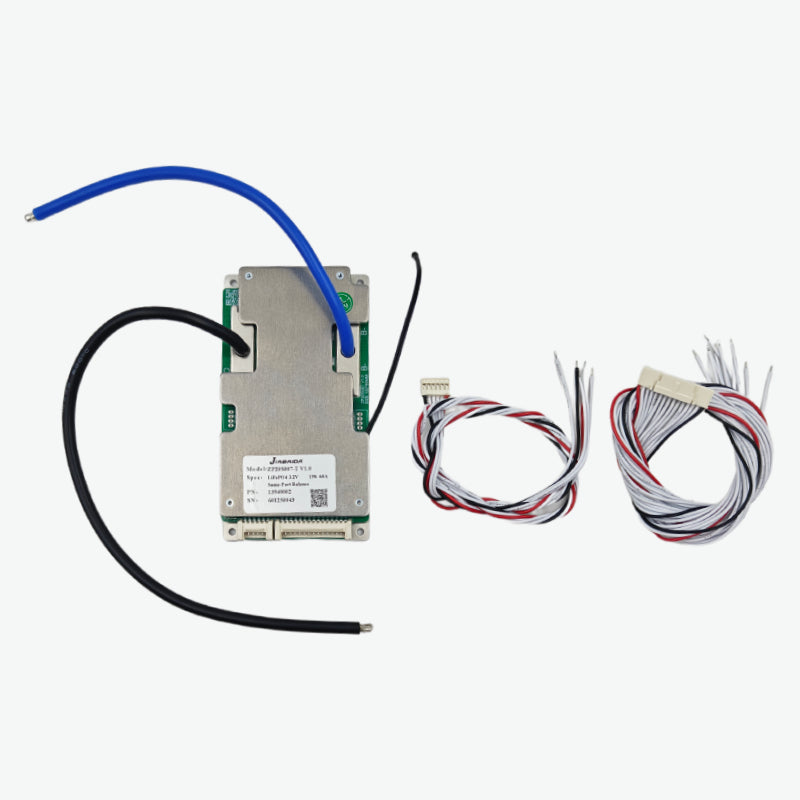

Package Includes:
1 x Jiabaida (JBD) LiFePo4 19S 60A Battery Management System - BMS Protection Board
