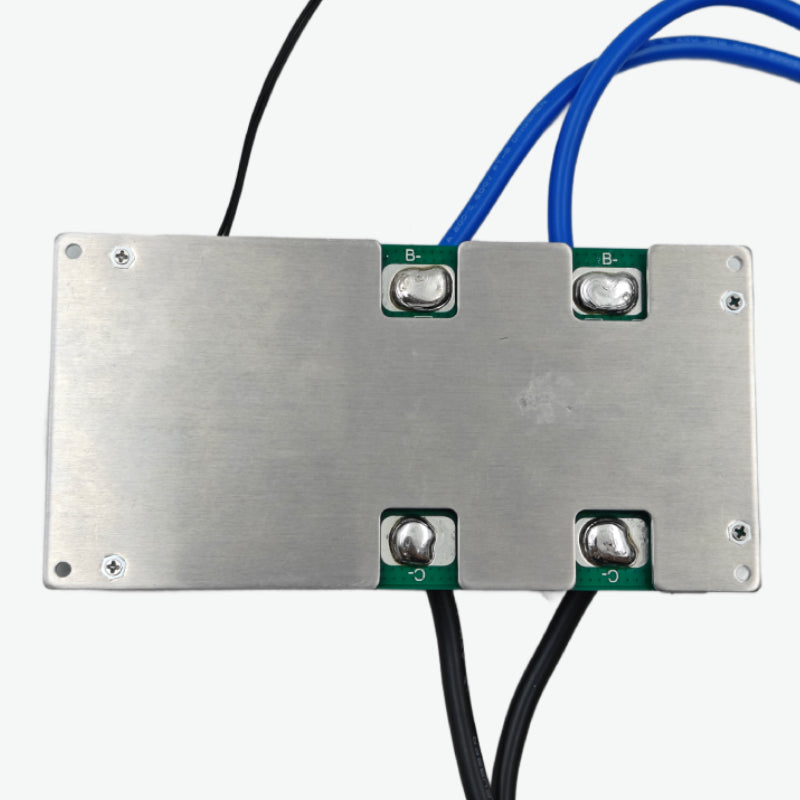

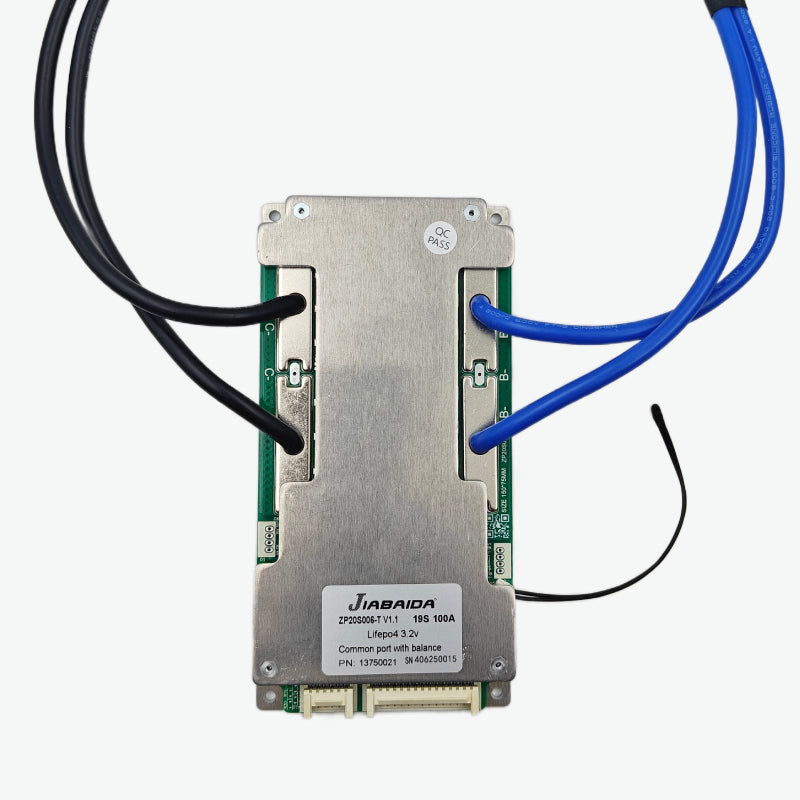

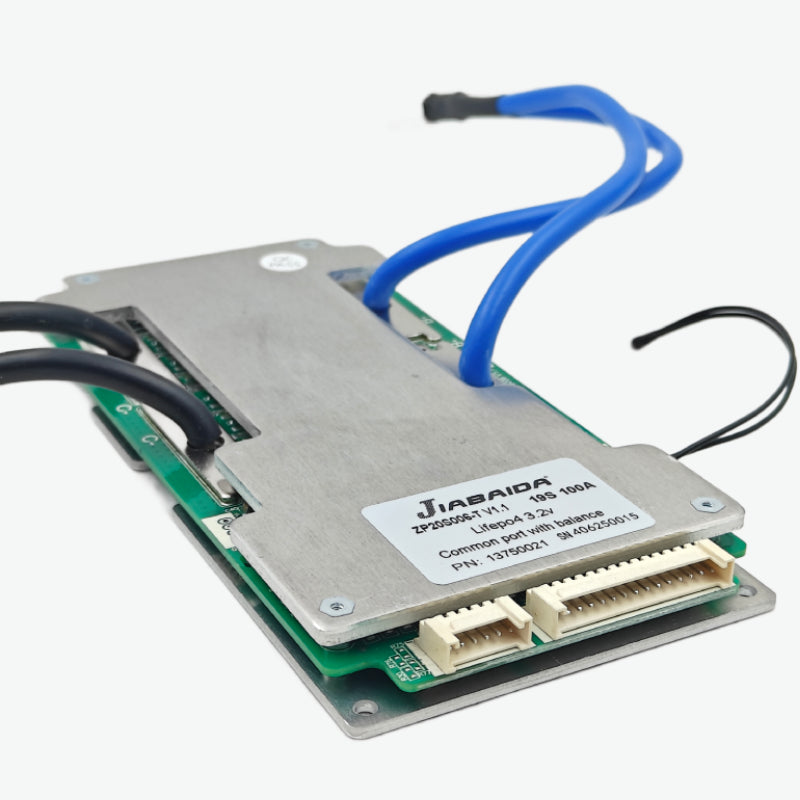

Jiabaida (JBD) LiFePo4 19S 60.8V 100A Battery Management System - BMS Protection Board
SKU:
BCL-QC3079
Availability:
5
In Stock
- Rs. 2,699.00
- Rs. 2,699.00
- Unit price
- per
Subtotal:
Rs. 2,699.00
Description
xJiabaida (JBD) LiFePo4 19S 60.8V 100A BMS is a high-performance Battery Management System designed using the TP20S001 hardware platform for large-scale LiFePo4 battery packs. This BMS supports advanced features such as smart communication, precise cell balancing, and comprehensive protection mechanisms. With a continuous discharge capacity of 100A, it is ideal for high-load applications including solar energy storage, electric vehicles, and industrial-grade battery systems.
Jiabaida (JBD) LiFePo4 19S 60.8V 100A BMS Features:
- Advanced protection against overcharge, over-discharge, overcurrent, and short circuits
- Smart BMS functionality with UART/CAN/RS485 communication support
- Passive cell balancing for optimized pack health and longevity
- TP20S001 platform ensures reliability and accuracy
- Suitable for high-power LiFePo4-based applications
Jiabaida (JBD) LiFePo4 19S 60.8V 100A BMS Specification:
| Specification | Value |
|---|---|
| Model | TP20S001 |
| Supported Cells | 19S (LiFePo4) |
| Nominal Voltage (V) | 60.8 |
| Charge Voltage (V) | 68.4 |
| Charge Current (A) | 50 |
| Continuous Discharge (A) | 100 |
| Balance Current (mA) | ~30 |
| Overcharge Detect Voltage (V) | 3.75 ±0.05 |
| Overcharge Release Voltage (V) | 3.55 ±0.05 |
| Over Discharge Detect Voltage (V) | 2.2 ±0.1 |
| Over Discharge Release Voltage (V) | 2.5 ±0.1 |
| Communication Interface | UART / CAN / RS485 |
| Operating Temperature (°C) | -20 to 70 |
| Dimensions (mm) | 128 x 63 x 15 |
Package Includes:

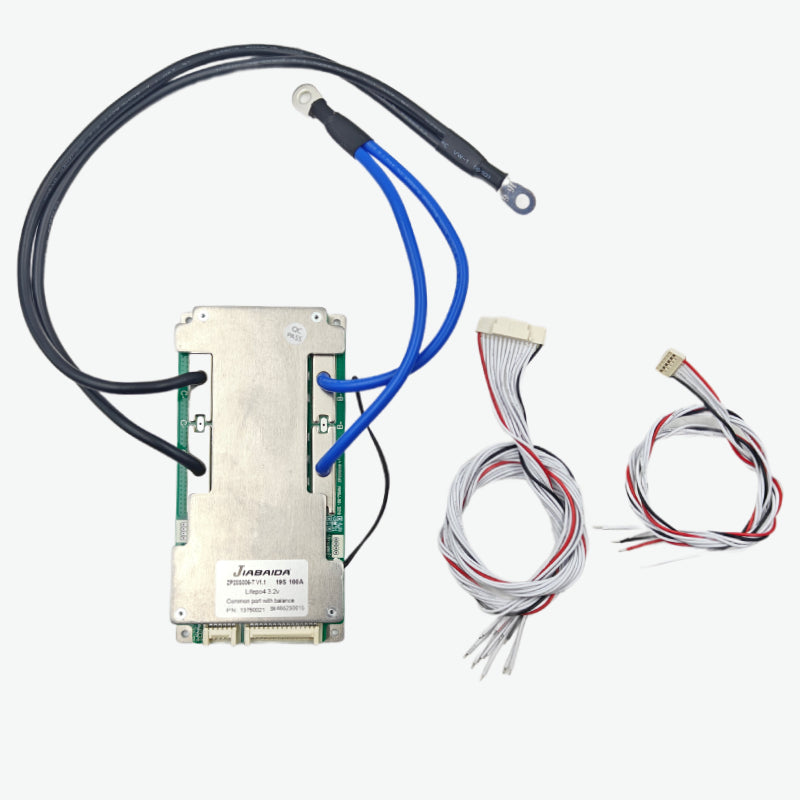

1 x Jiabaida (JBD) LiFePo4 19S 60.8V 100A Battery Management System - BMS Protection Board
