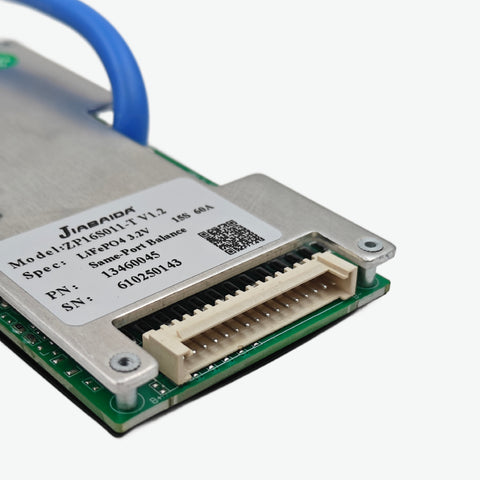

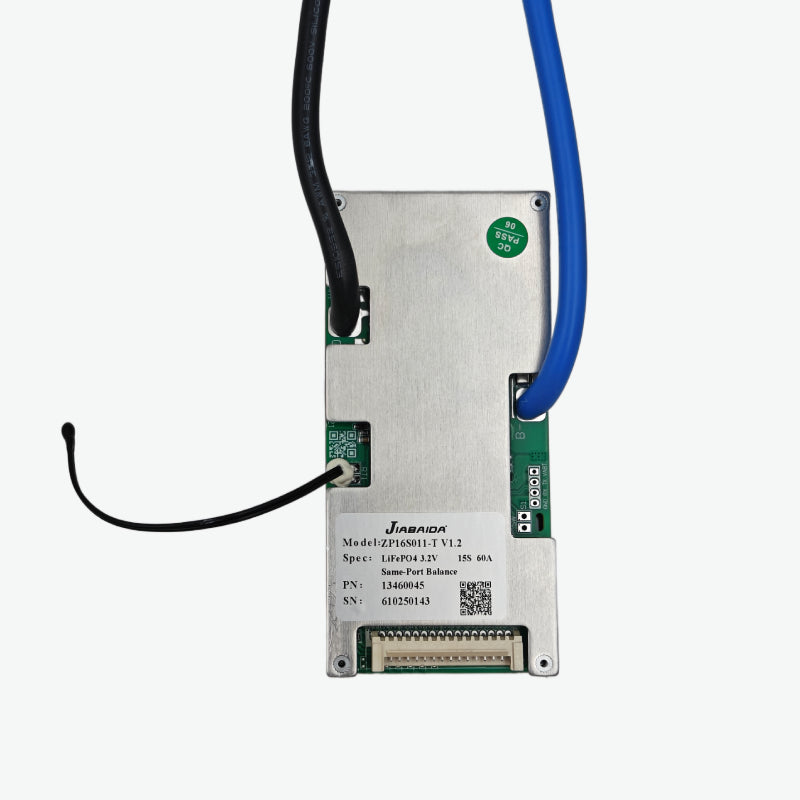

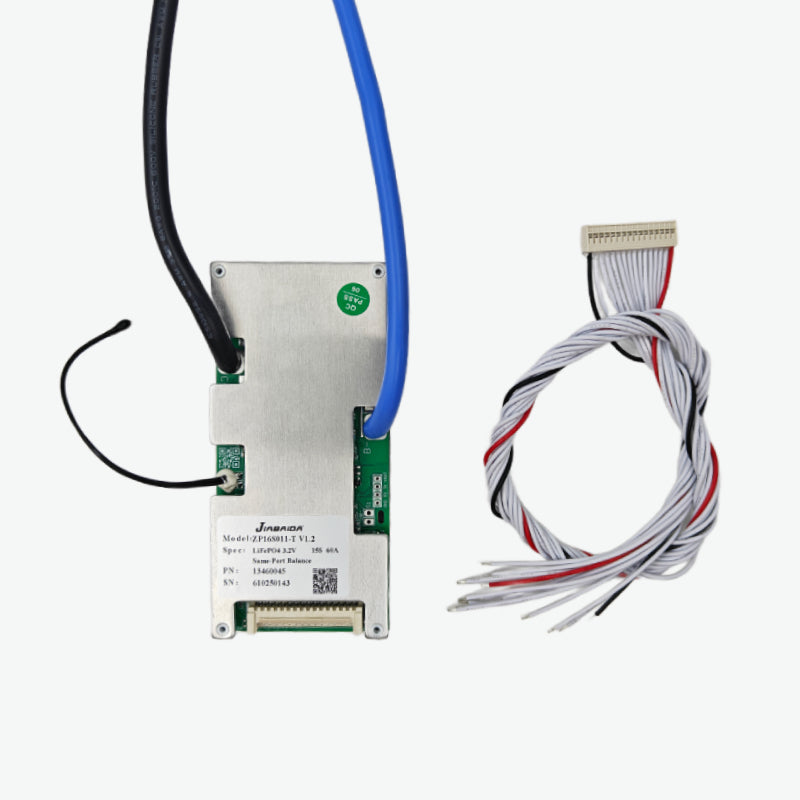

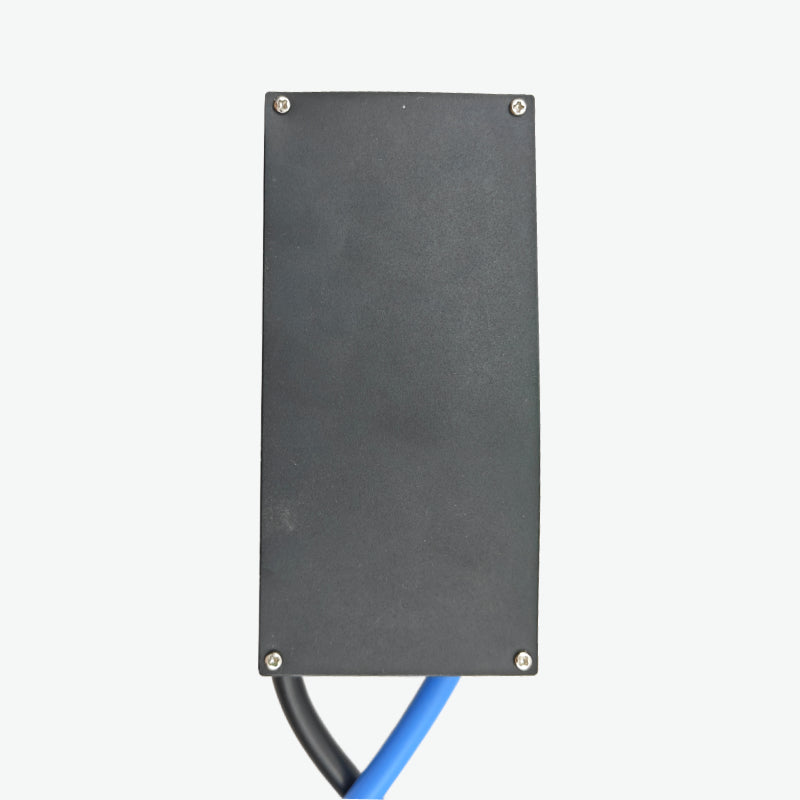

Jiabaida (JBD) LiFePo4 15S 48V 60A Battery Management System - BMS Protection Board
SKU:
BCL-QC3074
Availability:
2
In Stock
- Rs. 1,809.00
- Rs. 1,809.00
- Unit price
- per
Subtotal:
Rs. 1,809.00
Description
xJiabaida (JBD) LiFePo4 15S 48V 60A is a robust Battery Management System (BMS) based on the ZP16S011 hardware, engineered for 15-cell LiFePo4 battery packs requiring moderate to high discharge current. It offers intelligent passive balancing and comprehensive protection features such as overcharge, over-discharge, overcurrent, and short circuit protection. This BMS is ideal for medium- to high-demand applications like solar storage systems, electric bikes, and mobile power units.
Jiabaida (JBD) LiFePo4 15S 48V 60A BMS Features:
- 60A continuous discharge capability
- Passive balancing for optimized battery life
- Integrated over-voltage, under-voltage, short circuit, and overcurrent protection
- ZP16S011 hardware ensures efficient and stable performance
- Suitable for powerful LiFePo4 battery systems
Jiabaida (JBD) LiFePo4 15S 48V 60A BMS Specification:
| Specification | Value |
|---|---|
| Model | ZP16S011 |
| Supported Cells | 15S (LiFePo4) |
| Nominal Voltage (V) | 48V |
| Charge Voltage (V) | 54.75V |
| Charge Current (A) | 20A |
| Continuous Discharge Current (A) | 60A |
| Balance Current (mA) | 30 ±5 |
| Overcharge Detect Voltage (V) | 3.75 ±0.05 |
| Overcharge Release Voltage (V) | 3.55 ±0.05 |
| Over Discharge Detect Voltage (V) | 2.20 ±0.1 |
| Over Discharge Release Voltage (V) | 2.50 ±0.1 |
| Operating Temperature (°C) | -20 to 70 |
| Dimensions (mm) | 115 x 54 x 12 |
Package Includes:
1 x Jiabaida (JBD) LiFePo4 15S 48V 60A Battery Management System - BMS Protection Board
