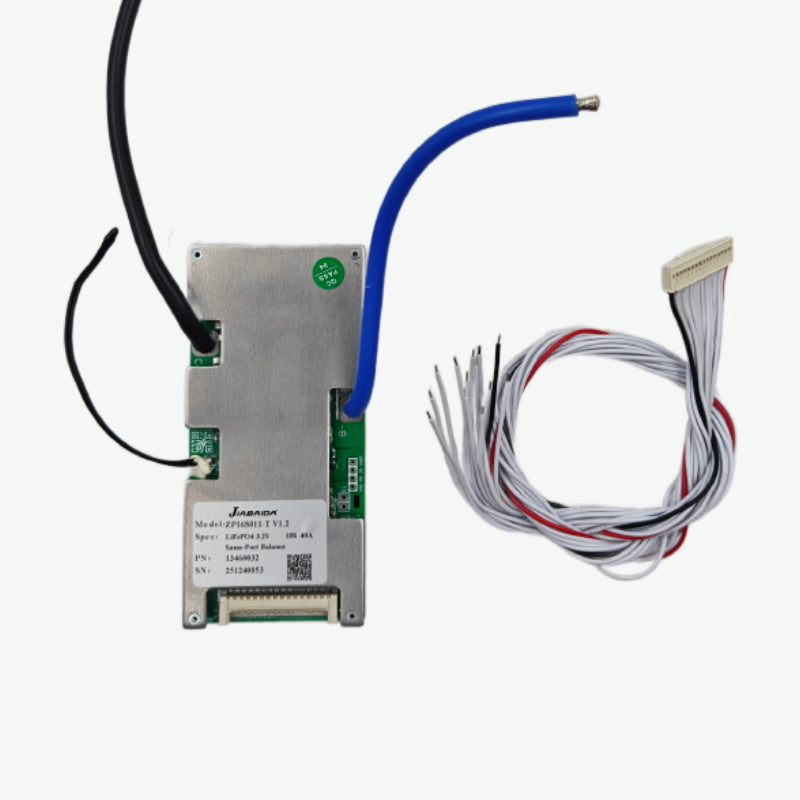

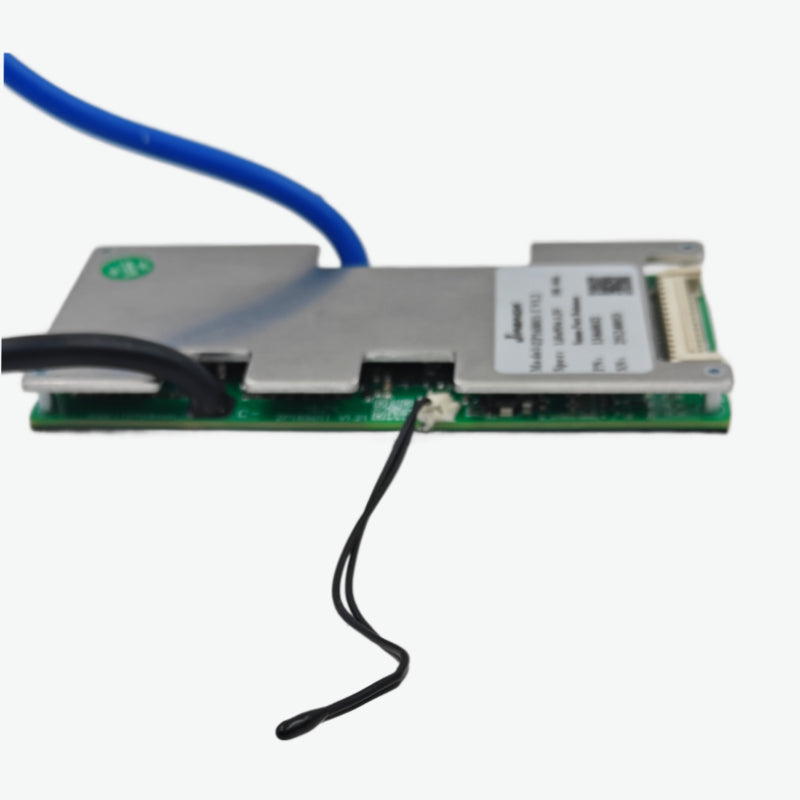

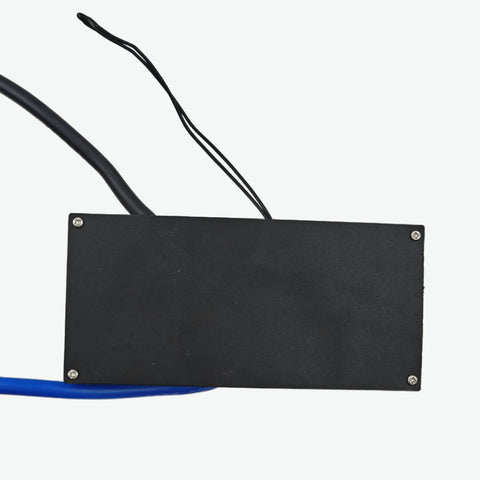

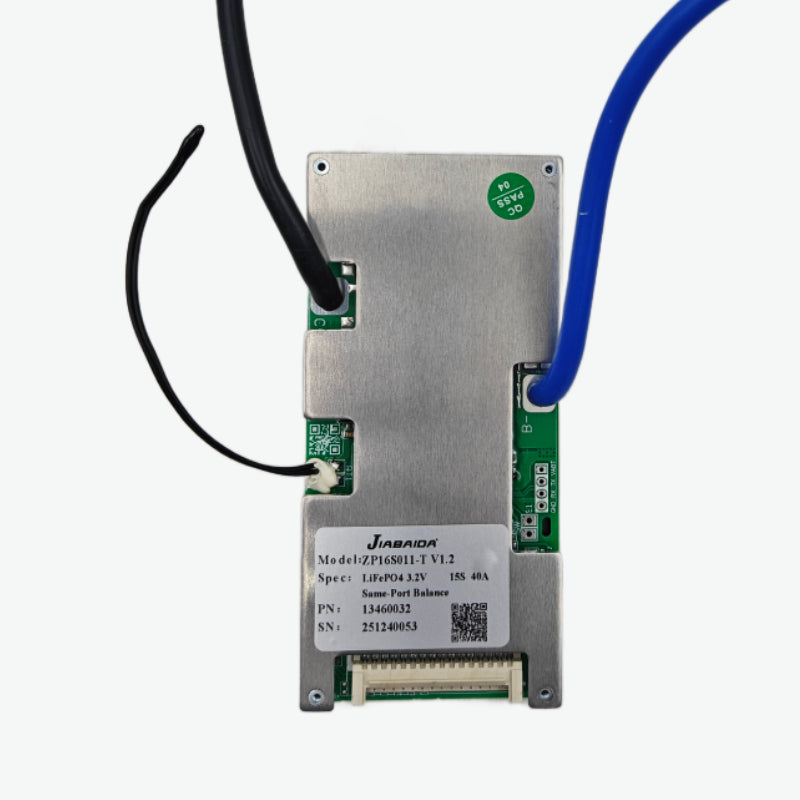

Jiabaida (JBD) LiFePo4 15S 48V 40A Battery Management System - BMS Protection Board
SKU:
BCL-QC3073
Availability:
6
In Stock
- Rs. 1,285.00
- Rs. 1,285.00
- Unit price
- per
Subtotal:
Rs. 1,285.00
Description
xJiabaida (JBD) LiFePo4 15S 48V 40A BMS is a smart Battery Management System built on the ZP16S011 hardware, engineered for 15-cell LiFePo4 battery packs. It offers reliable protection against overcharge, over-discharge, overcurrent, and short circuits while providing passive balancing for maintaining cell voltage uniformity. With a continuous discharge current of 40A, it is suitable for applications such as electric bikes, energy storage systems, and portable power solutions.
Jiabaida (JBD) LiFePo4 15S 48V 40A BMS Features:
- 40A continuous discharge capability for moderate-load applications
- Passive balancing to improve battery pack performance and lifespan
- Comprehensive protection circuitry for voltage and current control
- Built on ZP16S011 hardware for stable operation
- Ideal for medium-power LiFePo4 battery systems
Jiabaida (JBD) LiFePo4 15S 48V 40A BMS Specification:
| Specification | Value |
|---|---|
| Model | ZP16S011 |
| Supported Cells | 15S (LiFePo4) |
| Nominal Voltage (V) | 48V |
| Charge Voltage (V) | 54.75V |
| Charge Current (A) | 20A |
| Continuous Discharge Current (A) | 40A |
| Balance Current (mA) | 30 ±5 |
| Overcharge Detect Voltage (V) | 3.75 ±0.05 |
| Overcharge Release Voltage (V) | 3.55 ±0.05 |
| Over Discharge Detect Voltage (V) | 2.20 ±0.1 |
| Over Discharge Release Voltage (V) | 2.50 ±0.1 |
| Operating Temperature (°C) | -20 to 70 |
| Dimensions (mm) | 115 x 54 x 12mm |
Package Includes:
1 x Jiabaida (JBD) LiFePo4 15S 48V 40A Battery Management System - BMS Protection Board
