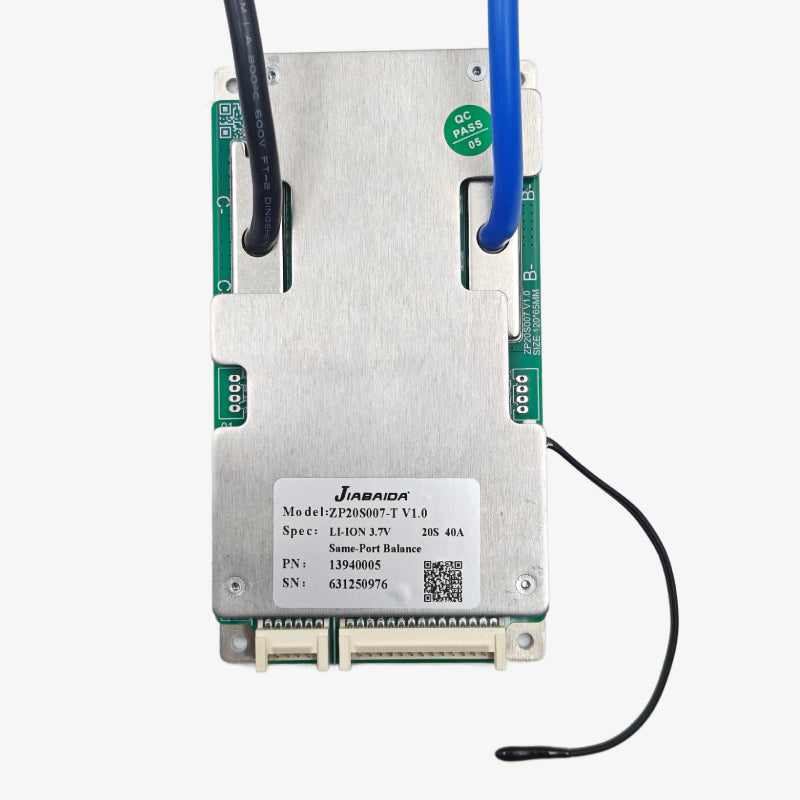

Jiabaida (JBD) Li-ion 20S 72V 40A Battery Management System - BMS Protection Board
SKU:
BCL-QC3400
Availability:
6
In Stock
- Rs. 1,775.00
- Rs. 1,775.00
- Unit price
- per
Subtotal:
Rs. 1,775.00
Description
xJiabaida (JBD) Li-ion 20S 72V 40A BMS is a robust Battery Management System designed for 20-cell Li-ion battery packs (72V nominal). It provides complete protection with advanced circuitry to safeguard against overcharging, over-discharging, overcurrent, and short circuits. Supporting same-port charging and discharging, this BMS is ideal for high-capacity applications such as e-bikes, e-scooters, solar storage systems, and DIY energy packs.
The aluminum plate ensures heat dissipation, while its balancing feature improves battery health and lifespan.
Jiabaida (JBD) Li-ion 20S 72V 40A BMS Features:
- Designed for 20S (72V nominal) Li-ion battery packs
- Continuous discharge current up to 40A
- Same-port charging and discharging for simplified wiring
- Overcharge, over-discharge, overcurrent, and short-circuit protection
- Integrated balancing for stable battery performance
- Aluminum casing for improved thermal management
- Suitable for high-power battery-powered systems
JBD Li-ion 20S 72V 40A BMS Specifications:
| Specification | Value |
|---|---|
| Model | JZP20S07-T V1.0 |
| Supported Cells | 20S (Li-ion) |
| Nominal Voltage (V) | 72 |
| Charge Voltage (V) | 84 |
| Continuous Discharge (A) | 40 |
| Charge Current (A) | 20 |
| Balance Function | Yes (Same-Port Balance) |
| Operating Temperature (°C) | -20 to 70 |
| Dimensions (mm) | 120 x 65 x 12 mm |
Package Includes:
1 x JBD Li-ion 20S 72V 40A Same-Port Battery Management System - BMS Protection Board
