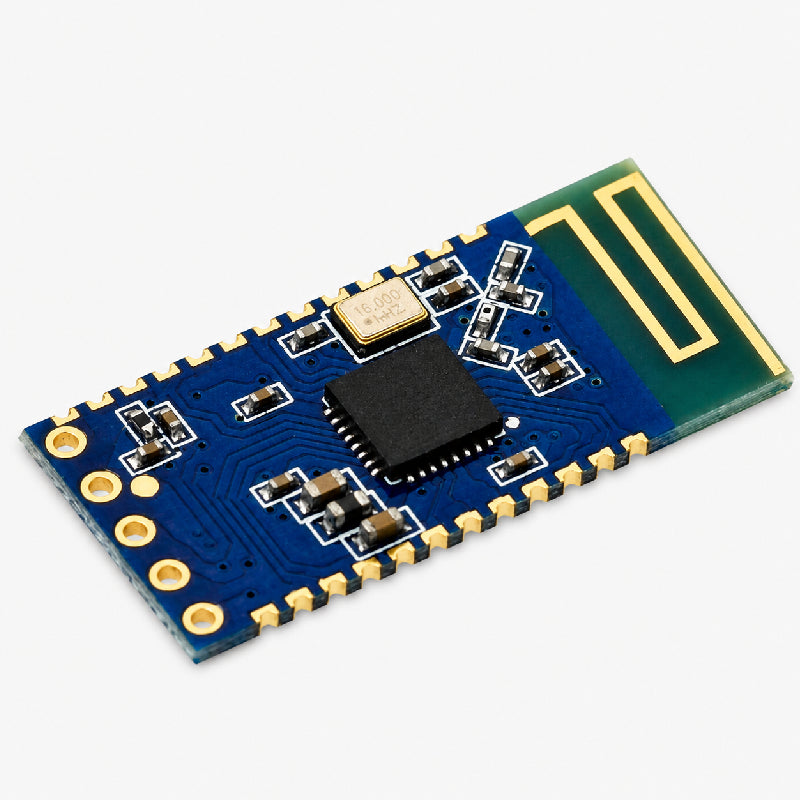

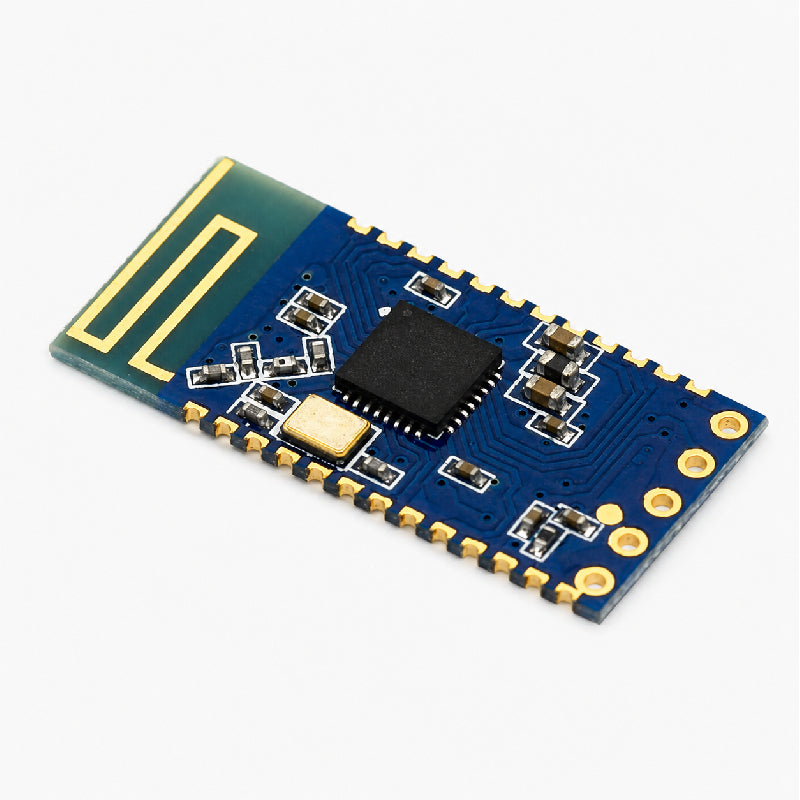

JDY-24M Bluetooth BLE 5.0 MESH ZigBee Module

JDY-24M Bluetooth BLE 5.0 MESH Module is a versatile low-power wireless communication module designed for IoT devices, smart home automation, wireless sensor networks, industrial control systems, and Bluetooth data transmission applications. Based on Bluetooth 5.0 technology, it supports transparent serial communication, iBeacon, BLE scanning, MESH networking, and multi-device connectivity, making it ideal for advanced wireless networking projects.

Features:

1. Bluetooth 5.0 BLE Communication
2. MESH Networking Support
3. Supports Up to 65,535 Node Networking
4. Master-Slave Transparent Transmission
5. iBeacon Broadcast Function
6. iBeacon Detection Function
7. BLE Probe Function
8. Multi-Hop Wireless Anti-Collision Technology
9. Multi-Linked Slave Mode Support
10. Low Power Consumption Design
11. UART Serial Communication Interface
12. On-Board PCB Antenna
13. Compatible with Android and iOS Applications

Specifications:

Supported Functions:

• Master-Slave Transparent Transmission

• iBeacon Broadcasting

• iBeacon Detection

• BLE Device Scanning

• Bluetooth MESH Networking

• Multi-Linked Slave Mode

• Wireless Data Relay

• Remote IO Control

• Button Input Control

• Response and Non-Response Data Communication

• Automatic Network Formation

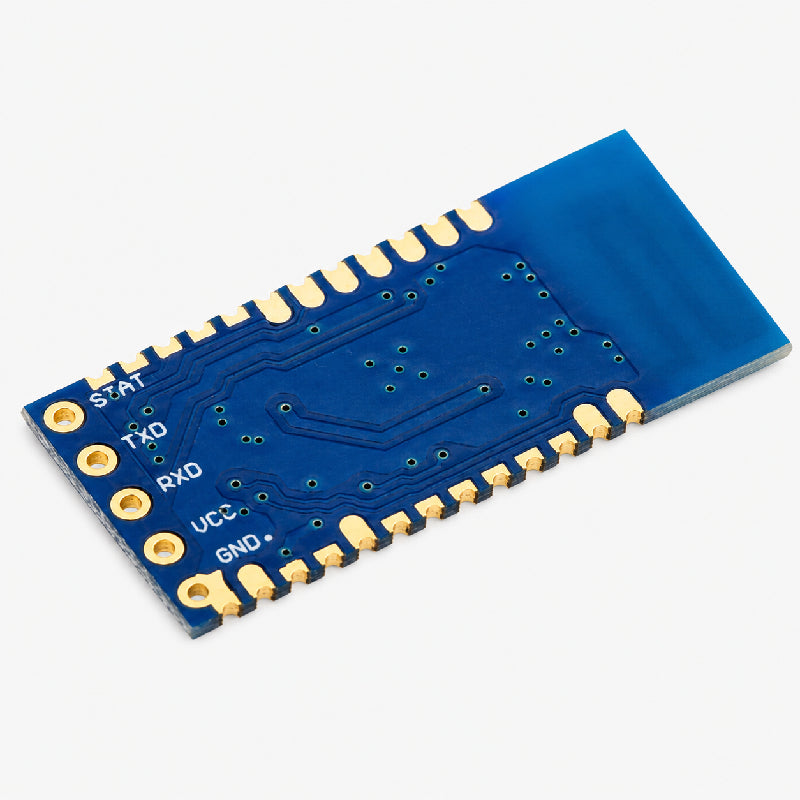

Pin Configuration:

• EN – Wake-up pin and AT command control input

• VCC – Power Supply Input (1.9V–3.6V DC)

• GND – Ground

• TXD – UART Serial Data Output

• RXD – UART Serial Data Input

• STATE – Connection Status Output (LOW: Disconnected, HIGH: Connected)

Also Check These Out:-

JDY-25M Bluetooth 5.0 BLE5.0 Mesh Networking Module

HC-42 Bluetooth 5.0 BLE Serial Port Module

HC-08 Bluetooth 4.0 BLE Serial Port Module

Package Includes:

1 x JDY-24M Bluetooth BLE 5.0 MESH Module
