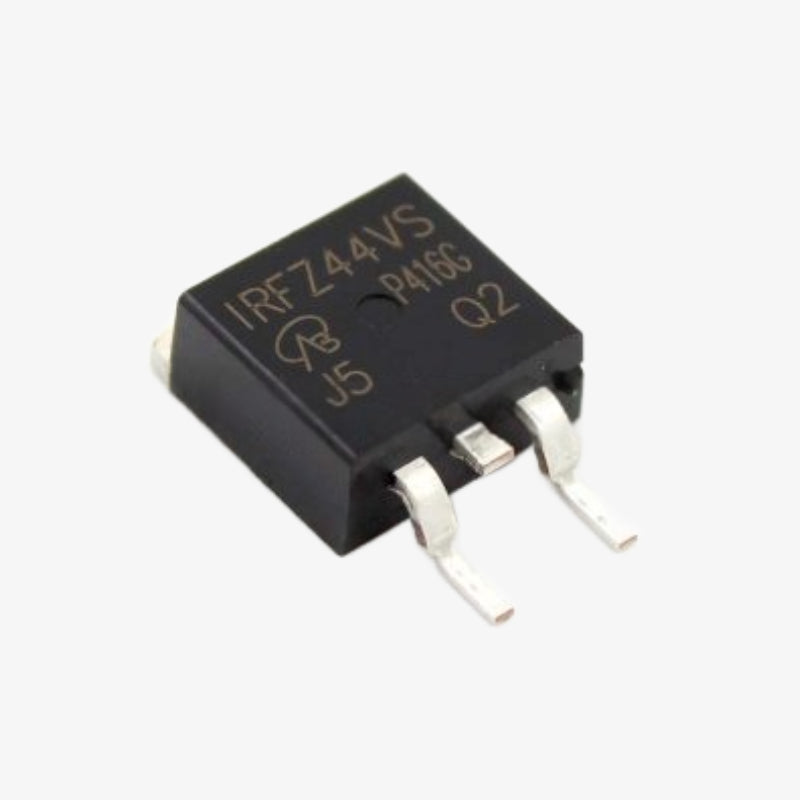

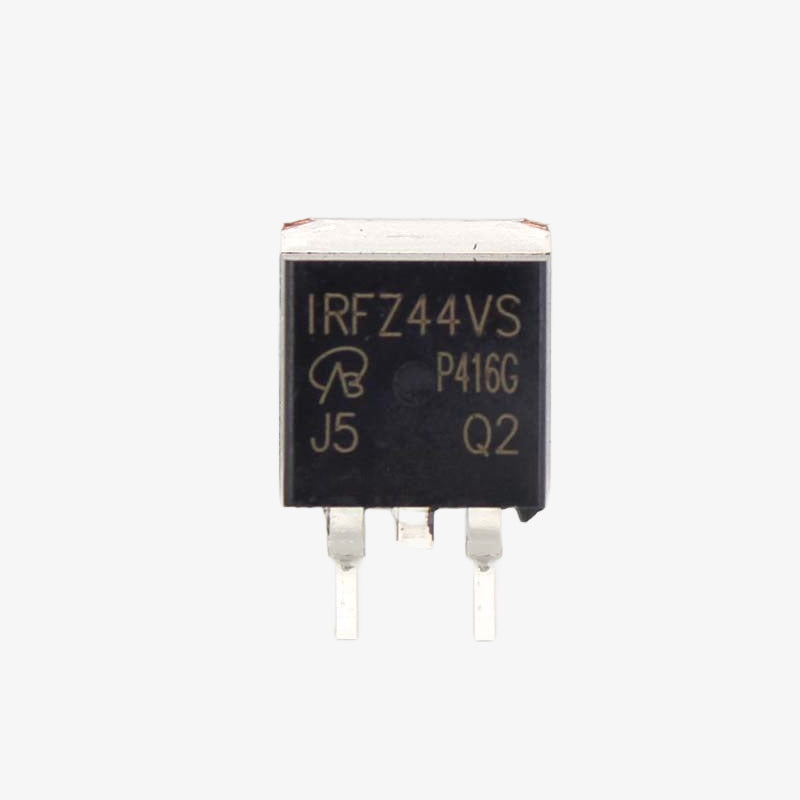

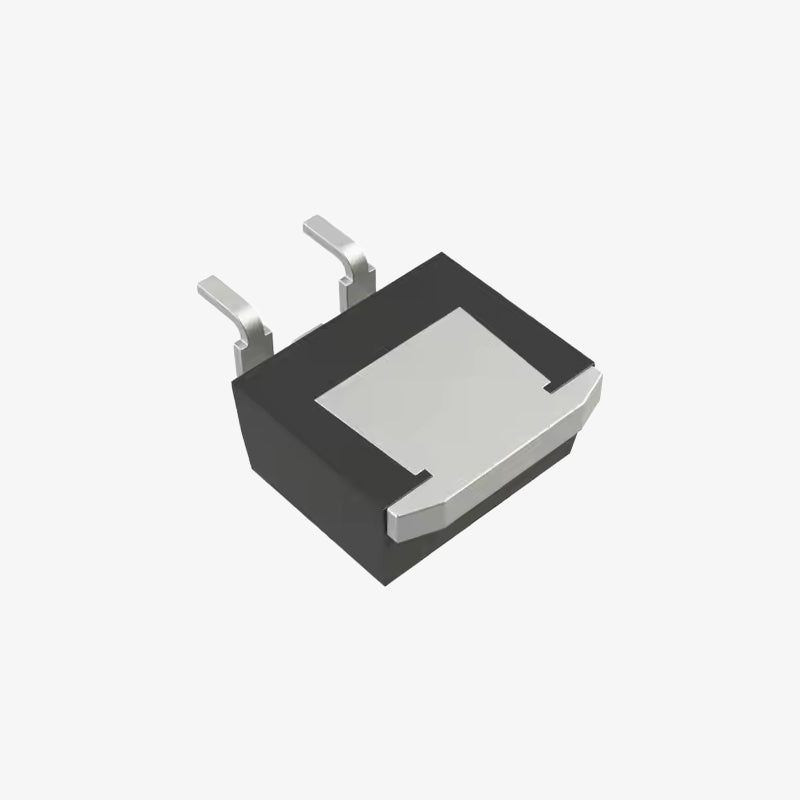

IRFZ44VS-VB N-Channel MOSFET (VBSemi) - TO-263 SMD Package
SKU:
SMD-QC3231
Availability:
95
In Stock
- Rs. 60.00
- Rs. 60.00
- Unit price
- per
Subtotal:
Rs. 60.00
Description
xThe IRFZ44VS-VB is an N-Channel power MOSFET designed by VBSemi, offering excellent switching performance with low on-resistance and high current handling capabilities. Packaged in a TO-263 surface-mount package, this MOSFET is ideal for DC-DC converters, motor drivers, battery protection, and general power switching applications.
Features of IRFZ44VS-VB MOSFET:
- N-Channel enhancement mode MOSFET
- Low on-resistance (RDS(on)) for efficient power delivery
- High-speed switching capability
- Suitable for low-voltage, high-current applications
- TO-263 SMD package for compact PCB layouts
- Rugged and reliable with high power handling
Specifications of IRFZ44VS-VB MOSFET:
- Type: N-Channel
- Drain-Source Voltage (Vds): 55V
- Continuous Drain Current (Id): 49A
- Gate Threshold Voltage (Vgs(th)): 2.0V to 4.0V
- On-Resistance (RDS(on)): 0.022Ω max at Vgs = 10V
- Total Gate Charge (Qg): ~67nC (typical)
- Package Type: TO-263 (D²PAK) – Surface Mount
- Manufacturer: VBSemi
Package Includes:
1 × IRFZ44VS-VB N-Channel MOSFET(VBSemi) - TO-263 SMD Package
