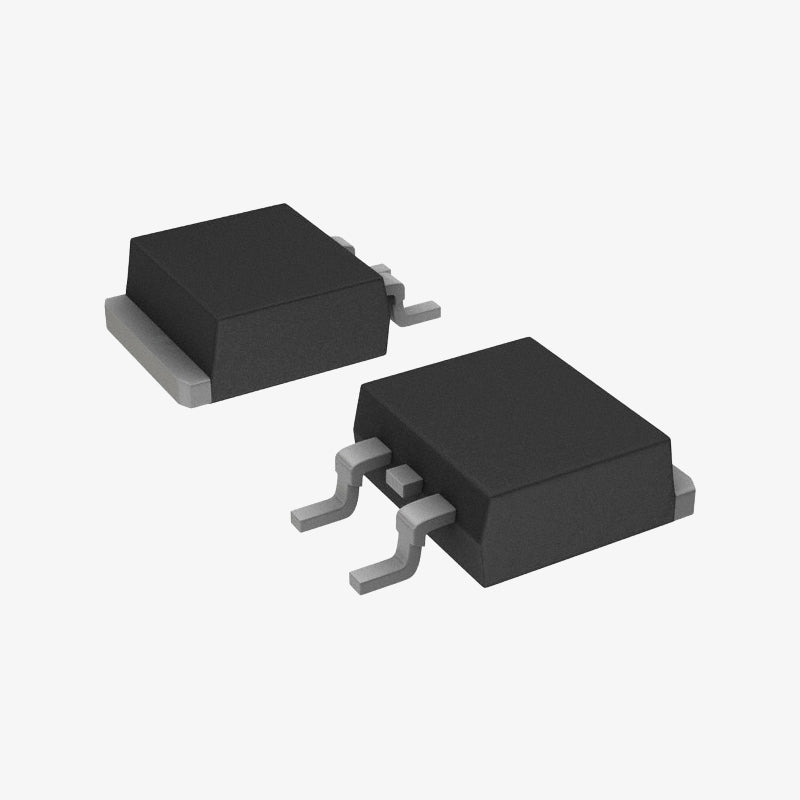

The IRF540 is an N-channel power MOSFET designed for high-speed switching and efficient power control in a wide range of applications including motor drivers, power supplies, and DC-DC converters. With a drain-source voltage of up to 100V and continuous current handling of 33A, this MOSFET offers low RDS(on) for minimal conduction losses and excellent thermal performance. Packaged in a surface-mount D2PAK (TO-263), it is ideal for compact and thermally demanding designs.
Features of IRF540 N-Channel Power MOSFET:
- N-channel enhancement-type MOSFET for switching and power control
- Low RDS(on) enables high efficiency and low heat generation
- High-speed switching capability
- TTL and CMOS logic-level compatible gate drive
- Rugged and reliable for industrial and consumer electronics
- D2PAK – TO-263 surface-mount package for easy integration
- RoHS compliant
Specifications of IRF540 N-Channel Power MOSFET:
- Model: IRF540
- Type: N-Channel Power MOSFET
- Drain-Source Voltage (VDS): 100V
- Continuous Drain Current (ID): 33A
- Gate Threshold Voltage (VGS(th)): 2.0V – 4.0V
- RDS(on): 0.077Ω (max)Gate Charge (Qg): 67nC (typical)
- Power Dissipation: 130W
- Package: D2PAK – TO-263 – SMD
- Operating Temperature: -55°C to +175°C
- Manufacturer: Generic
Package Includes:
1 × IRF540 N-Channel Power MOSFET – Generic – D2PAK – TO-263 Package
