Internal Resistance (IR) Tester for Lithium Battery - YR1030 (Low Cost)
Sold Out

Internal Resistance (IR) Tester for Lithium Battery - YR1030 (Low Cost) Internal Resistance (IR) Tester for Lithium Battery - YR1030 (Low Cost)

QC1193

Out of stock

Rs. 4,930.00
(Excluding 18% GST)



This is a low cost IR Tester for Lithium battery, suitable for single battery or battery pack with voltage no more than 200V



Specification:

Vapcell YR1030 Internal resistance tester is a great tester.Portable,easy,efficient,precise to test many types of batteries .

It can test lead acid, li-ion, Lipo, Lifepo4, alkaline cell ,dry cell, nickel hydrogen, nickel cadmium, coin cell,etc.



Safety instructions

The maximum input voltage on the internal resistance and voltage range measurement does not more than DC 30V. Under any conditions can not enter the AC signal.The charging port uses the MICRO-MINI charging port.



Measuring the battery IR

Normal mode

1. Connect the test lines and turn on the power. Make sure that the measured battery voltage does not exceed the instrument upper limit of 28V.

2. The two test pens(each pen has two lines and probes) were connected to the positive and negative battery. PS: Red and white line is connect the positive; black and white is connected negative.

3. wait to display stablely and read value.



Package Includes:

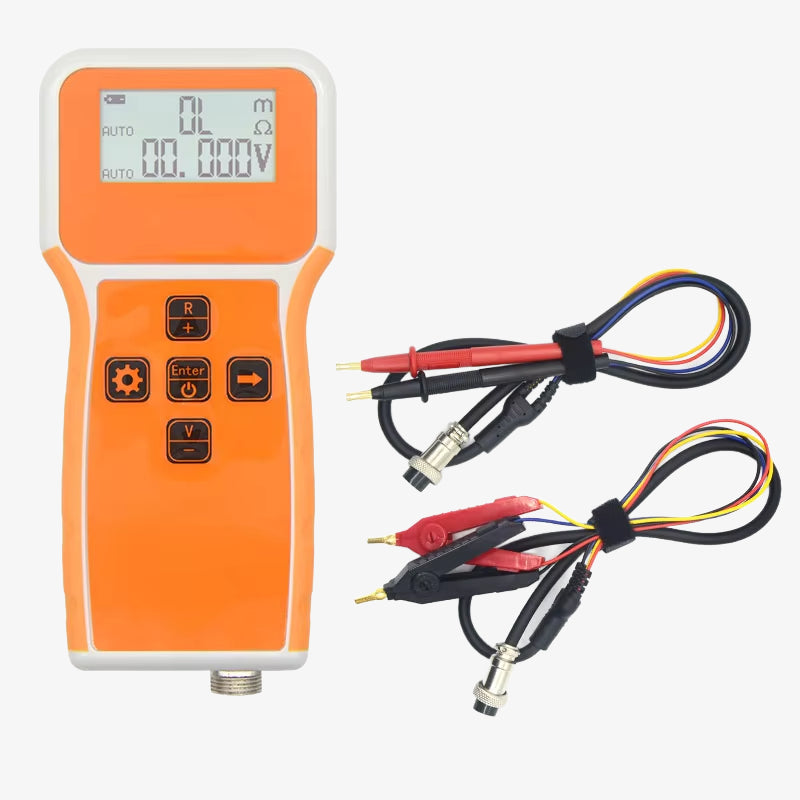

1 * Internal resistance tester

1* test line (red,white* black,white)

1* user manual





Model

Portable Battery Resistance Voltage Tester   TOB-SM8124

Voltage testing range

0-1.999V, 2-19.99V, 20-199.9V

Voltage resolution ratio

1mV, 10mV, 100mV

Inner resistance testing range

0-199.9mΩ, 200-1999mΩ, 2000-20000mΩ

Accuracy

0.1mΩ, 1mΩ, 10mΩ

Operating temperature

-10-40℃

Suitable battery

Lithium battery, lithium pouch cell(Lithium polymer battery),

Nickel metal hydride, nickel cadmium battery, lead-acid battery and so on.

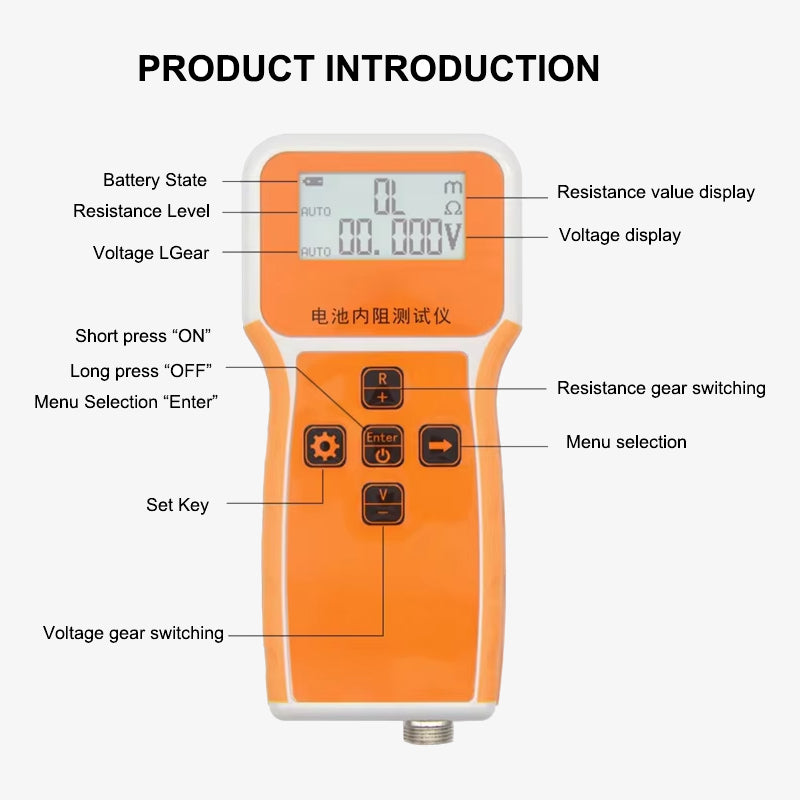

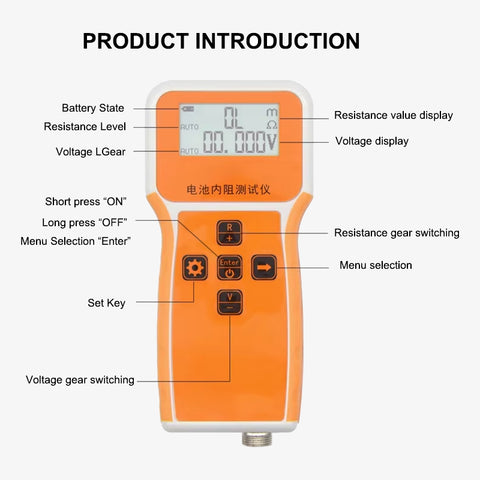

Structure

LCD display testing results

Simple operation with Button press

Notice

This machine can not test battery with voltage more than 200V,

Please don’t test battery more than 200V. It will damage the machine.

Guarantee that the battery positive and negative connection is right.

Dimension(L*W*H)

130*72*30mm

Weight

200g





This is a low cost IR Tester for Lithium battery, suitable for single battery or battery pack with voltage no more than 200V



Specification:

Vapcell YR1030 Internal resistance tester is a great tester.Portable,easy,efficient,precise to test many types of batteries .

It can test lead acid, li-ion, Lipo, Lifepo4, alkaline cell ,dry cell, nickel hydrogen, nickel cadmium, coin cell,etc.



Safety instructions

The maximum input voltage on the internal resistance and voltage range measurement does not more than DC 30V. Under any conditions can not enter the AC signal.The charging port uses the MICRO-MINI charging port.



Measuring the battery IR

Normal mode

1. Connect the test lines and turn on the power. Make sure that the measured battery voltage does not exceed the instrument upper limit of 28V.

2. The two test pens(each pen has two lines and probes) were connected to the positive and negative battery. PS: Red and white line is connect the positive; black and white is connected negative.

3. wait to display stablely and read value.



Package Includes:

1 * Internal resistance tester

1* test line (red,white* black,white)

1* user manual





Model

Portable Battery Resistance Voltage Tester   TOB-SM8124

Voltage testing range

0-1.999V, 2-19.99V, 20-199.9V

Voltage resolution ratio

1mV, 10mV, 100mV

Inner resistance testing range

0-199.9mΩ, 200-1999mΩ, 2000-20000mΩ

Accuracy

0.1mΩ, 1mΩ, 10mΩ

Operating temperature

-10-40℃

Suitable battery

Lithium battery, lithium pouch cell(Lithium polymer battery),

Nickel metal hydride, nickel cadmium battery, lead-acid battery and so on.

Structure

LCD display testing results

Simple operation with Button press

Notice

This machine can not test battery with voltage more than 200V,

Please don’t test battery more than 200V. It will damage the machine.

Guarantee that the battery positive and negative connection is right.

Dimension(L*W*H)

130*72*30mm

Weight

200g
