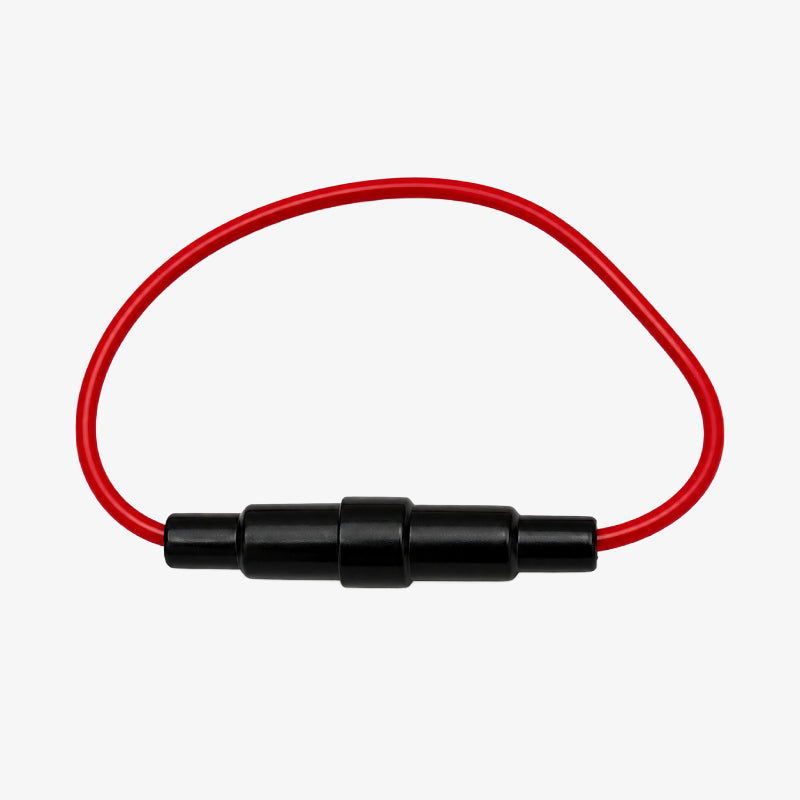

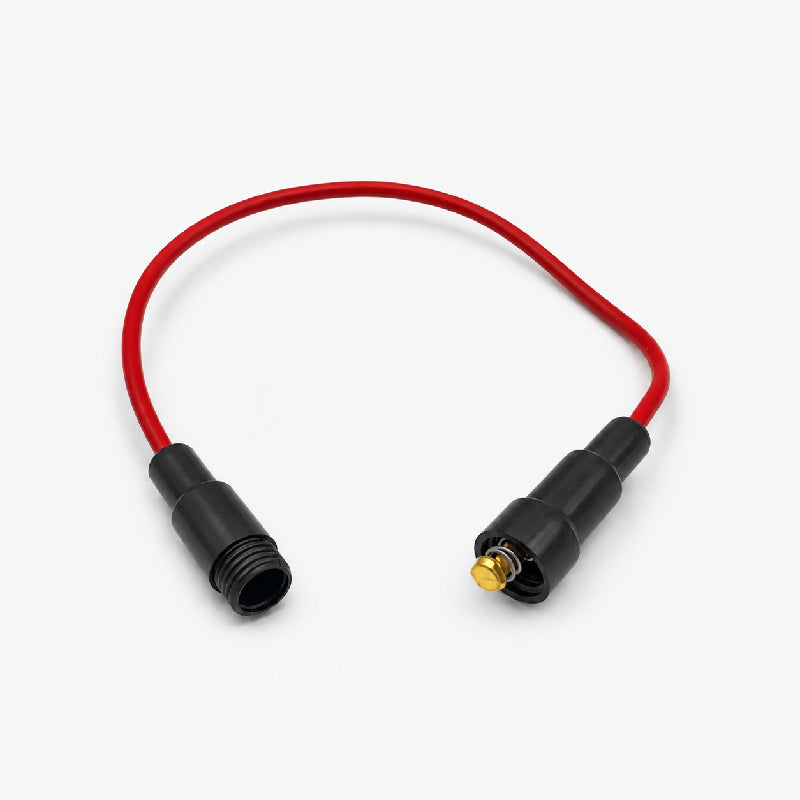

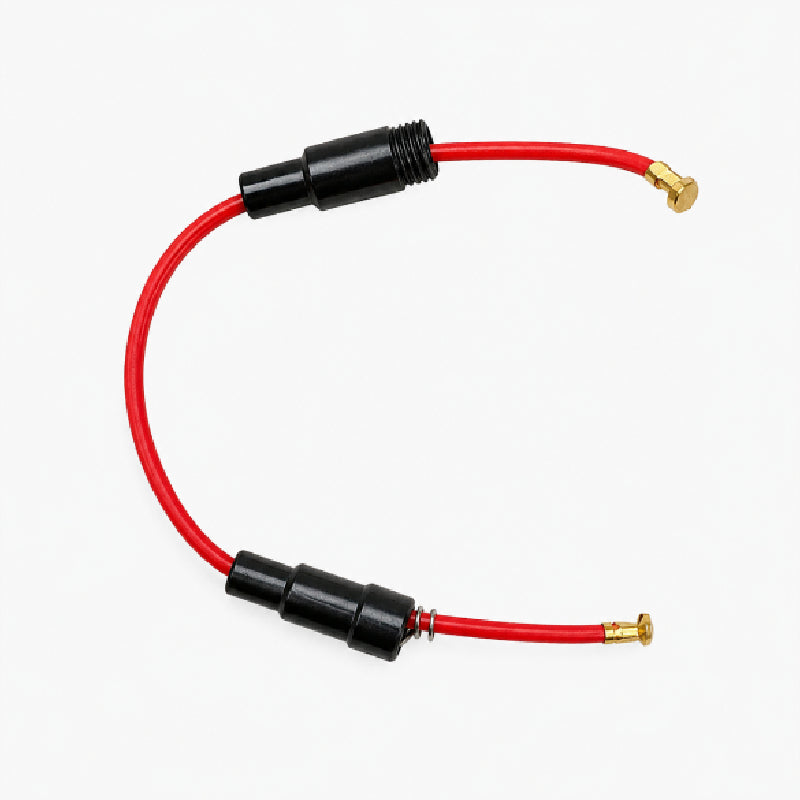

Inline Fuse Holder for 5 x 20mm Glass Fuse with 22AWG Wire
SKU:
CNX-QC5840
Availability:
200
In Stock
-
- Rs. 9.00
- Unit price
- per
Subtotal:
Rs. 9.00
Description
xInline Fuse Holder for 5 x 20mm Glass Fuse with 22AWG Wire is a reliable inline fuse holder designed for cylindrical 5 × 20mm glass fuses. Featuring pre-attached 22AWG copper wires and a flame-retardant thermoplastic body, it provides a simple and secure solution for adding overcurrent protection to power supplies, electronic equipment, automotive projects, and DIY circuits where panel mounting is not practical.
Features:
- Supports 5 × 20mm Glass Fuses
- Inline Cable Mount Design
- Pre-Wired with 22AWG Copper Leads
- Flame Retardant UL94V-0 Housing
- Brass Fuse Contacts
- Easy Series Connection Installation
- Threaded Cap for Secure Fuse Retention
- Compact and Lightweight Construction
- Suitable for AC and DC Protection Circuits
- Ideal for Electronics, Automotive, and DIY Projects
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Inline Fuse Holder |
| Fuse Size | 5 × 20 mm |
| Mounting Type | Cable Mount / Inline |
| Wire Gauge | 22 AWG |
| Wire Material | Copper |
| Wire Cross Section | 0.5 sq.mm |
| Lead Type | Pre-attached Cables |
| Contact Material | Brass |
| Body Material | Thermoplastic |
| Flammability Rating | UL94V-0 |
| Rated Voltage | 350V AC |
| Current Rating | 5A |
| Color | Black |
| Total Length | 15 cm |
| Compatible Fuse Type | Cylindrical Glass Fuse (5 × 20 mm) |
Applications:
- Power Supply Protection
- Electronic Equipment
- DIY Electronics Projects
- Automotive Circuits
- Industrial Control Systems
- Battery Protection Circuits
Also Check These Out:-
Fuse Holder PCB Mountable 20x5mm Fuse Clip with Hinged Cap
20A HRC Fuse Holder - FTC FHB-20
Package Includes:
1 x Inline Fuse Holder for 5 × 20mm Glass Fuse with 22AWG Wire
