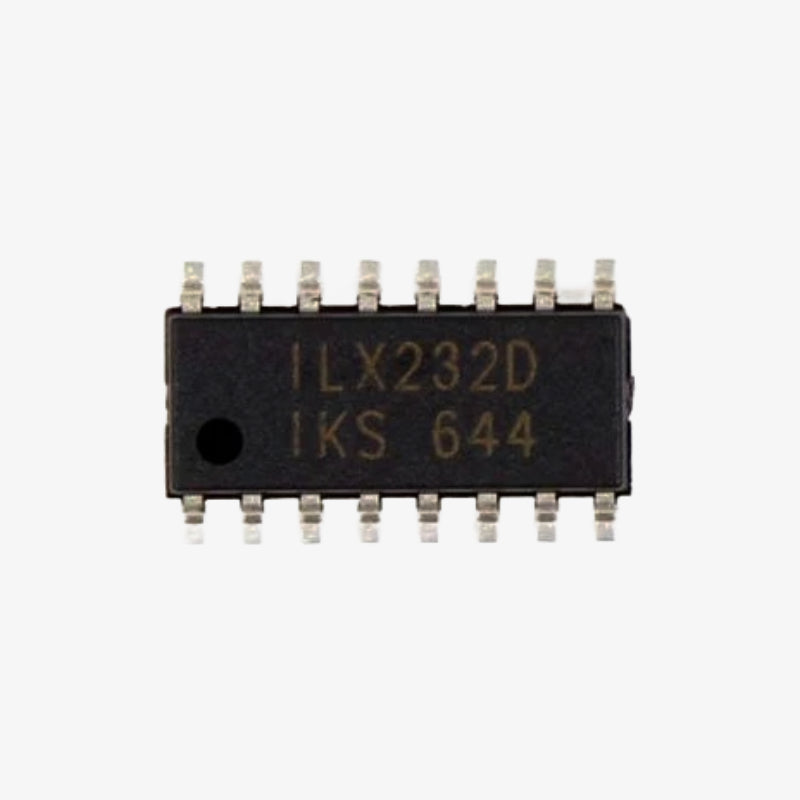

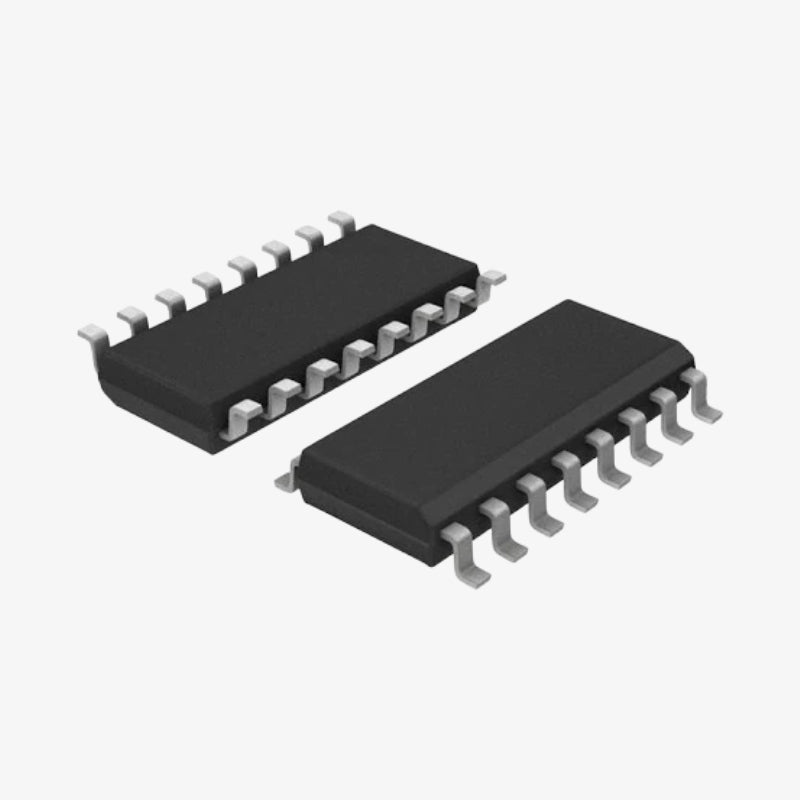

ILX232D RS-232 Transceiver IC (IKSEMICON) - SOIC-16 SMD Package

The ILX232D is a dual RS-232 transceiver IC designed for reliable serial communication between TTL/CMOS logic levels and RS-232 compliant devices. It includes two drivers and two receivers, enabling full-duplex communication. The IC operates on a single +5V supply and integrates charge pump circuits, eliminating the need for external dual power supplies. This makes it an ideal solution for serial communication in microcontroller-based systems, industrial equipment, and embedded devices.

Features of ILX232D RS-232 Transceiver IC:

1. Dual RS-232 driver/receiver with full-duplex communication
2. Operates on a single +5V supply
3. Built-in charge pump eliminates external capacitors for voltage conversion
4. Compatible with RS-232 and TTL/CMOS logic levels
5. High data rate capability up to 120 kbps
6. Low power consumption with automatic shutdown feature
7. ESD protection for RS-232 pins improves reliability
8. Compact SOIC-16 SMD package for space-saving PCB designs

Specifications of ILX232D RS-232 Transceiver IC:

• Model: ILX232D
• Manufacturer: IKSEMICON
• Supply Voltage: 4.5V to 5.5V
• Number of Drivers/Receivers: 2/2
• Data Rate: Up to 120 kbps
• Package: SOIC-16 – SMD
• Operating Temperature: -40°C to +85°C
• Application: Microcontrollers, PC interfaces, industrial automation, embedded systems

Package Includes:

1 × ILX232D RS-232 Transceiver IC – IKSEMICON – SOIC-16 – SMD
