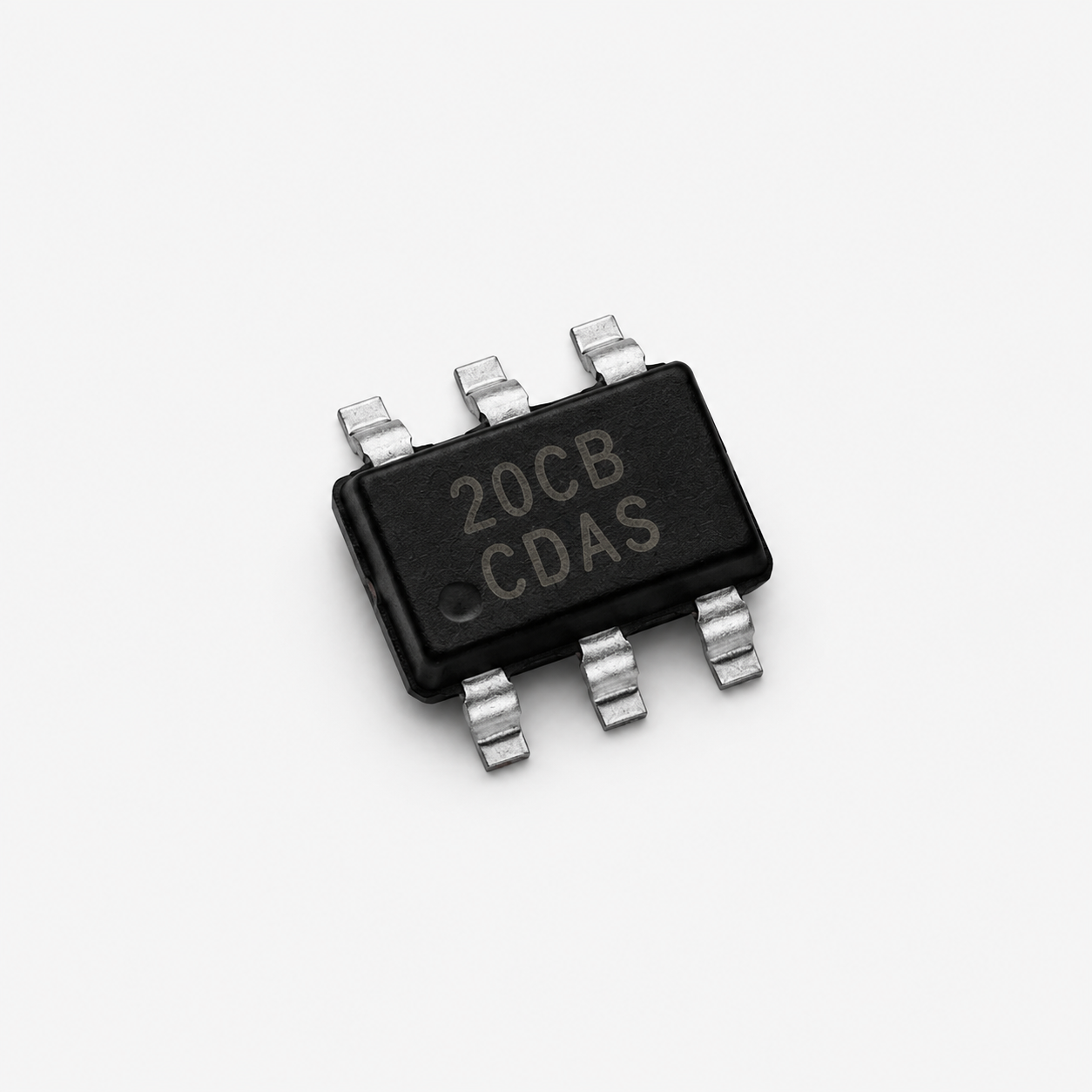

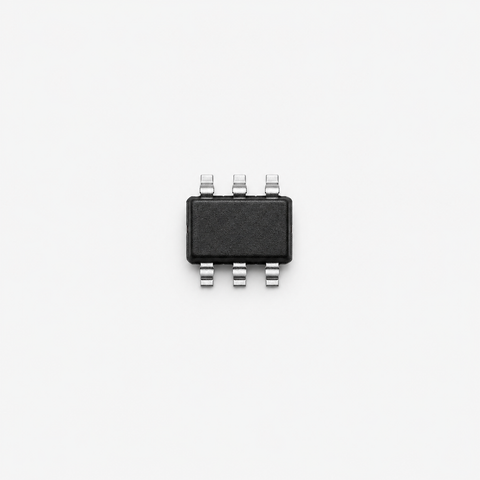

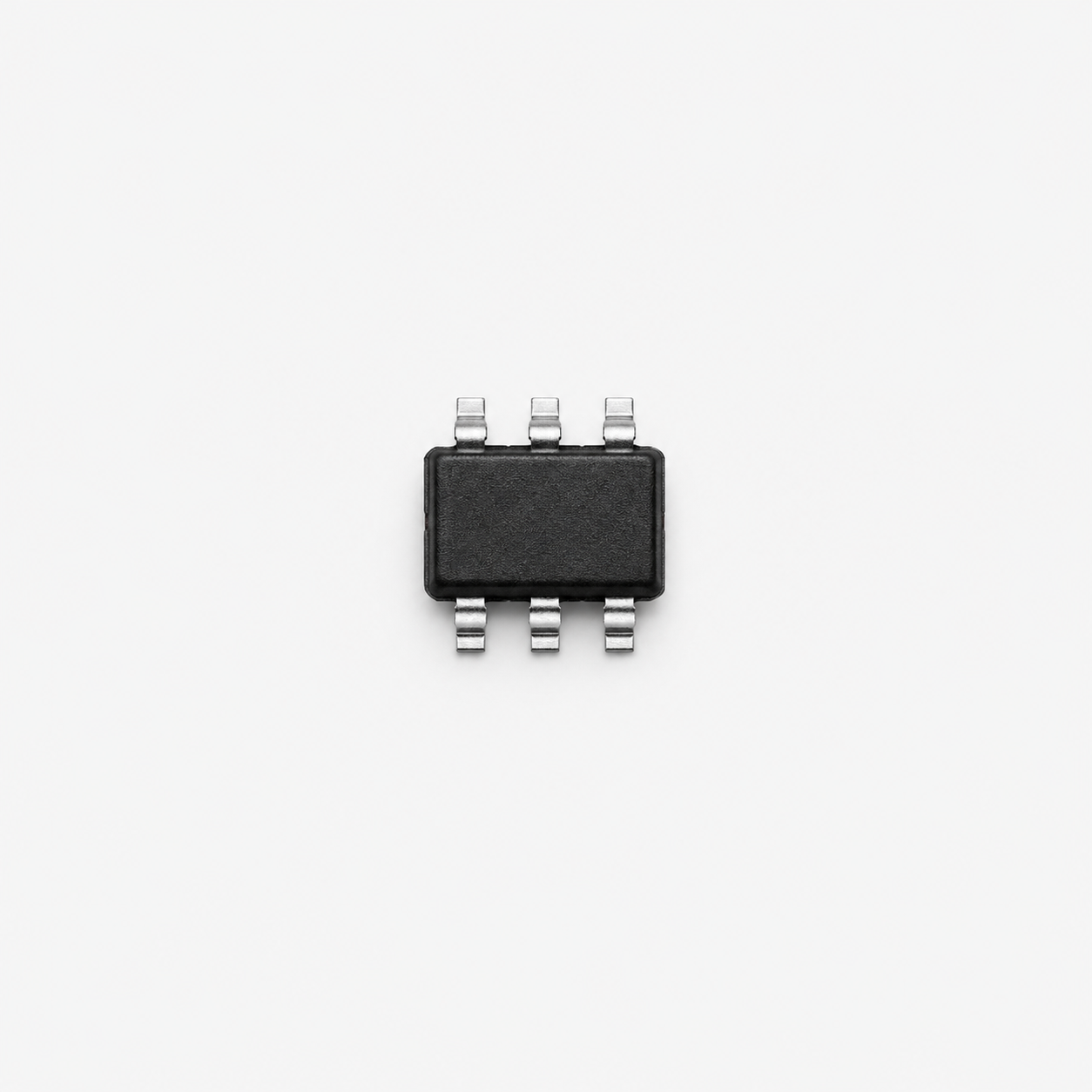

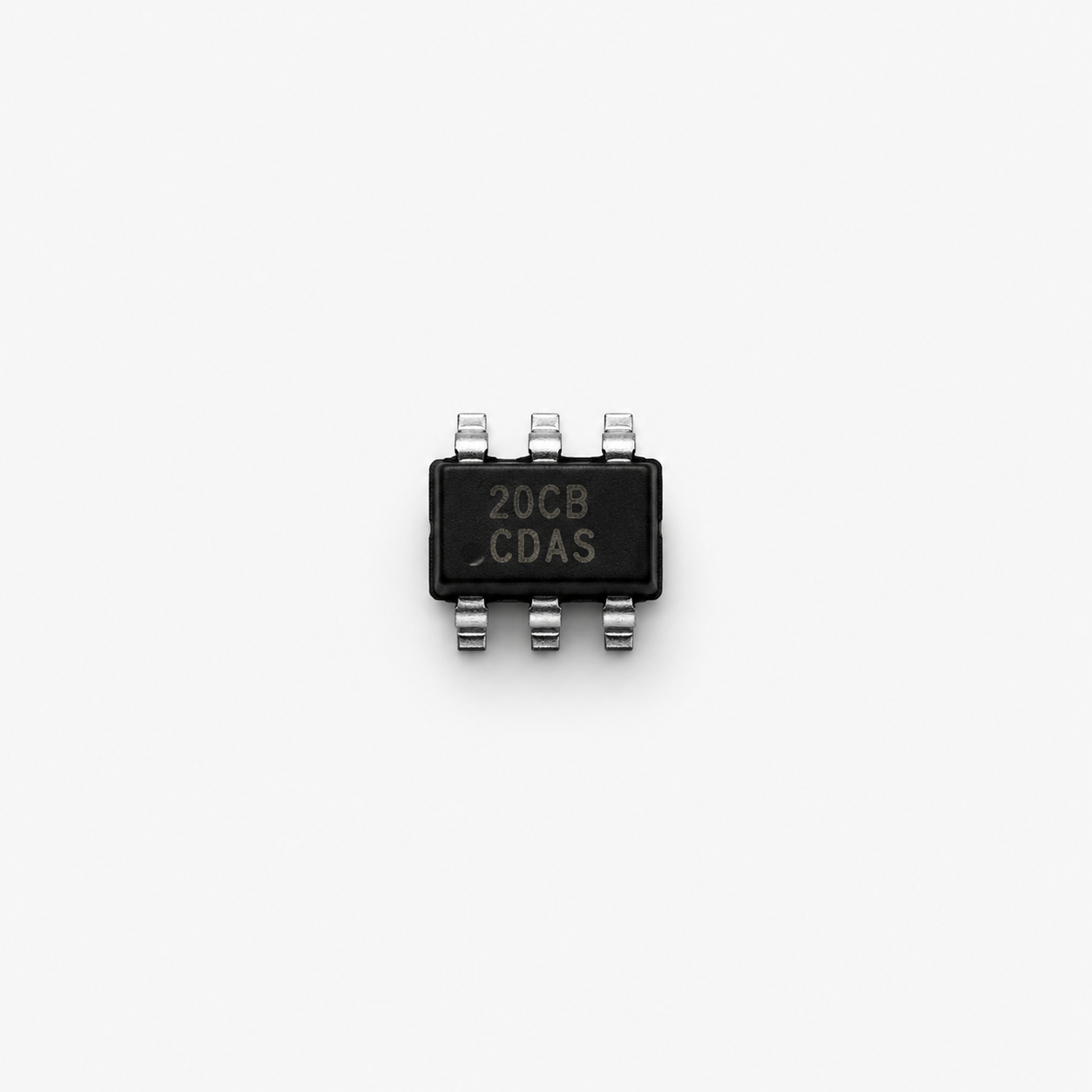

HY2120-CB-2 HYCON Tech 1.5V~10V Lithium-ion/Polymer Battery Packs Protection IC - SOT-23-6 Package

Brand: GENERIC
SKU: SMD-QC5897
Availability: 374 In Stock
Rs. 22.00
Subtotal: Rs. 22.00
Description
Description
x

HY2120-CB-2 HYCON Tech 1.5V~10V Lithium-ion/Polymer Battery Packs Protection IC - SOT-23-6 Package is a high-accuracy battery protection IC designed by HYCON Technology for 2-cell (2S) Lithium-ion and Lithium Polymer rechargeable battery packs. It integrates precision voltage detectors, delay circuits, and multiple protection functions to safeguard battery packs against overcharge, over-discharge, overcurrent, and short-circuit conditions. The device features ultra-low power consumption, a wide operating voltage range, and a compact SOT-23-6 package, making it an ideal choice for battery management systems and portable electronic devices.

HY2120-CB-2 HYCON Tech 1.5V~10V Lithium-ion/Polymer Battery Packs Datasheet

Features:

  1. High Accuracy Voltage Detection
  2. Designed for 2-Cell (2S) Lithium-ion/Lithium Polymer Battery Packs
  3. Overcharge Protection
  4. Over-discharge Protection
  5. Charge Overcurrent Protection
  6. Discharge Overcurrent Protection
  7. Short Circuit Protection
  8. Built-in Delay Circuits
  9. Ultra Low Power Consumption
  10. 0V Battery Charging Function
  11. Wide Operating Temperature Range
  12. Halogen-Free & Pb-Free Package
  13. Compact SOT-23-6 Surface Mount Package

Specifications:

Parameter Value
Manufacturer HYCON Technology
Model HY2120-CB-2
Product Type Battery Protection IC
Battery Type Lithium-ion / Lithium Polymer
Number of Cells 2 Cells (2S)
Supply Voltage Range 1.5V ~ 10V
Operating Voltage 3.0V ~ 7.8V
End-Off Voltage 2.9V
Charging Saturation Voltage 4.28V
Overcharge Detection Voltage 4.280V per Cell
Overcharge Release Voltage 4.080V per Cell
Over-discharge Detection Voltage 2.900V per Cell
Over-discharge Release Voltage 3.000V per Cell
Discharge Overcurrent Detection Voltage 200mV
Charge Overcurrent Detection Voltage 1.0V
Short Circuit Detection Voltage 1.0V
Overcharge Detection Delay 1000ms
Over-discharge Detection Delay 110ms
Discharge Overcurrent Delay 10ms
Charge Overcurrent Delay 7ms
Short Circuit Detection Delay 250µs
0V Battery Charge Function Supported
Over-discharge Recovery Function Not Supported
Mounting Type SMD / SMT
Package SOT-23-6
Operating Temperature -40°C to +85°C


Pins Explain:-

Pin No. Pin Name Description
1 OD Discharge MOSFET Gate Output
2 OC Charge MOSFET Gate Output
3 CS Current Sense / Charge & Discharge Current Detection Input
4 VC Cell Voltage Detection Input
5 VDD Positive Power Supply Input
6 VSS Ground



Also Check These IC:-

AN7112 Audio Power Amplifier IC

TDA2822M Amplifier IC

HT12D (RF Decoder) IC

Package Includes:

1 x HY2120-CB-2 HYCON Tech 1.5V~10V Lithium-ion/Polymer Battery Packs Protection IC - SOT-23-6 Package
