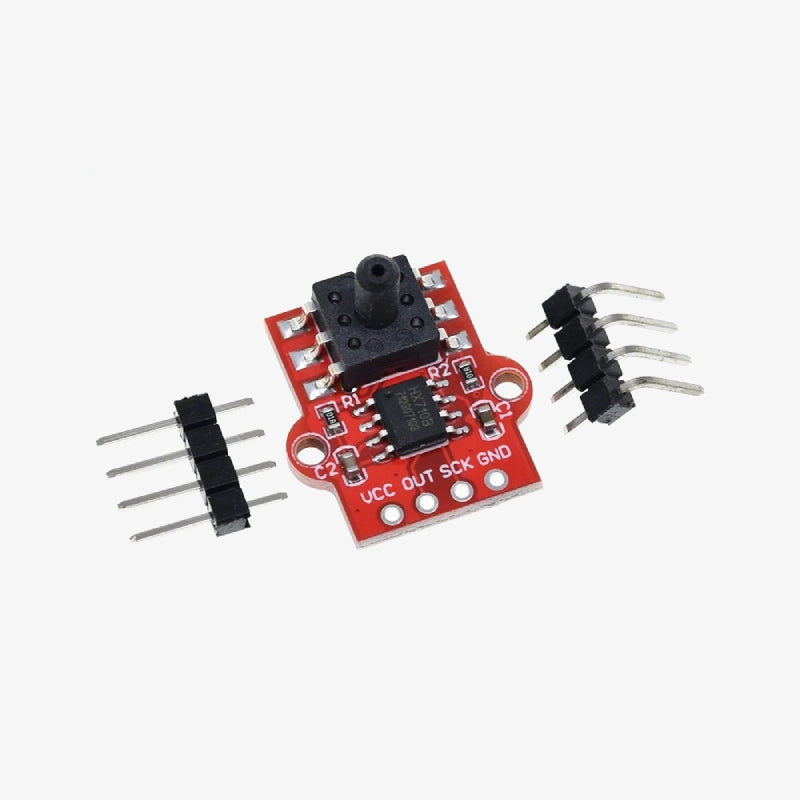

The HX710B Air Pressure Sensor Module is a high-precision module designed to measure low air pressure ranges, making it ideal for applications like barometric measurements, environmental monitoring, and medical devices.
Features
- Precise Pressure Measurement: Accurately measures air pressure from 0 to 40 kPa.
- Wide Voltage Range: Operates smoothly with 3.3V to 5V power supplies, compatible with most microcontrollers.
- Integrated ADC: Built-in 24-bit Analog-to-Digital Converter for stable and accurate digital outputs.
- Low Power Design: Optimized for battery-powered and portable applications.
- Compact and Lightweight: Small form factor suitable for embedded systems.
Specifications
- Pressure Range: 0 to 40 kPa.
- Supply Voltage: 3.3V–5V.
- Resolution: High resolution with 24-bit ADC.
- Output Interface: Digital output (I2C/SPI-compatible depending on configuration).
- Operating Temperature: -40°C to +85°C.
- Module Dimensions: [Specify dimensions if available].
Applications
- Barometric pressure sensing.
- Respiratory monitoring in medical devices.
- Environmental monitoring stations.
- Weather data logging.
- Altitude measurement for drones and RC vehicles.

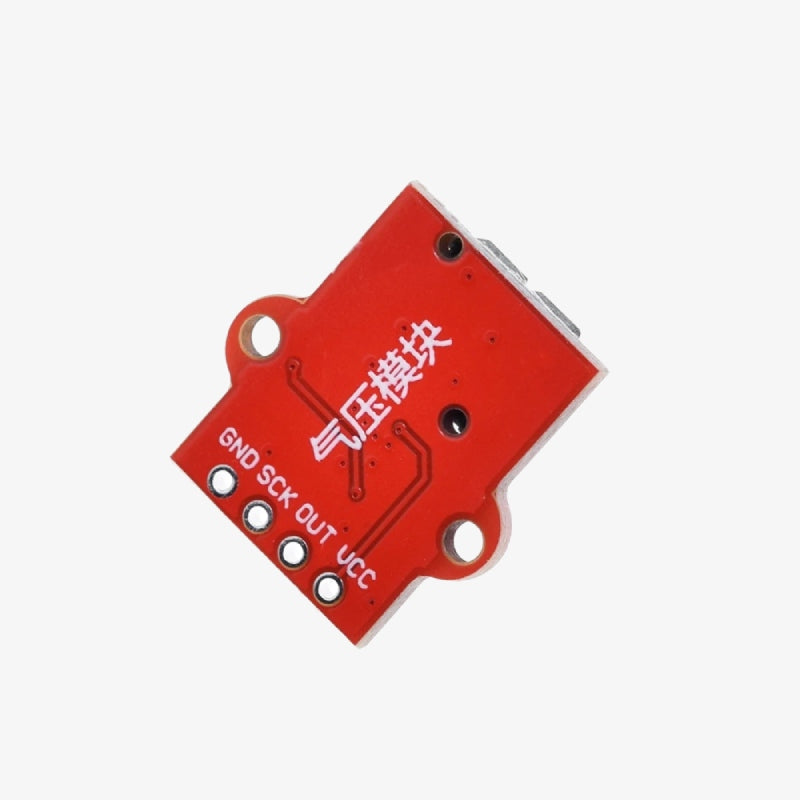

Pinout:
-
VCC: Power supply (3.3V to 5V)
-
GND: Ground
-
OUT: Pressure output (analog voltage)
-
SCK: Clock line for digital interface
-
DOUT: Data output for digital interface
