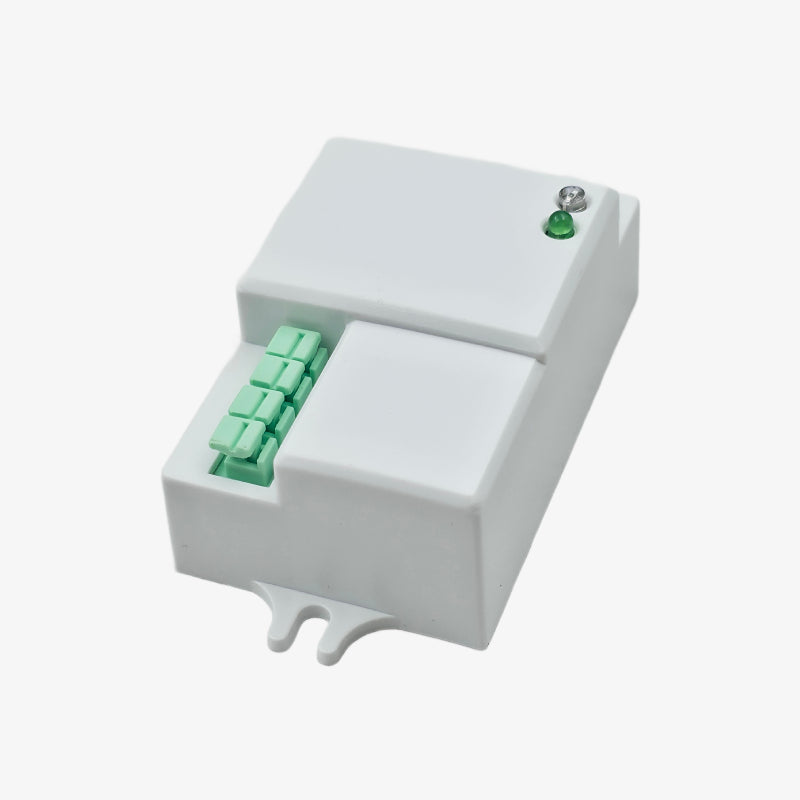

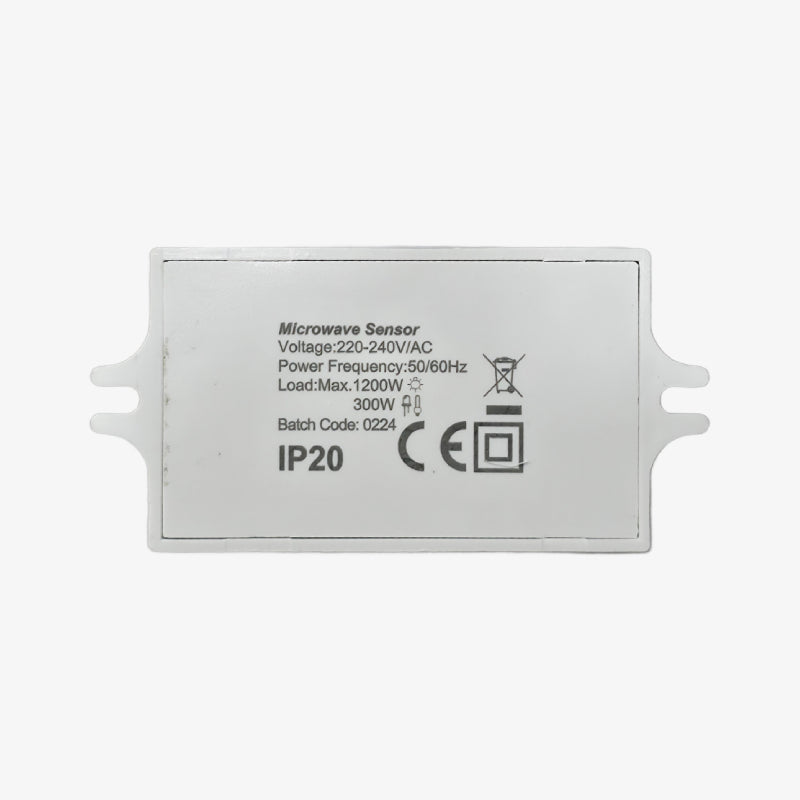

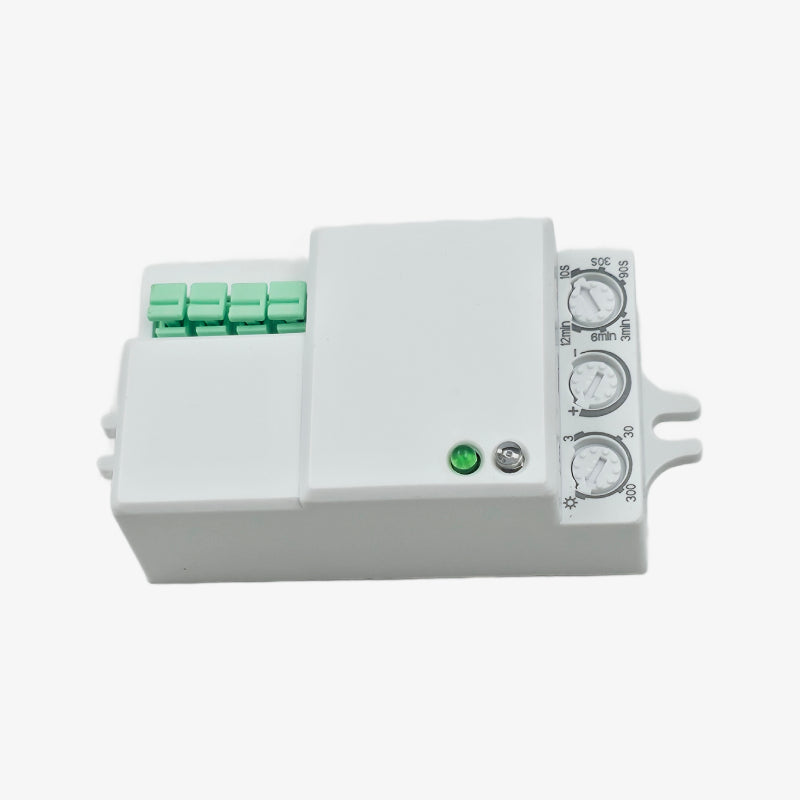

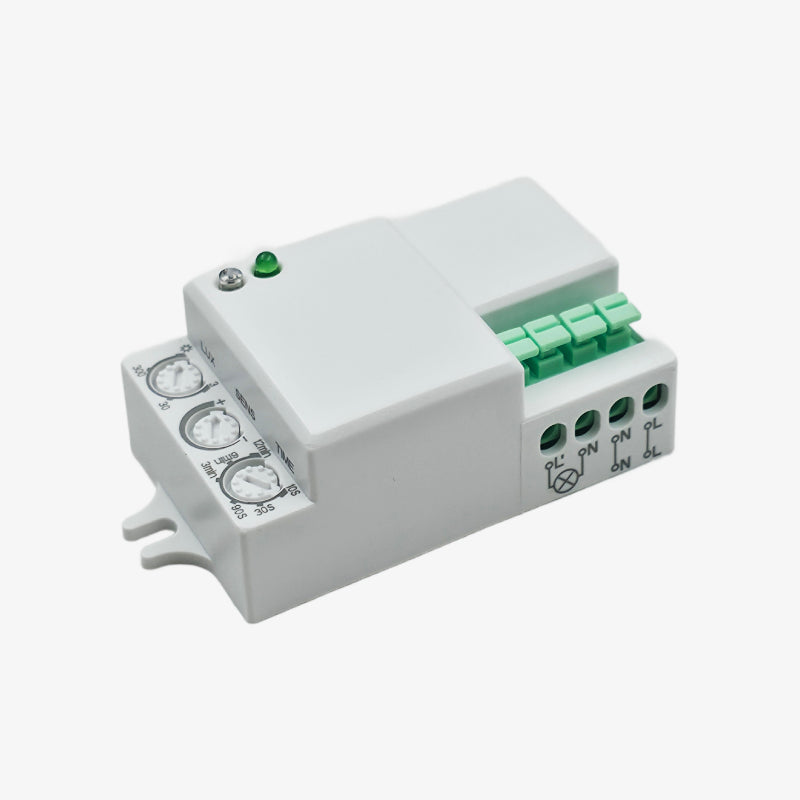

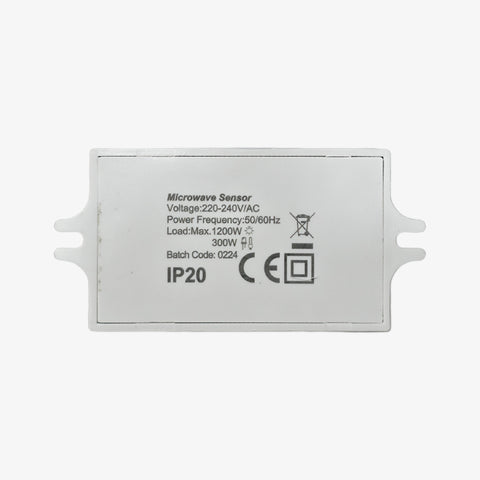

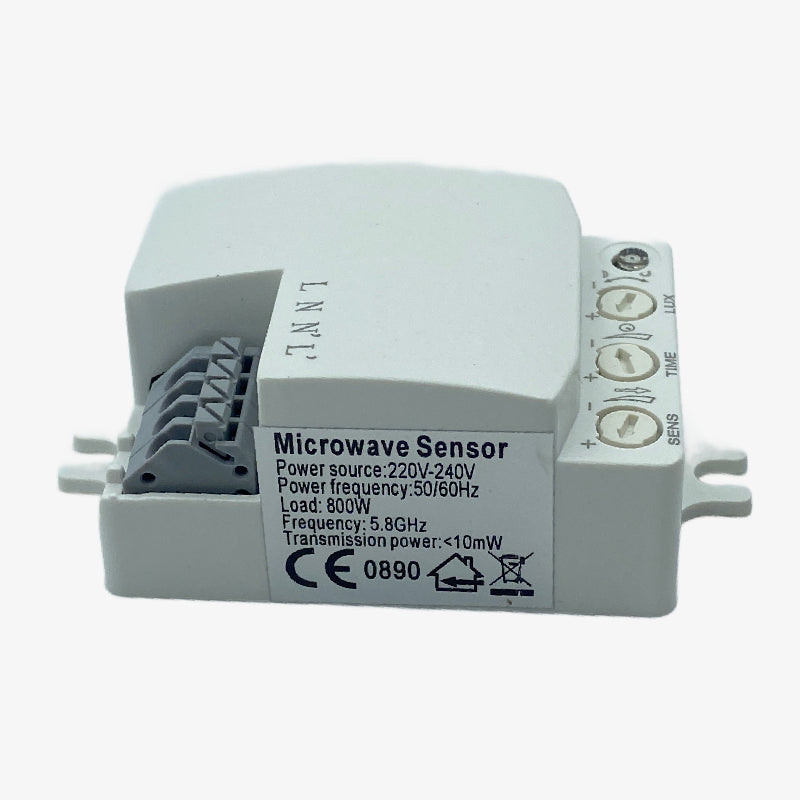

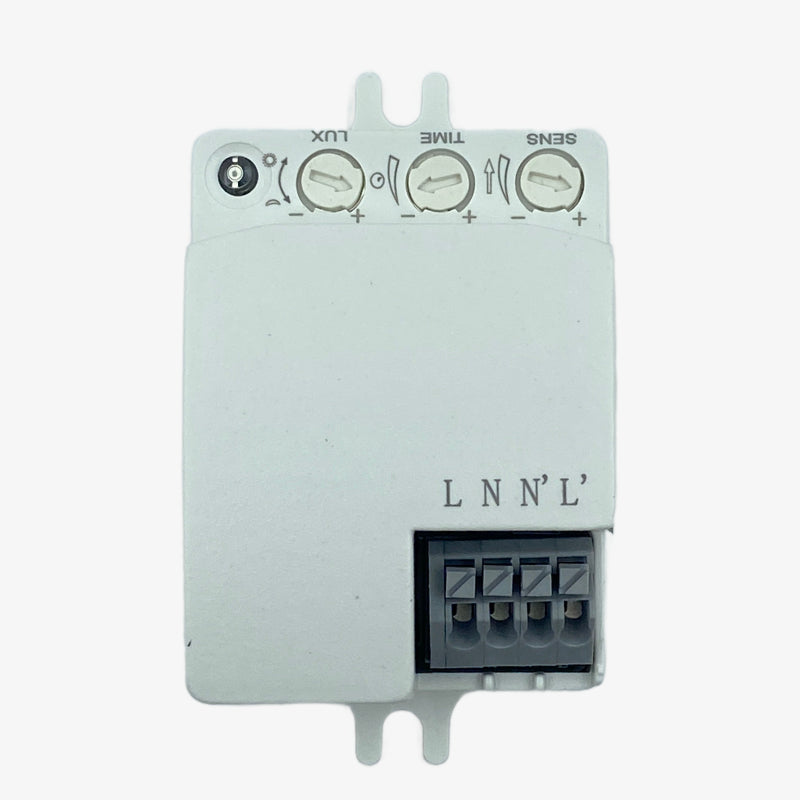

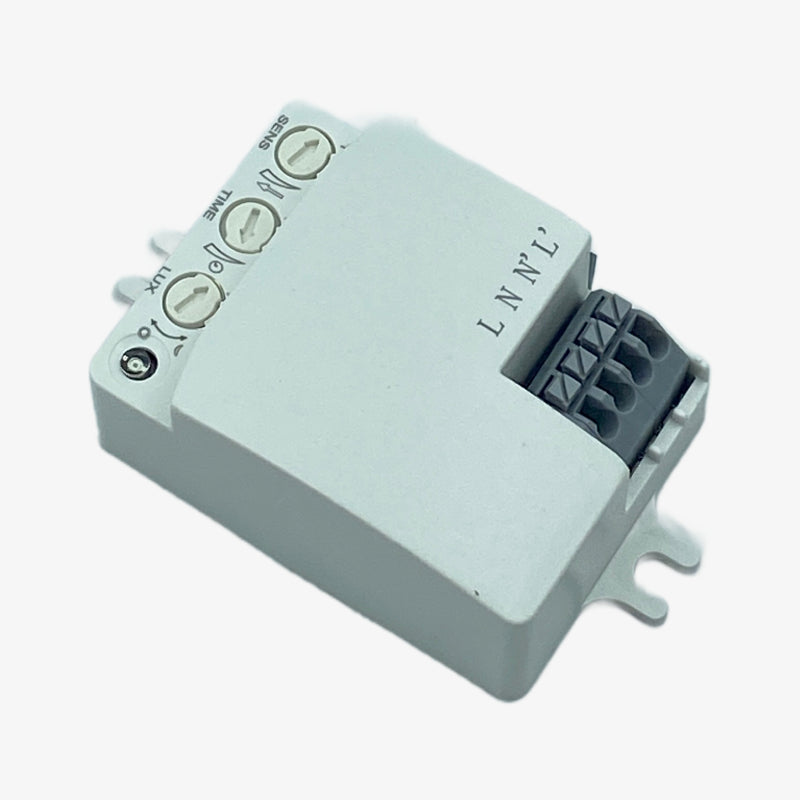

Human Presence Microwave Motion Sensor 5.8 GHz
SKU:
MOD-QC3710
Availability:
15
In Stock
- Rs. 585.00
- Rs. 585.00
- Unit price
- per
Subtotal:
Rs. 585.00
Description
xThe Human Presence Microwave Motion Sensor 5.8 GHz is an energy-saving automatic motion switch that uses microwave radar technology to detect human movement. It offers reliable sensing even through thin walls, glass, or doors and automatically turns ON the connected load. Adjustable lux and sensitivity controls let you set day/night operation and detection range as per your requirement.
Features:
- Microwave sensing technology (5.8GHz radar).
- Works through glass / thin walls / doors.
- Lux adjustable for day or night mode.
- Time delay adjustable for auto switch OFF.
- Suitable for lights and appliances.
Specifications:
- Power Source: 220-240V AC
- Power Frequency: 50/60 Hz
- Ambient Light: <3-2000 LUX adjustable
- HF System: 5.8 GHz CW radar ISM band
- Time Delay: 10 seconds to 12 minutes adjustable
- Rated Load: 1200W (Incandescent) / 300W (Energy saving lamps)
- Detection Range: 360° / 180°
- Detection Distance: 5-15m wall adjustable / 1-8m ceiling radius adjustable
- Transmission Power: <0.2 mW
- Installing Height: wall 1.5-3.5 m / ceiling 2-8 m
- Power Consumption: approx. 0.9W
- Detection Motion Speed: 0.6 - 1.5 m/s
Package Includes:
1 × 5.8 GHz Human Presence Microwave Motion Sensor Module
