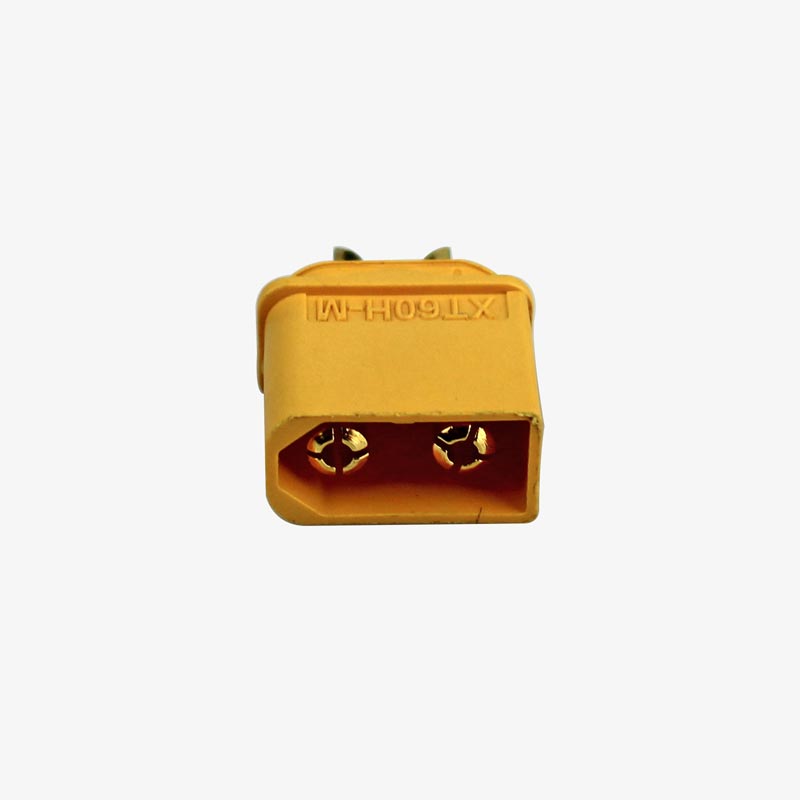

XT60H Male Connector with Housing
XT60H Male Connector

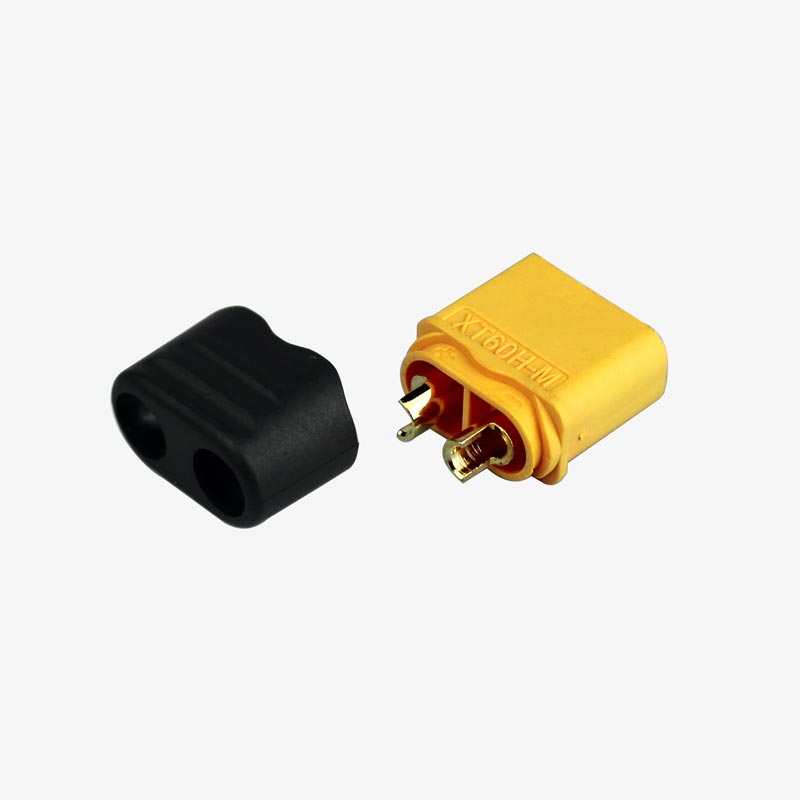

High Quality XT60H Male Connector with Housing

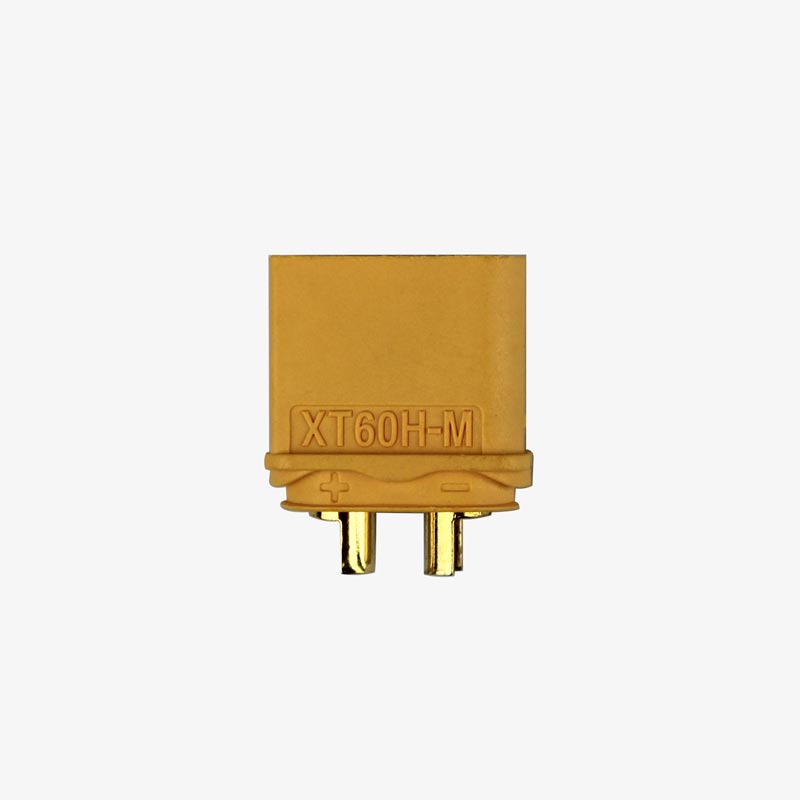

High Quality XT60H Male Connector
Click to zoom in
  • Free Shipping

    On prepaid orders above INR 500

  • Cash On Delivery

    COD available for orders above INR 500

  • 3-5 Days Delivery

    Shipped within 24 hrs

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

High Quality XT60H Male Connector with Housing

92 In stock
Rs. 38.00 (Exc. GST)
Rs. 38.00

The XT60H Connectors are built for high current (upto 60A), high temperature applications like EV battery pack, RC cars, Drones etc where high current is involved. The gold plated spring connectors are injected molded into a nylon casing making the construction very robust. This enables the connector to be plugged and un-plugged often without damaging the terminals. Both the Male and the Female connector have Positive and Negative markings on them.

The change in design has made it shorter and lighter and far more user-friendly for connection and disconnection with an improved integrated grip area as well as tight locking Housing with different color provide the protection to the soldered points and make this connector little fancy and that’s why H letter is added in XT60.

The XT60H is completely compatible with original XT60 connectors so you can use them straight away.

These are the original Nylon XT90 plugs, can handle over 90A current for extended periods without exceeding 80DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT90 plugs.


  • Electric Vehicle Battery pack connectors
  • Solar battery terminal connectors
  • RC battery connectors
  • Drone or multi-copter battery connectors


  • Able to sustain 60A+ continuous current.
  • Housing shape provides protection against shorting and reverse polarity.
  • Can accept up to 8AWG wires.
  • Semicircular solder terminals make it easy to install wires.


Rated Operating Voltage (VDC)


Contact Material


Current Handling Capacity (A)


Allowed Wire Size (AWG)

14 ~ 12

Contact Plating


Operating Temperature Range (°C)

-20 to 120

Plug Type

5mm gold bullet connector in nylon shroud



No. of Contact Points


Connector Type


Metal Connector Size (mm)



Yellow - Black


Package Includes:

1 Pc of XT60H Male Connector with Housing
