High Quality Gold Plated XT90 Male Bullet Connector
High Quality Gold Plated XT90 Male Bullet Connector with Housing

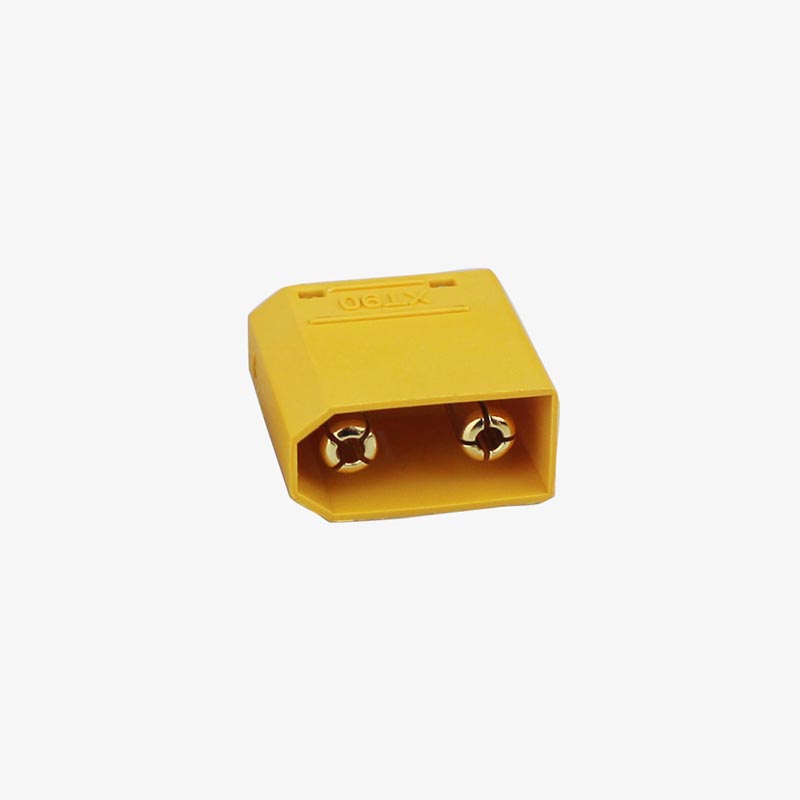

XT90 Male Bullet Connector

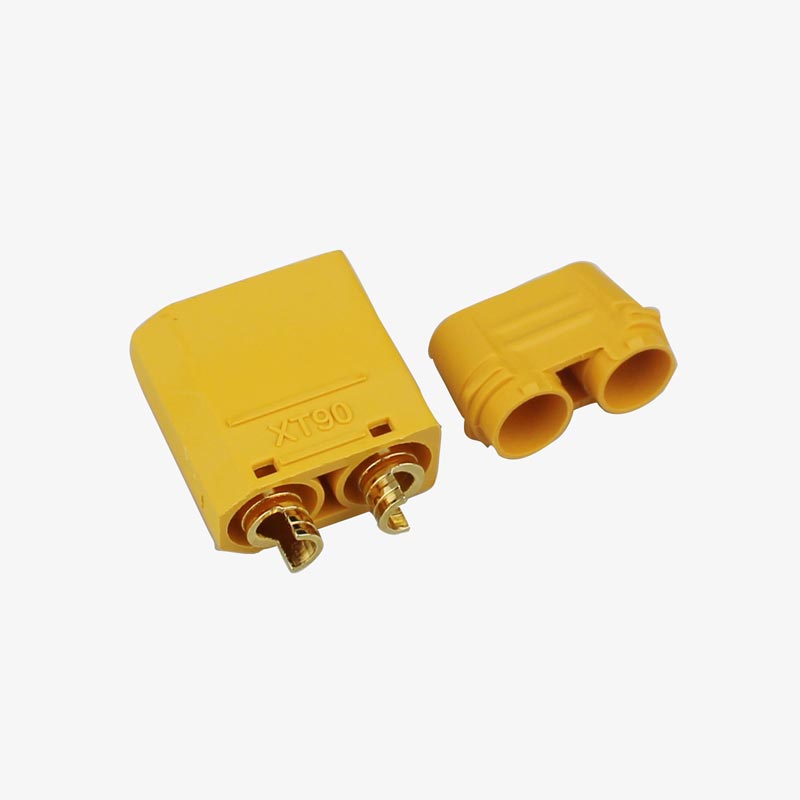

 XT90 Male Bullet Connector with Housing
Click to zoom in
  • Free Shipping

    On prepaid orders above INR 500

  • Cash On Delivery

    COD available for orders above INR 500

  • 3-5 Days Delivery

    Shipped within 24 hrs

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

High Quality Gold Plated XT90 Male Bullet Connector with Housing

QC1515
75 In stock
Rs. 40.00 (Exc. GST)
Rs. 40.00

The XT90 Connectors are built for high current (upto 90A), high temperature applications like EV battery pack, RC cars, Drones etc where high current is involved. The gold plated spring connectors are injected molded into a nylon casing making the construction very robust. This enables the connector to be plugged and un-plugged often without damaging the terminals. Both the Male and the Female connector have Positive and Negative markings on them.

These connectors offer a tight fit, ensuring a solid connection for minimal resistance. This means that more power gets from your pack to your power system when compared to other plugs currently on the market.

These are the original Nylon XT90 plugs, can handle over 90A current for extended periods without exceeding 80DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT90 plugs.

Applications:

  • Electric Vehicle Battery pack connectors
  • Solar battery terminal connectors
  • RC battery connectors
  • Drone or multi-copter battery connectors

Features:

  • Able to sustain 90A+ continuous current.
  • Housing shape provides protection against shorting and reverse polarity.
  • Can accept up to 8AWG wires.
  • Semicircular solder terminals make it easy to install wires.

Specifications:

Rated Operating Voltage (VDC)

500

Contact Material

Brass

Current Handling Capacity (A)

90

Allowed Wire Size (AWG)

14 ~ 12

Contact Plating

Gold

Operating Temperature Range (°C)

-20 to 120

Plug Type

5mm gold bullet connector in nylon shroud

Gender

Male

No. of Contact Points

2

Connector Type

XT90

Metal Connector Size (mm)

4.5

Color

Yellow



Package Includes:

1 Pc of XT90 Male Connector with Housing
