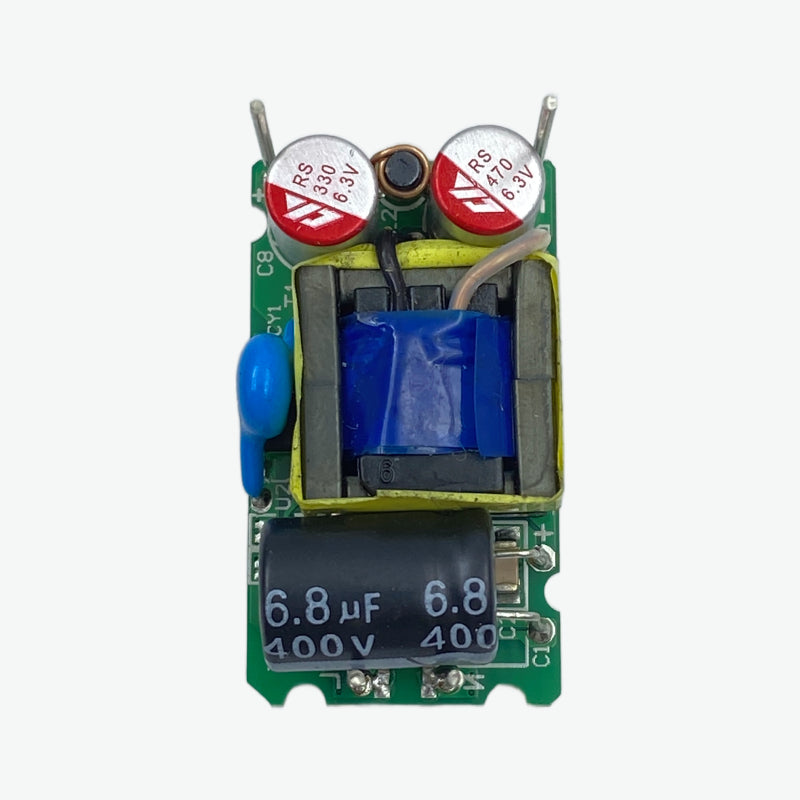

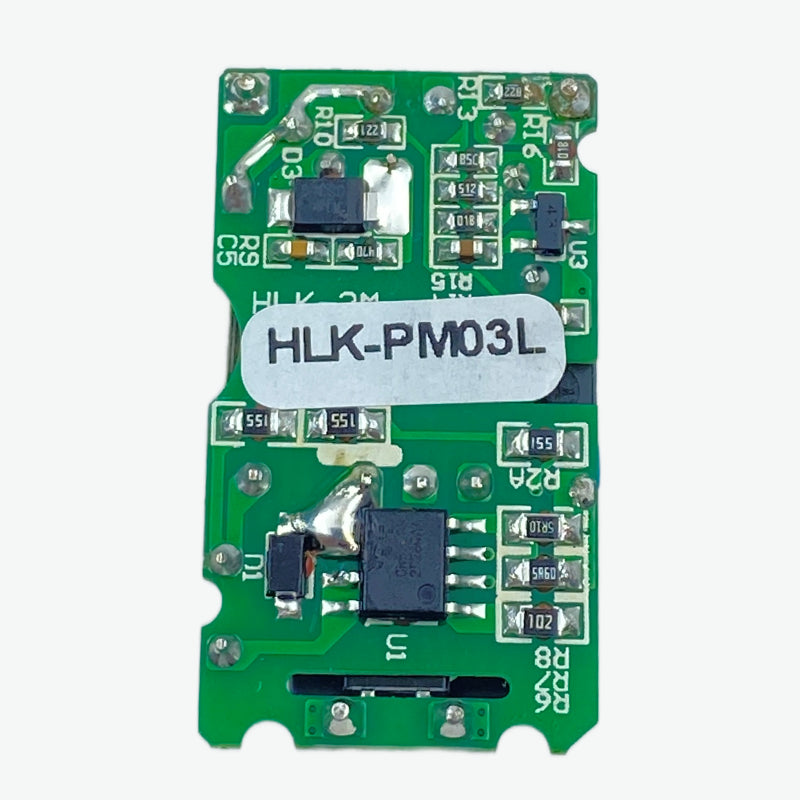

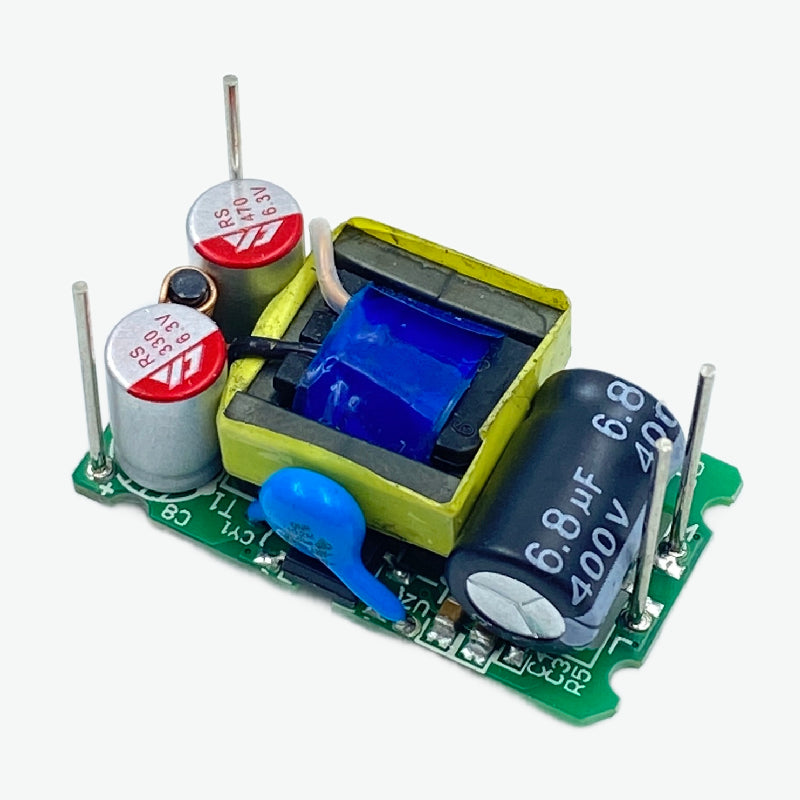

Hi-Link 3.3V 3W Open Frame SMPS Module - AC to DC Converter (HLK PM03L)
SKU:
MOD-QC5639
Availability:
50
In Stock
-
Rs. 198.00- Rs. 178.00
- Unit price
- per
Subtotal:
Rs. 178.00
Description
xHi-Link HLK-PM03L 3.3V 3W Open Frame SMPS Module AC to DC Converter is designed for stable 3.3V output with high efficiency. Compact open-frame AC-DC power module Ideal for embedded systems and space-constrained applications.
Features:
- Ultra-Compact Open Frame Design
- Wide Input Voltage Range (90–265V AC)
- Stable 3.3V Output
- Low Ripple and Low Noise
- Overload and Short Circuit Protection
- High Efficiency and Power Density
- Meets UL, CE, EMC Standards
- Low No-Load Power Consumption (<0.1W)
- 100% Load Aging and Tested
Specifications:
| Parameter | Value |
|---|---|
| Brand | Hi-Link |
| Model | HLK-PM03L |
| Product Type | Open Frame Power Module |
| Input Voltage | 100 – 240V AC |
| Frequency | 50 – 60Hz |
| Output Voltage | 3.3V |
| Output Power | 3W |
| Peak Current | 1000mA |
| Max Input Current | 0.2A |
| Efficiency | 70% |
If you're exploring similar compact AC-DC power solutions, you can also check out the Hi-Link 3.3V 5W Power Supply Module (HLK-5M03) for low-voltage applications, the Hi-Link 5V 2W Power Supply Module (HLK-2M05) for small embedded projects, the Hi-Link 12V 5W Power Supply Module (HLK-5M12) for standard electronics setups, and the Hi-Link 24V 5W Power Supply Module (HLK-5M24) for higher voltage requirements, all offering reliable and efficient power conversion for a wide range of applications.
Package Includes:
1 x Hi-Link HLK-PM03L 3.3V 3W Open Frame SMPS Module AC to DC Converter
