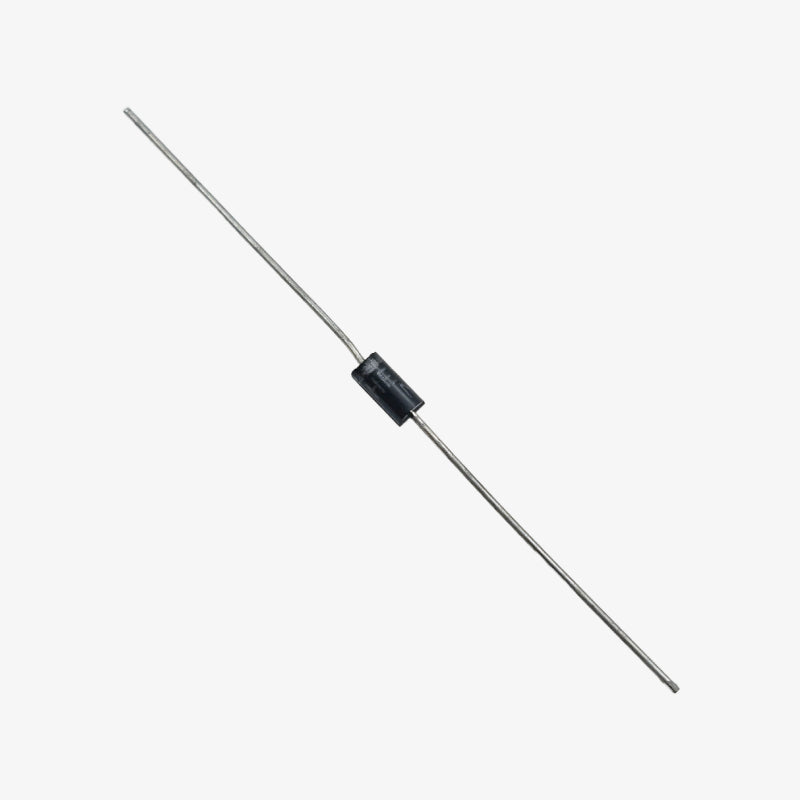

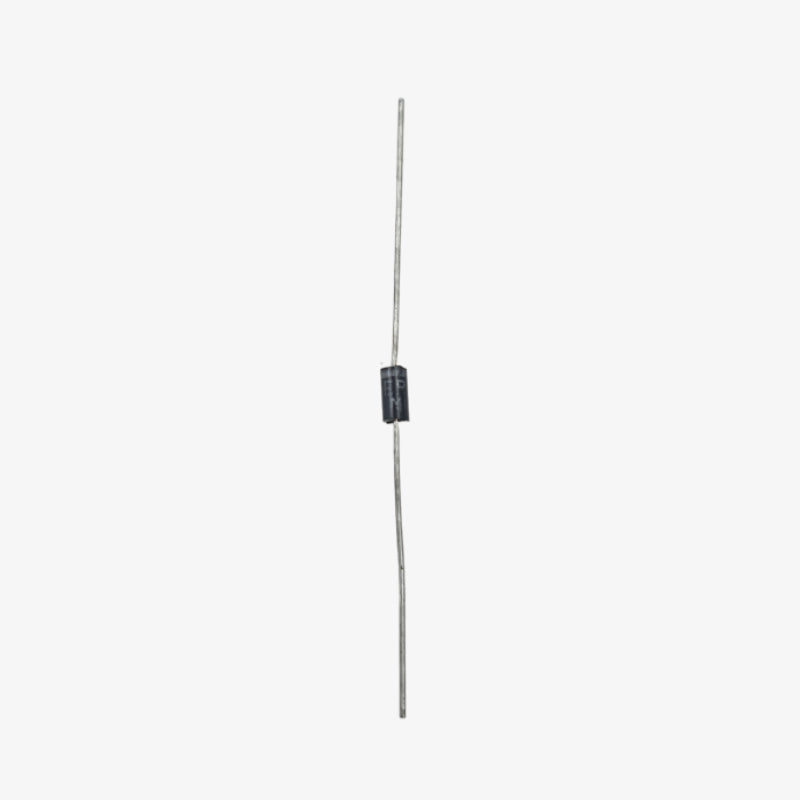

HER108 Ultra Fast Rectifier Diode 1A

Brand: TRR
SKU: CMP-QC3726
Availability: 4696 In Stock
Rs. 3.00
Subtotal: Rs. 3.00
Description
Description
x

The HER108 Ultra Fast Rectifier Diode 1A is designed for efficient AC to DC rectification in fast-switching applications. Its molded DO-41 body ensures reliable operation under high-speed load conditions. Ideal for power supplies, inverters, converters, and freewheeling circuits.

CLICK HERE FOR DATASHEET

Features:

  1. Low forward voltage drop for efficient operation
  2. High current capability for demanding loads
  3. High surge current tolerance with reliable construction
  4. Fast switching for high-efficiency rectification

Specifications:

  • Maximum Repetitive Peak Reverse Voltage (VRRM): 1000 V
  • Maximum RMS Voltage (VRMS): 700 V
  • Maximum DC Blocking Voltage (VDC): 1000 V
  • Maximum Average Forward Rectified Current (IF(AV)): 1.0 A
  • Peak Forward Surge Current (IFSM): 30 A
  • Forward Voltage (VF) at 1 A: 1.85 V
  • Peak Reverse Current (IR) at 25°C: 5 µA
  • Peak Reverse Current (IR) at 100°C: 150 µA
  • Reverse Recovery Time (trr): 70 ns
  • Typical Junction Capacitance (CJ): 20 pF
  • Operating Temperature Range (TJ): -65°C to +125°C
  • Storage Temperature Range (TSTG): -65°C to +125°C

Package Includes:

1 × HER108 Ultra Fast Rectifier Diode 1A
