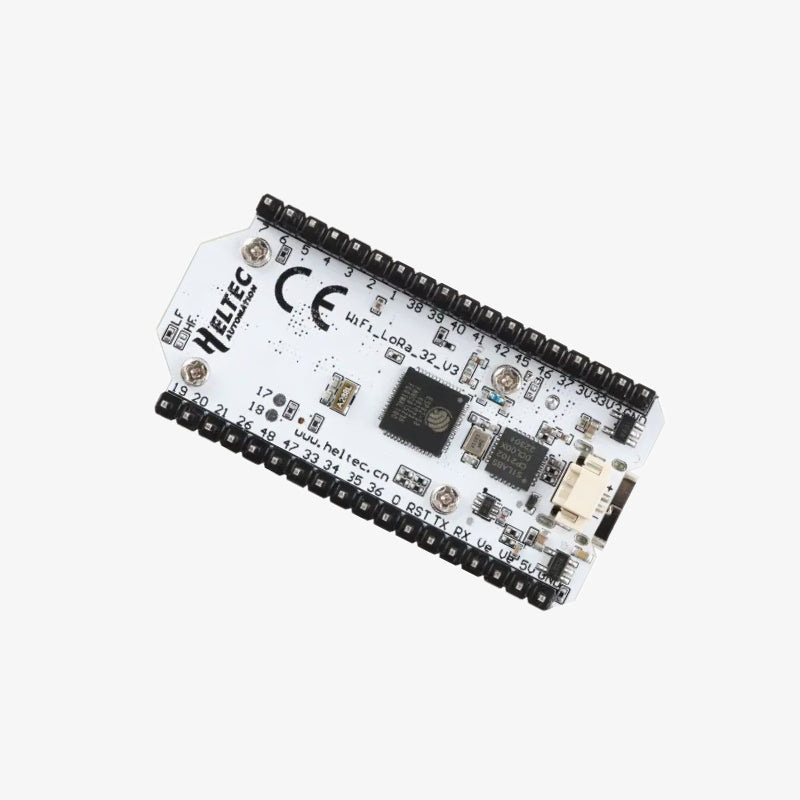

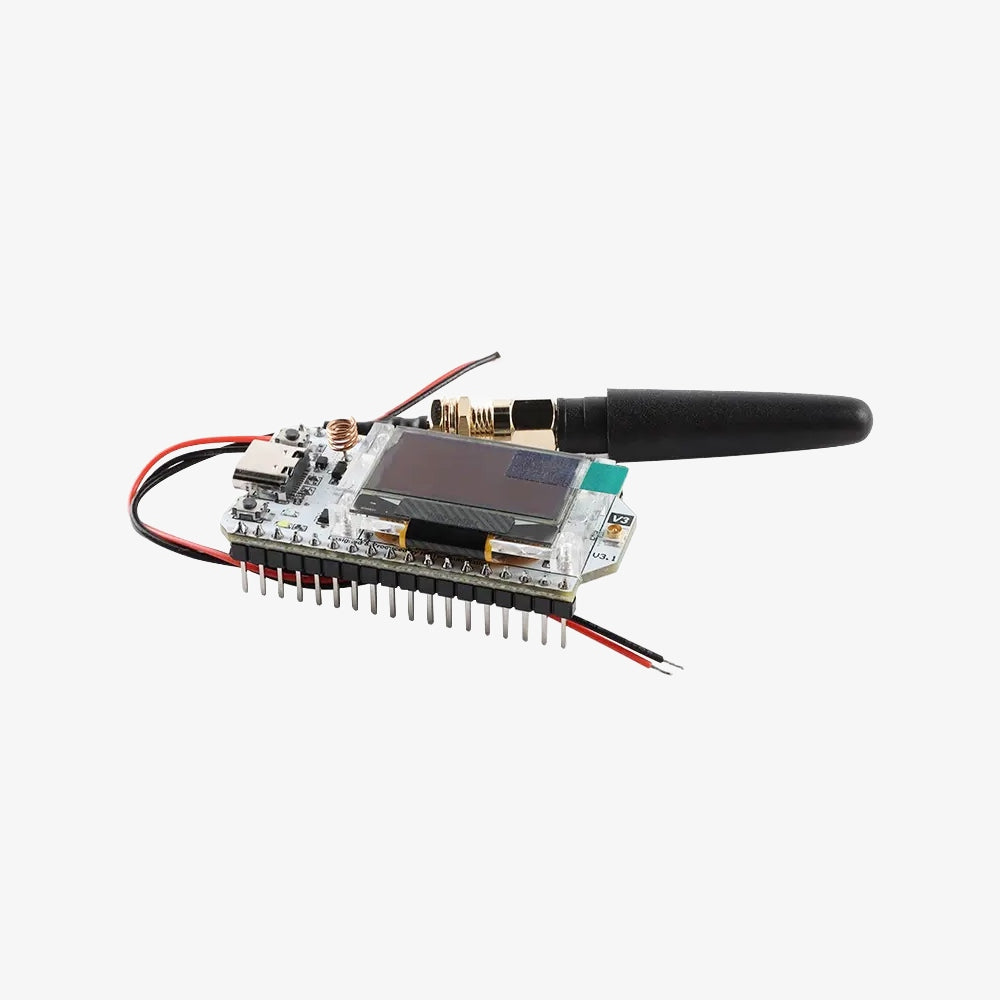

The WIFI Kit series from Heltec Automation is a cost-effective networking solution featuring the Lexin ESP32 chip. It comes equipped with a Tensilica LX6 dual-core processor clocked at 240MHz, delivering computing power up to 600DMIPS. The chip includes 520 KB SRAM, an 802.11 b/g/n HT40 Wi-Fi transceiver, baseband, protocol stack, and LWIP. Additionally, it supports dual-mode Bluetooth (classic and BLE). Enhanced with the SX1262 chip, this board supports LoRa communication at 863/928MHz frequency, offering high sensitivity (-139dBm) and a power output of +20 dBm, ensuring reliable long-distance transmission up to 2.8km in open areas.

The board integrates 32MByte Flash, a Wi-Fi antenna, a 0.96-inch blue OLED display, a lithium battery charging circuit and interface, and a CP2102 USB to serial chip. It is fully compatible with the Arduino development environment, allowing for easy and rapid program verification and product development.
Note: The appearance or design of the antenna may vary from the image shown here.
|
Item Type |
Bluetooth Module, Dev. Board |
|
Based On |
ESP32 |
|
Chipset |
SX1262 and ESP32 |
|
Display |
0.96-inch Blue OLED |
|
Operating Voltage (V) |
3.3V to 7V |
|
Operating Temperature (°C) |
-40°C to +90°C |
|
Connector Type |
Ipex |
|
Maximum Power (W) |
10W |
|
Receiver Sensitivity |
up to –139 dBm |
|
Data Rate |
150 Mbps @ 11n HT40, 72 Mbps @ 11n HT20, 54 Mbps @ 11g, 11 Mbps @ 11b |
|
Transmit Power (dBm) |
19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n |
|
Frequency Range |
863-928MHz |
|
Gain |
3dBi |

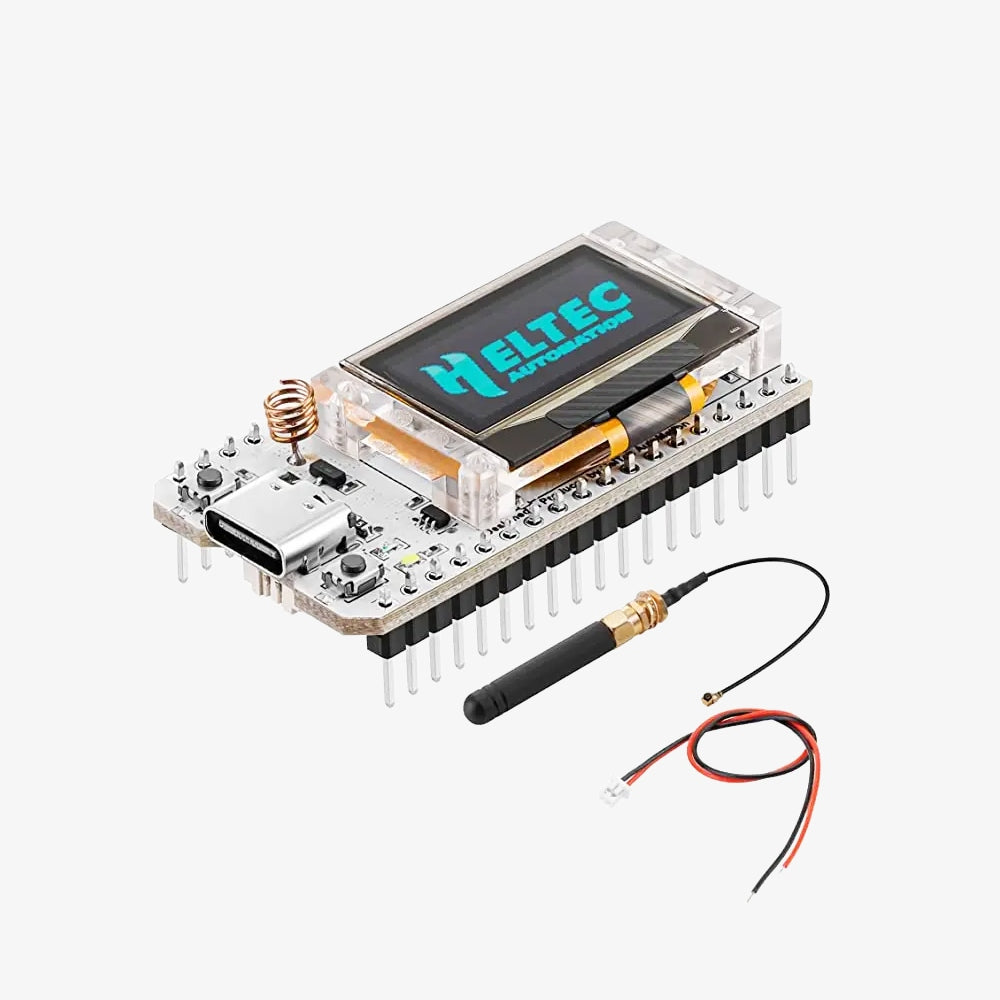

1 x ESP32 LoRa SX1262 0.96 Inch Blue OLED Display BT WiFi Module
1 x Antenna
2 x 1*18 Pins Burg connectors(Straight)
