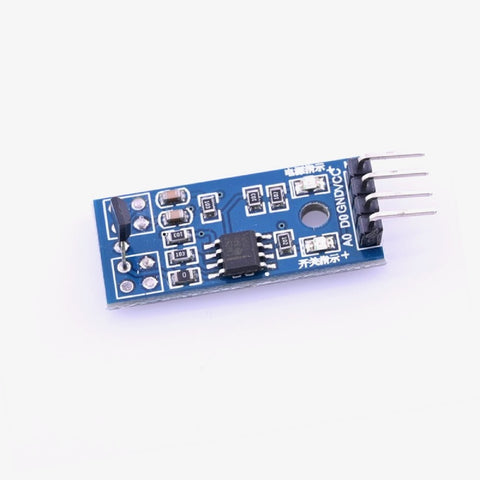

Hall Effect Sensor Module is used to Detect the proximity of a magnetic field if it present or absent nearby. The A3144 hall sensor module is a small size module. When the magnetic field rises above a threshold level, the open-collector output transistor switches on, which pulls the logic-compatible output low and illuminates the on board LED indicator.

A3144 Hall Effect Sensor Module Specification:

  • Operating voltage range: 4.5 - 24 volts
  • Minimum hysteresis: 20 Gauss
  • Turn-on threshold: 35-450 Gauss
  • Sensor: A3144 Hall Effect Sensor

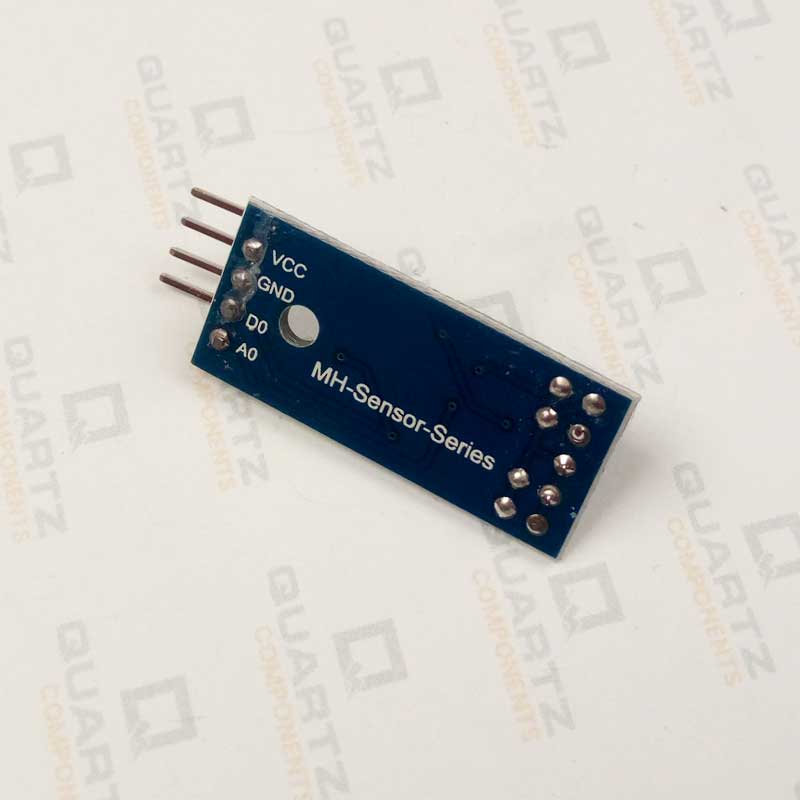

Module Pinouts:

  • PIN 1: GND
  • PIN 2: +5V
  • PIN 3: DOUT
  • PIN 3: AOUT

Hall Effect Sensor Module is used to Detect the proximity of a magnetic field if it present or absent nearby. The A3144 hall sensor module is a small size module. When the magnetic field rises above a threshold level, the open-collector output transistor switches on, which pulls the logic-compatible output low and illuminates the on board LED indicator.

A3144 Hall Effect Sensor Module Specification:

  • Operating voltage range: 4.5 - 24 volts
  • Minimum hysteresis: 20 Gauss
  • Turn-on threshold: 35-450 Gauss
  • Sensor: A3144 Hall Effect Sensor

Module Pinouts:

  • PIN 1: GND
  • PIN 2: +5V
  • PIN 3: DOUT
  • PIN 3: AOUT
