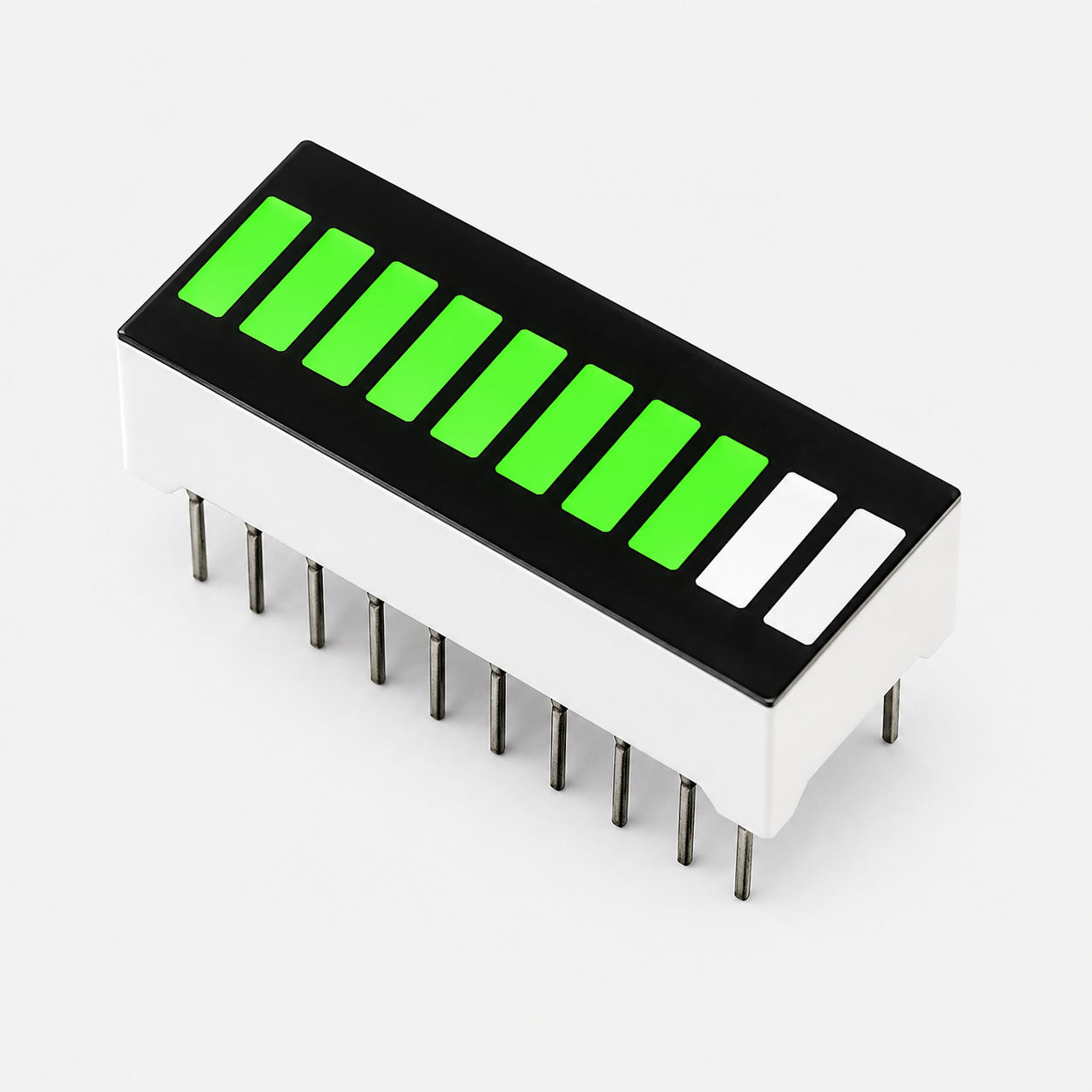

Green 10 Segment LED Display

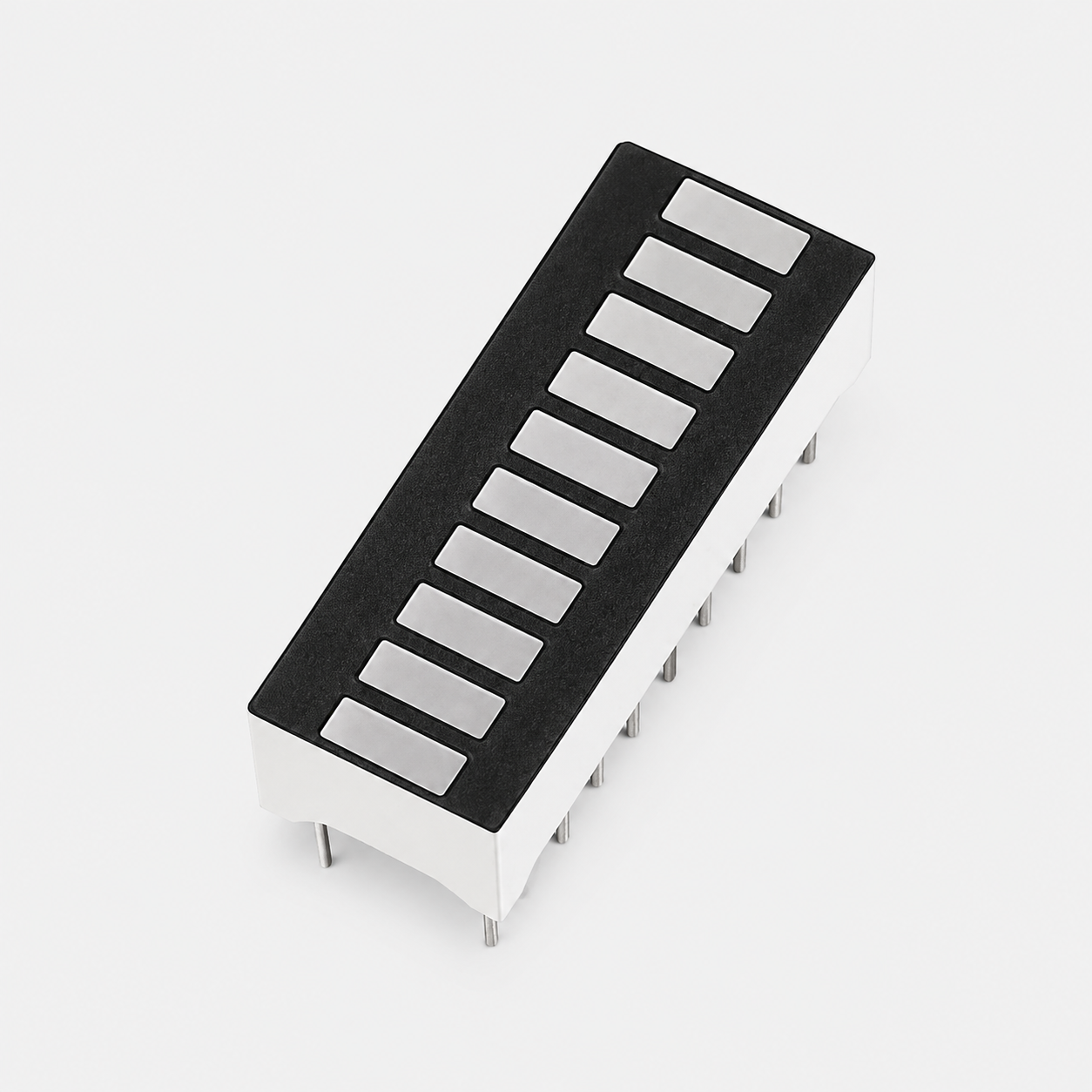

10 Segment LED Display

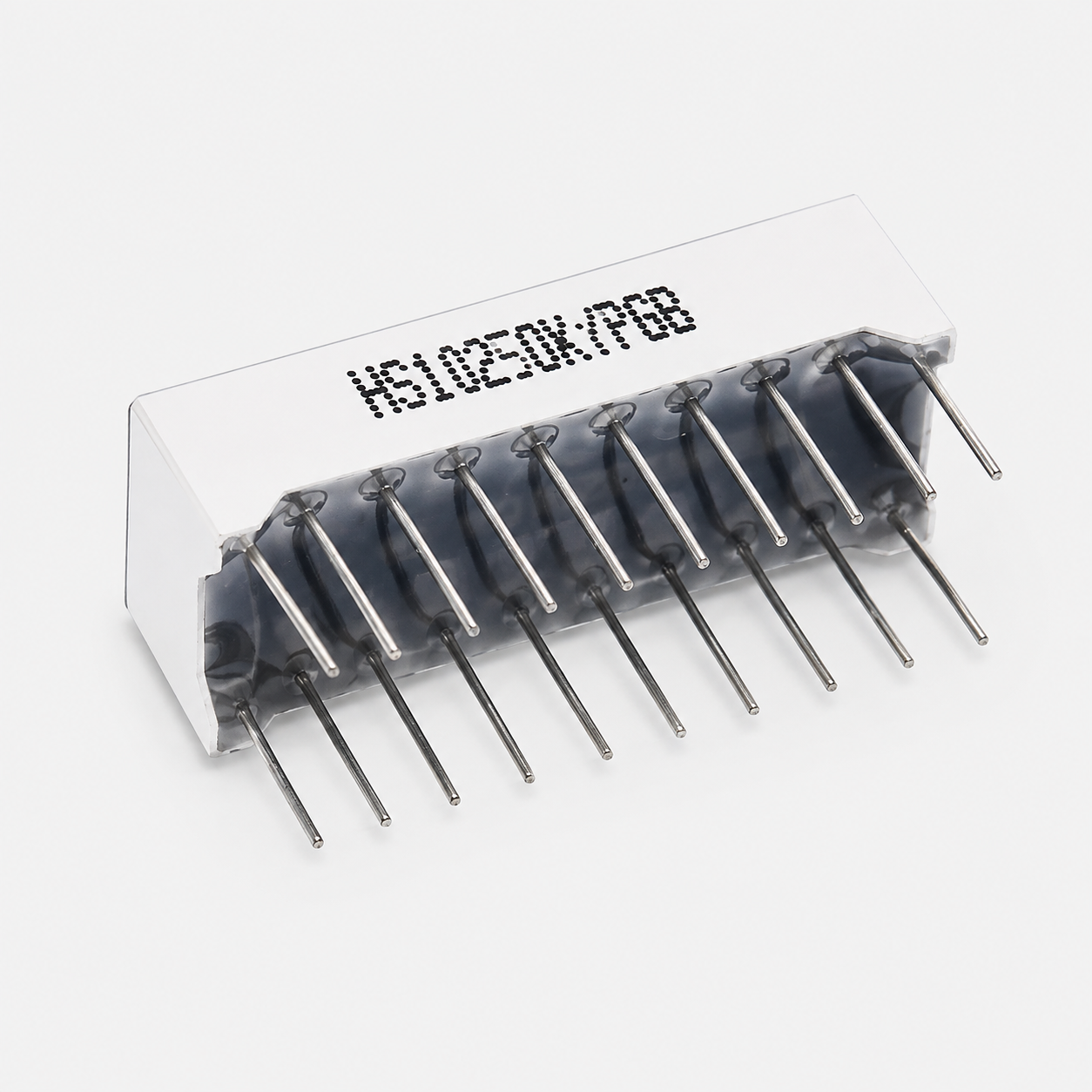

10 Segment LED Display Green
Green 10 Segment LED Display
10 Segment LED Display
10 Segment LED Display Green

Free Shipping

Free standard shipping on all orders over INR 500

COD Available

On all the orders above INR 500

Free Returns

*Terms & Conditions Applied

Customer Assistance

Contact Us : 0141-4946677 or support@quartzcomponents.com

Green 10 Segment LED Display

Brand: GENERIC
SKU: MOD-QC6100
Availability: 13 In Stock
Rs. 38.00
Subtotal: Rs. 38.00
Description
Description
x

GreeGreen 10 Segment LED Display is a compact LED bar graph display designed for visual indication of signal levels, voltage, current, battery status, and other analog or digital outputs. Featuring 10 individually addressable green LEDs in a single package, it provides high brightness, low power consumption, and easy integration into electronic circuits. It is widely used in audio equipment, test instruments, battery level indicators, industrial control systems, and DIY electronics projects.

Features:

  1. 10 individually controllable green LED segments.
  2. High brightness for clear visual indication.
  3. Low power consumption and long operating life.
  4. Compact single-package bar graph design.
  5. Suitable for analog and digital level indication.
  6. Uniform light output across all segments.
  7. Easy PCB mounting with through-hole pins.
  8. Compatible with microcontrollers and driver ICs.
  9. Fast response with stable performance.
  10. Ideal for battery indicators, VU meters, instrumentation, and DIY electronics.

Specifications:

Parameter Value
Product Type LED Bar Graph Display
Number of Segments 10
LED Color Green
Display Type Linear Bar Graph
Mounting Type Through Hole (DIP)
Lens Type Diffused
Forward Voltage 2.0V – 2.2V (Per LED)
Forward Current 20mA (Max. Per Segment)
Peak Forward Current 100mA
Luminous Intensity 8–20mcd (Typical)
Viewing Angle 60°
Power Dissipation 75mW Per Segment
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +100°C
Applications Battery Level Indicators, Audio VU Meters, Signal Level Indicators, Test Equipment, Industrial Control Panels, Embedded Systems, DIY Electronics


Also Check These Out:

0.56 Inch 2 Digit 7-Segment LED Display CC - 18 Pin

7 Segment Display (Common Anode) - Red - 0.56 inch

TM1637 4-Digit Seven Segment Led Display Module

Package Includes:

1 × Green 10 Segment LED Display
