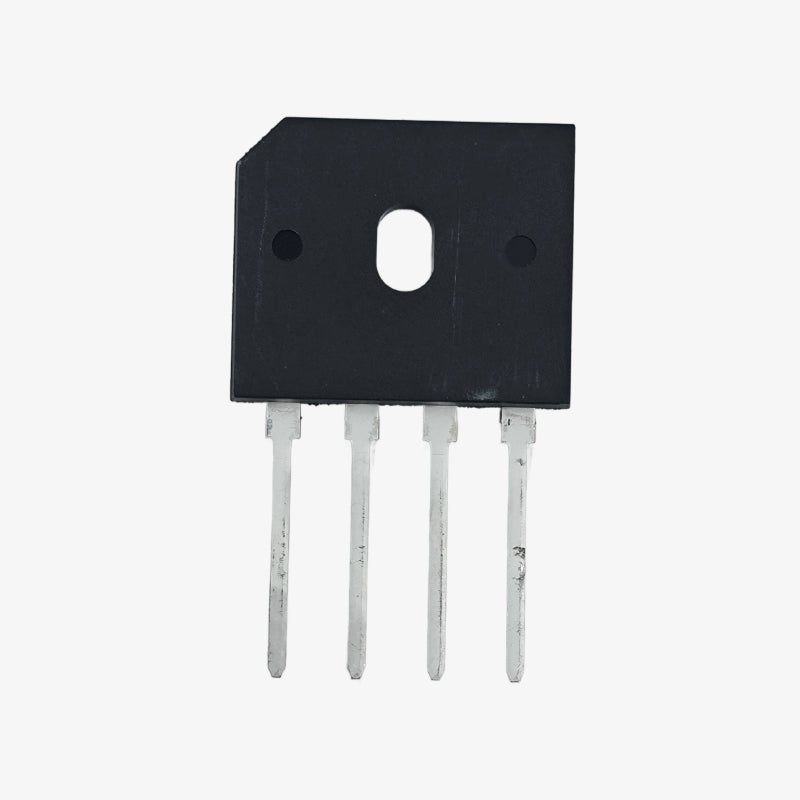

GBU2510 25A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package
SKU:
CMP-QC3768
Availability:
887
In Stock
- Rs. 28.00
- Rs. 28.00
- Unit price
- per
Subtotal:
Rs. 28.00
Description
xThe GBU2510 Bridge Rectifier 25A is a heavy-duty through-hole rectifier engineered for high-current AC to DC conversion. Featuring a glass-passivated die and thermally efficient molded case, it ensures stable performance under demanding loads. Ideal for industrial power supplies, UPS systems, and inverter applications.
Features:
- High forward current capability up to 25A
- Exceptional surge tolerance up to 350A
- Glass-passivated die construction for superior reliability
- 94V-0 flame-rated plastic body for safety
- Versatile mounting and polarity marking for easy installation
Specifications:
- Average Forward Current (IF(AV)): 25A
- Peak Repetitive Reverse Voltage (VRRM): 1000V
- Working Peak Reverse Voltage (VRWM): 1000V
- DC Blocking Voltage (VR): 1000V
- RMS Reverse Voltage (VR(RMS)): 700V
- Peak Forward Surge Current (IFSM): 350A (8.3ms half-sine wave)
- Forward Voltage (VF): 1.1V at IF = 1.0A
- Reverse Current (IR) at 25°C: 10µA
- Reverse Current (IR) at 125°C: 500µA
- Typical Junction Capacitance (Cj): 70pF
- Thermal Resistance (RθJA / RθJL): 21°C/W / 4°C/W
- Operating Junction Temperature (TJ): -65°C to +150°C
- Storage Temperature (TSTG): -65°C to +150°C
Package Includes:
1 × GBU2510 25A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package
