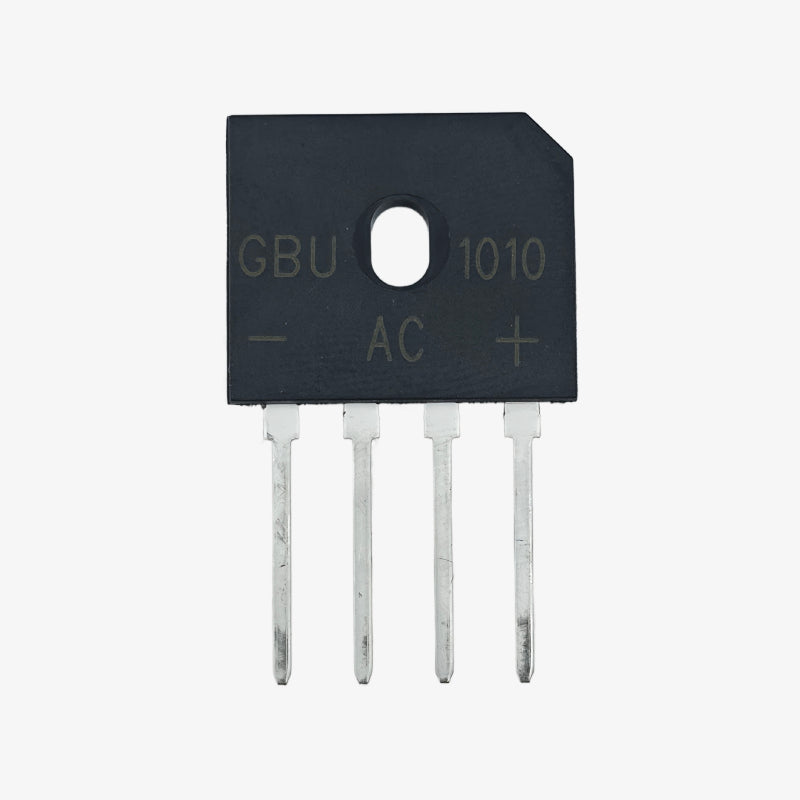

GBU1010 10A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package
SKU:
CMP-QC3767
Availability:
972
In Stock
- Rs. 24.00
- Rs. 24.00
- Unit price
- per
Subtotal:
Rs. 24.00
Description
xThe GBU1010 Bridge Rectifier is a robust through-hole rectifier designed for AC to DC conversion in medium to high-power circuits. Its glass-passivated die and solid molded case ensure strong surge handling and thermal durability. Perfect for power supplies, converters, and motor control circuits needing reliable rectification.
Features:
- Low forward voltage drop for better efficiency
- High surge current capability up to 220A
- Glass-passivated die for long-term reliability
- UL94V-0 flame-retardant molded plastic body
- Leaded design suitable for any mounting position
Specifications:
- Average Forward Current (IF(AV)): 10A
- Peak Repetitive Reverse Voltage (VRRM): 1000V
- Working Peak Reverse Voltage (VRWM): 1000V
- DC Blocking Voltage (VR): 1000V
- RMS Reverse Voltage (VR(RMS)): 700V
- Peak Forward Surge Current (IFSM): 220A (8.3ms half-sine wave)
- Forward Voltage (VF): 1.1V at IF = 1.0A
- Reverse Current (IR)at 25°C: 10µA
- Reverse Current (IR)at 125°C: 500µA
- Typical Junction Capacitance (Cj): 70pF
- Thermal Resistance (RθJA / RθJL): 20°C/W / 4°C/W
- Operating Junction Temperature (TJ): -65°C to +150°C
- Storage Temperature (TSTG): -65°C to +150°C
Package Includes:
1 × GBU1010 10A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package
